LIGHTING (EXT)  AUTOMATIC LIGHT CONTROL SENSOR  REMOVAL


CAUTION / NOTICE / HINT

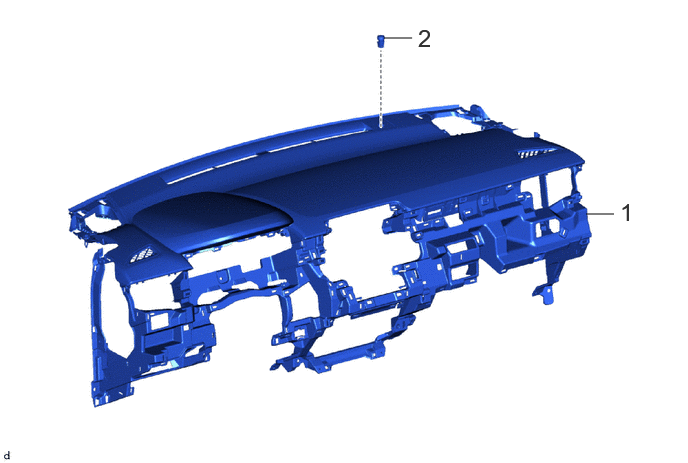

COMPONENTS (REMOVAL)
E475977N01
6.104,2.229 6.396,2.229 false 4,0.396 4.292,0.396 false 4.354,0.25 4.635,0.604 0.281,0.354 18 false 2 6.458,2.063 6.74,2.417 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 INSTRUMENT PANEL SAFETY PAD ASSEMBLY 55400 - - -
2 AUTOMATIC LIGHT CONTROL SENSOR 89120A - - -

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 89120A 2.REMOVE AUTOMATIC LIGHT CONTROL SENSOR

a.
E472725
