RM38T0EC _59 Vehicle Exterior _112294 LIGHTING (EXT) _0501113 SWITCH HOUSING A

LIGHTING (EXT)  SWITCH HOUSING  REMOVAL


CAUTION / NOTICE / HINT

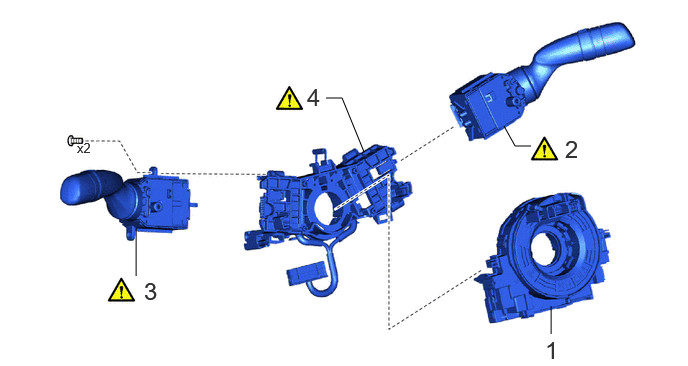

COMPONENTS (REMOVAL)
E462852N02
5.25,1.313 5.365,1.521 5.365,1.521 5.531,1.521 false 3.396,1.021 3.563,1.021 3.563,1.021 3.792,1.583 false 1.417,2.375 1.417,2.875 false 5.74,3.188 5.74,3.479 false 5.885,1.406 6.167,1.76 0.281,0.354 18 false 2 3.198,0.865 3.479,1.219 0.281,0.354 18 false 4 1.5,2.885 1.781,3.24 0.281,0.354 18 false 3 5.677,3.5 5.896,3.792 0.219,0.292 18 false 1 0.802,1.458 1.052,1.656 0.25,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SPIRAL CABLE SUB-ASSEMBLY 84306 - - -
2 WINDSHIELD WIPER SWITCH ASSEMBLY 84650 (Click here) - -
3 TURN SIGNAL SWITCH 84329 (Click here) - -
4 STEERING WHEEL SWITCH HOUSING 84319 (Click here) - -

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 84650 2.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Hide 84329 3.REMOVE TURN SIGNAL SWITCH

Hide 84319 4.REMOVE STEERING WHEEL SWITCH HOUSING

a.
E445570C01
0.375,0.01 0.594,0.292 0.219,0.281 18 false i 4.063,0.031 4.281,0.313 0.219,0.281 18 false ii
V113147

Remove in this Direction - -

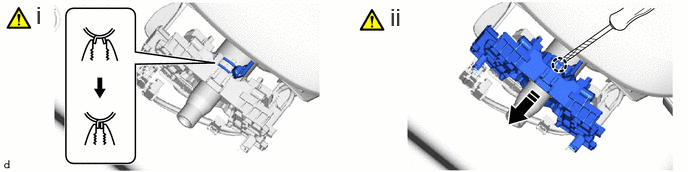

i.

Using pliers, expand the clamp as shown in the illustration.


ii.

While holding the clamp expanded, using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the steering wheel switch housing as shown in the illustration.
