RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510792 REAR DOOR LOCK A

DOOR LOCK  REAR DOOR LOCK  REMOVAL


CAUTION / NOTICE / HINT

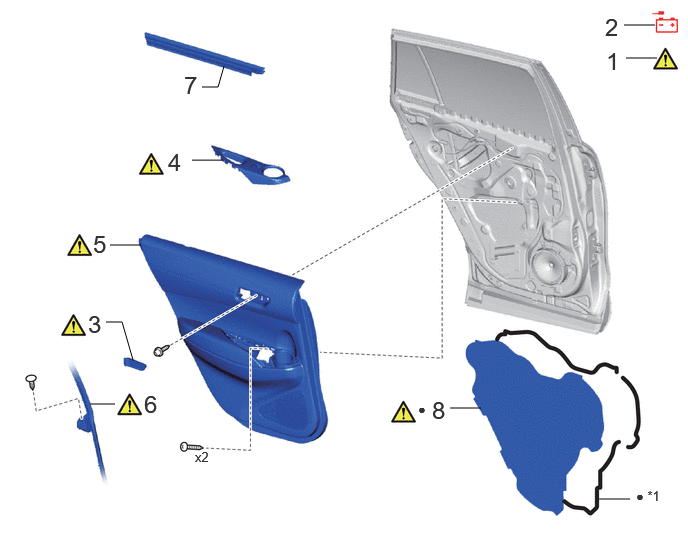

COMPONENTS (REMOVAL)
B642743N01
6.5,0.26 6.823,0.26 false 1.104,3.354 1.271,3.354 1.271,3.354 1.385,3.75 false 2,1.667 2.323,1.667 false 1.146,2.552 1.469,2.552 false 0.938,4.208 1.198,4.208 false 6.521,0.604 6.844,0.604 false 4.688,4.25 5.01,4.25 false 6.24,5.198 6.563,5.198 false 2.104,0.906 2.271,0.906 2.271,0.906 2.333,0.688 false 6.302,0.135 6.583,0.49 0.281,0.354 18 false 2 4.5,4.125 4.781,4.479 0.281,0.354 18 false 8 1.5,4.063 1.781,4.417 0.281,0.354 18 false 6 1.917,0.74 2.198,1.094 0.281,0.354 18 false 7 1.75,1.542 2.031,1.896 0.281,0.354 18 false 4 0.969,2.396 1.25,2.75 0.281,0.354 18 false 5 0.917,3.229 1.198,3.583 0.281,0.354 18 false 3 6.313,0.49 6.594,0.844 0.281,0.354 18 false 1 4.354,4.177 4.51,4.375 0.156,0.198 10 false ● 2.031,4.677 2.313,5.031 0.281,0.354 10 false x2 6.625,5.083 7.125,5.323 0.5,0.24 10 false ● *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 REAR DOOR INSIDE HANDLE BEZEL PLUG 69284G (Click here) - -
4 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL - (Click here) - -
5 REAR DOOR TRIM BOARD SUB-ASSEMBLY 67604 (Click here) - -
6 REAR DOOR WEATHERSTRIP 67872 (Click here) - -
7 REAR DOOR GLASS INNER WEATHERSTRIP 68174A - - -
8 REAR DOOR SERVICE HOLE COVER 67842E (Click here) - -

*1 BUTYL TAPE - -
● Non-reusable part - -

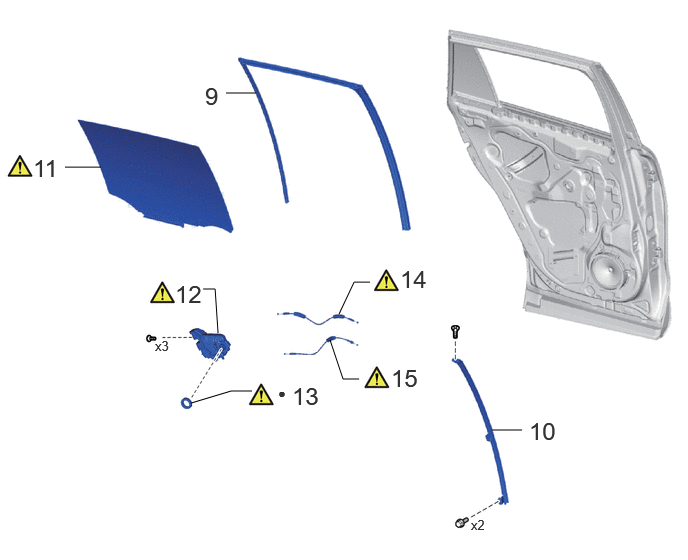

B643102N01
2.354,0.969 2.667,0.969 false 0.677,1.74 1.052,1.74 false 3.531,3.271 3.688,2.938 3.688,2.938 3.854,2.938 false 5.125,4.479 5.438,4.479 false 2.271,3.469 2.24,3.01 2.24,3.01 2.115,3.01 false 3.438,3.542 3.573,3.948 3.573,3.948 3.74,3.948 false 1.99,4.198 2.406,4.073 2.406,4.073 2.625,4.073 false 2.135,0.854 2.583,1.219 0.448,0.365 18 false 9 0.344,1.604 0.708,1.906 0.365,0.302 18 false 11 4.167,2.76 4.531,3.063 0.365,0.302 18 false 14 4.073,3.792 4.438,4.094 0.365,0.302 18 false 15 5.51,4.344 5.875,4.646 0.365,0.302 18 false 10 1.823,2.917 2.188,3.219 0.365,0.302 18 false 12 3.042,3.979 3.406,4.281 0.365,0.302 18 false 13 1.615,3.521 1.865,3.74 0.25,0.219 10 false x3 2.896,4.01 3.083,4.219 0.188,0.208 10 false ● 4.906,5.385 5.156,5.604 0.25,0.219 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

9 REAR DOOR GLASS RUN 68152C - - -
10 REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY 67408H - - -
11 REAR DOOR GLASS SUB-ASSEMBLY 68104 (Click here) - -
12 REAR DOOR LOCK WITH MOTOR ASSEMBLY 69060A (Click here) - -
13 DOOR LOCK WIRING HARNESS SEAL 69318D (Click here) - -
14 OPEN LEVER REAR DOOR LOCK REMOTE CONTROL CABLE 69740E (Click here) - -
15 REAR DOOR LOCK AND UNLOCK KNOB INSIDE LOCKING CABLE 69780E (Click here) - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door lock with motor assembly removal/installation are shown below.

NOTICE:

After the ignition switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

Z101186

CAUTION:
B401522

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

(Click here)


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

(Click here)



Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Z101186

CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




·

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL

·

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL


Hide 69284G 3.REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

Z101186

Click here(Click here)

Hide 4.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Z101186

Click here(Click here)

Hide 67604 5.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Z101186

Click here(Click here)

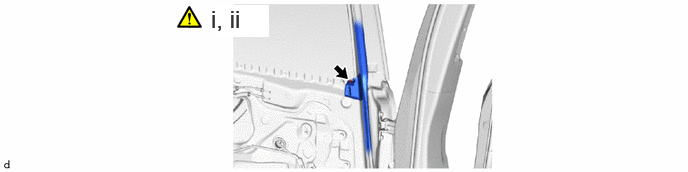

Hide 67872 6.DISCONNECT REAR DOOR WEATHERSTRIP

a.
B632387N01
2.198,0.052 2.802,0.385 0.604,0.333 18 true i, ii

i.

Remove the clip.


ii.

Disconnect the rear door weatherstrip from the area shown in the illustration.



Hide 67842E 8.REMOVE REAR DOOR SERVICE HOLE COVER

Z101186

Click here(Click here)

Hide 68104 11.REMOVE REAR DOOR GLASS SUB-ASSEMBLY

Z101186

Click here(Click here)

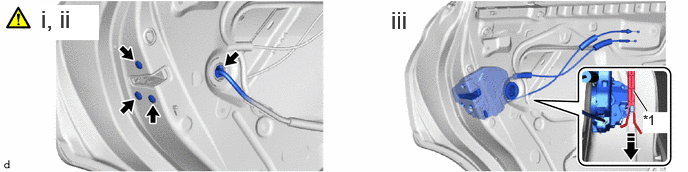

Hide 69060A 12.REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

a.
B631008C01
6.74,1.156 6.604,0.948 true 0.427,0.052 1.031,0.417 0.604,0.365 18 true i, ii 4.073,0.063 4.677,0.427 0.604,0.365 18 false iii 6.698,1.167 6.969,1.385 0.271,0.219 10 true *1
*1 Release Plate - -
V113147

Remove in this direction -


i.

Disconnect the connector from the rear door lock with motor assembly.


ii.

Using a T30 "TORX" socket wrench, remove the 3 screws.


iii.

Disconnect the release plate and remove the rear door lock with motor assemblyl as shown in the illustration.



Hide 69318D 13.REMOVE DOOR LOCK WIRING HARNESS SEAL

Z101186

NOTICE:

When reusing the front door lock with motor assembly.



a.
B643099

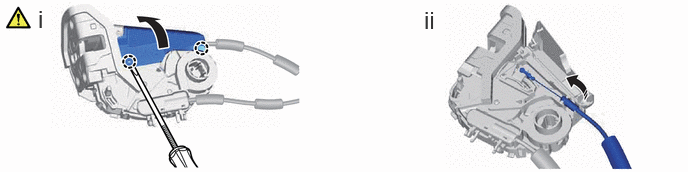

Hide 69740E 14.REMOVE OPEN LEVER REAR DOOR LOCK REMOTE CONTROL CABLE

a.
B643100C01
0.396,0.052 0.677,0.406 0.281,0.354 18 false i 4.417,0.063 4.813,0.469 0.396,0.406 18 false ii
V113147

Remove in this Direction - -


i.

Using a screwdriver with its tip wrapped in protective tape, disengage the claw as shown in the illustration.


ii.

Disengage the guide to remove the open lever rear door lock remote control cable.

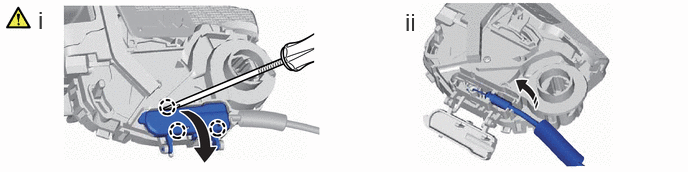

Hide 69780E 15.REMOVE REAR DOOR LOCK AND UNLOCK KNOB INSIDE LOCKING CABLE

a.
B643101C01
0.396,0.063 0.677,0.417 0.281,0.354 18 false i 4.219,0.083 4.615,0.469 0.396,0.385 18 false ii
V113147

Remove in this Direction - -


i.

Using a screwdriver with its tip wrapped in protective tape, disengage the claw as shown in the illustration.


ii.

Disengage the guide to remove the rear door lock and unlock knob inside locking cable.
