RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510791 FRONT DOOR LOCK A

DOOR LOCK FRONT DOOR LOCK REMOVAL

CAUTION / NOTICE / HINT

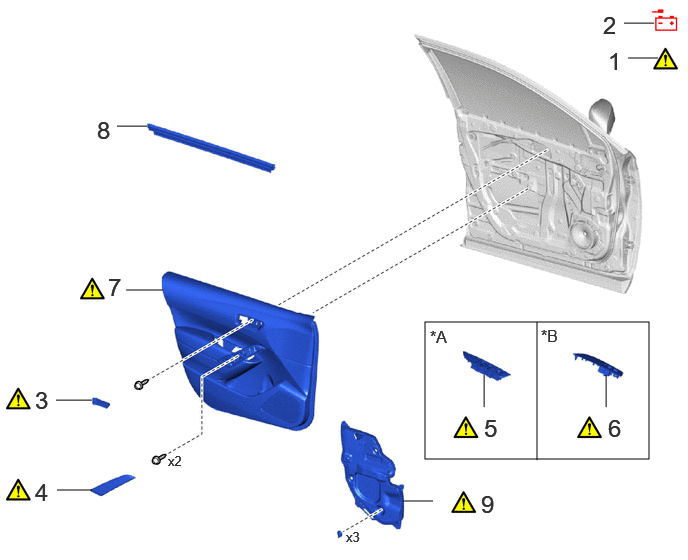

COMPONENTS (REMOVAL)

4.427,3.354 6.76,4.781 2.333,1.427 6.813,0.24 6.5,0.24 false 1.531,1.313 1.219,1.313 false 4.51,5.219 4.198,5.219 false 1.698,3.021 1.313,3.021 false 0.958,4.167 0.583,4.167 false 0.958,5.104 0.594,5.104 false 6.313,3.906 6.313,4.24 false 5.042,3.906 5.042,4.24 false 6.854,0.604 6.542,0.604 false 5.594,3.354 5.594,4.792 false 6.281,0.115 6.563,0.469 0.281,0.354 18 false 2 1.01,1.208 1.292,1.563 0.281,0.354 18 false 8 5.01,5.104 5.292,5.458 0.281,0.354 18 false 9 5.042,4.313 5.323,4.667 0.281,0.354 18 false 5 6.333,4.313 6.615,4.667 0.281,0.354 18 false 6 1.125,2.844 1.406,3.198 0.281,0.354 18 false 7 0.365,4.021 0.646,4.375 0.281,0.354 18 false 3 0.365,4.979 0.646,5.333 0.281,0.354 18 false 4 1.75,4.719 2.031,5.073 0.281,0.354 10 false x2 6.333,0.49 6.615,0.844 0.281,0.354 18 false 1 4.479,3.406 4.813,3.677 0.333,0.271 12 false *A 5.635,3.396 5.969,3.667 0.333,0.271 12 false *B 3.604,5.51 3.917,5.792 0.313,0.281 10 false x3

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0083,)	-	-
2	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0061,)	-	-
4	DOOR ASSIST GRIP COVER	74646	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0062,)	-	-
5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL	-	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0036,)	-	-
6	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL	-	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0037,)	-	-
7	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0052,)	-	-
8	FRONT DOOR GLASS INNER WEATHERSTRIP	68172A	-	-	-
9	FRONT DOOR SERVICE HOLE COVER	67832	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0055,)	-	-

for Driver Side

for Front Passenger Side

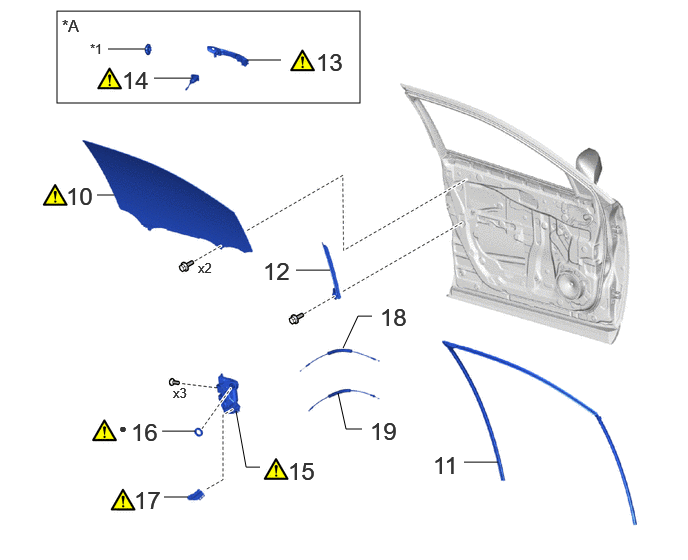

0.594,0.115 3.75,1.073 3.156,0.958 2.927,0.625 2.573,0.625 false 1.99,0.813 1.604,0.813 false 5.188,4.813 4.833,4.813 false 1.188,2.031 1.01,2.031 false 3.438,2.813 3.083,2.813 false 3.875,3.292 3.729,3.292 3.729,3.292 3.573,3.625 false 3.771,4.469 3.604,4.469 3.604,4.469 3.521,4.094 false 1.958,5.177 1.708,5.177 false 2.031,4.49 1.688,4.49 false 2.708,4.865 2.563,4.865 2.563,4.865 2.458,4.281 false 1.51,0.51 1.125,0.51 false 3,4.76 3.344,5.083 0.344,0.323 18 false 15 1.365,4.354 1.76,4.688 0.396,0.333 18 false 16 2.74,2.677 3.135,3.01 0.396,0.333 18 false 12 3.292,0.5 3.688,0.833 0.396,0.333 18 false 13 1.271,0.688 1.667,1.021 0.396,0.333 18 false 14 0.688,1.896 1.083,2.229 0.396,0.333 18 false 10 3.854,4.344 4.25,4.677 0.396,0.333 18 false 19 4.51,4.698 4.906,5.031 0.396,0.333 18 false 11 2.063,2.708 2.406,2.906 0.344,0.198 10 false x2 1.802,4.01 2.146,4.208 0.344,0.198 10 false x3 3.958,3.156 4.354,3.49 0.396,0.333 18 false 18 1.396,5.063 1.792,5.396 0.396,0.333 18 false 17 1.24,4.375 1.583,4.573 0.344,0.198 10 false ● 0.646,0.167 1.021,0.406 0.375,0.24 12 false *A 0.938,0.427 1.281,0.625 0.344,0.198 10 false *1

Procedure		Part Name Code
10	FRONT DOOR GLASS SUB-ASSEMBLY	67832	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0057,)	-	-
11	FRONT DOOR GLASS RUN	68151D	-	-	-
12	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY	68102	-	-	-
13	FRONT DOOR OUTSIDE HANDLE ASSEMBLY	67404F	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0066,)	-	-
14	FRONT DOOR LOCK CYLINDER ASSEMBLY	69220	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0059,)	-	-
15	FRONT DOOR LOCK WITH MOTOR ASSEMBLY	69510	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0017,)	-	-
16	DOOR LOCK WIRING HARNESS SEAL	69040A	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0074,)	-	-
17	FRONT DOOR LOCK COVER SUB-ASSEMBLY	69318C	(202307,999999,_58,_115226,_0510791,RM100000002CO8Z_02_0084,)	-	-
18	OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE	69720D	-	-	-
19	FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE	69760B	-	-	-

*A	for Driver Side	-	-
*1	HOLE PLUG	-	-
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door lock with motor assembly removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.; (202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; (202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

Hide Display 69284F 3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0232,)

Hide Display 74646 4.REMOVE DOOR ASSIST GRIP COVER

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0231,)

Hide Display 5.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0062,)

Hide Display 6.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0106,)

Hide Display 67602 7.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0005,)

Hide Display 68172A 8.REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0155,

Hide Display 67832 9.REMOVE FRONT DOOR SERVICE HOLE COVER

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0010,)

Hide Display 68102 10.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0012,)

Hide Display 68151D 11.REMOVE FRONT DOOR GLASS RUN

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0011,

Hide Display 67404F 12.REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0134,

Hide Display 69220 13.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0099,)

Hide Display 14.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

Click here(

202307,999999,_59,_113746,_0510833,RM100000002CODE_01_0020,)

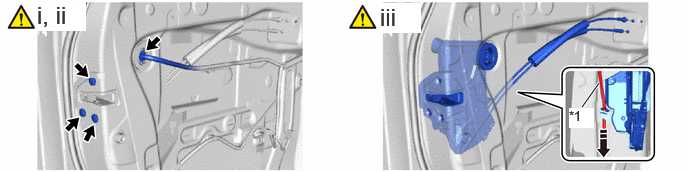

Hide Display 69040A 15.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

6.063,1.115 6.24,0.865 true 0.385,0.01 0.896,0.323 0.51,0.313 18 true i, ii 3.958,0.031 4.385,0.344 0.427,0.313 18 true iii 5.927,1.125 6.188,1.333 0.26,0.208 10 true *1

*1	Front Door Lock Open Rod	-	-
	Remove in this Direction	-	-

Disconnect the connector from the front door lock with motor assembly.

ii.

Using a T30 "TORX" socket wrench, remove the 3 screws.

iii.

Disconnect the front door lock open rod and remove the front door lock with motor assembly as shown in the illustration.

Hide Display 69318C 16.REMOVE DOOR LOCK WIRING HARNESS SEAL

NOTICE:: When reusing the front door lock with motor assembly.

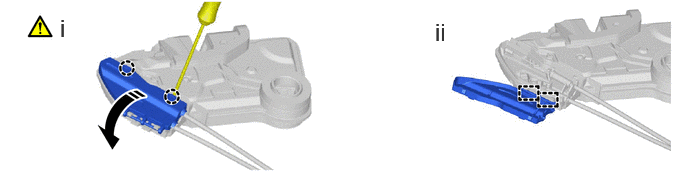

Hide Display 69036A 17.REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

0.625,0.146 0.906,0.5 0.281,0.354 18 false i 4.531,0.188 4.906,0.552 0.375,0.365 18 false ii

Remove in this Direction

Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

ii.

Disengage the guides to remove the front door lock cover sub-assembly.

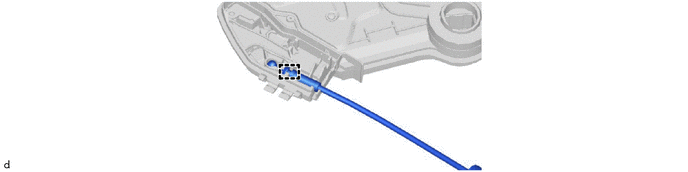

Hide Display 69720D 18.REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE

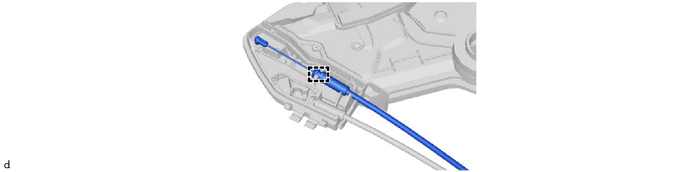

Hide Display 69760B 19.REMOVE FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE
