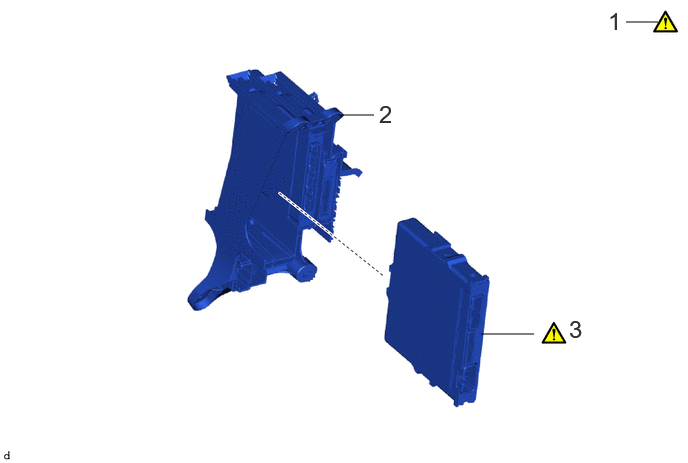

STOP AND START  ENGINE STOP AND START ECU  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed, or replaced during the engine stop and start ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of Engine stop and start ECU	1. Upload the number of starter operations 2. Reset air conditioning information 3. Learning air conditioning information 4. Clear the zero point calibration data 5. Perform zero point calibration of the deceleration sensor 6. Check the oil pump with solenoid assembly	Stop and start system	(202201,999999,_51,_115233,_0510781,RM1000000020B1M,)
	Update ECU security key	Vehicle control history (RoB) are stored	(202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,)

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
