NETWORKING NETWORK GATEWAY ECU REMOVAL
CAUTION / NOTICE / HINT
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | ( 202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0063,)
|
- | - |
| 2 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 3 | FRONT DOOR SCUFF PLATE RH | 67913B | - | - | - |
| 4 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 5 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | 62311B | - | - | - |
| 6 | NO. 2 INSTRUMENT SIDE PANEL | 55318F | (202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0038,)
|
- | - |
| 7 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55405B | - | - | - |
| 8 | LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55406B | (202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0065,)
|
- | - |
| 9 | AIR CONDITIONING CONTROL ASSEMBLY | 55900 | (202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0056,)
|
- | - |
| 10 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
| 11 | GLOVE COMPARTMENT DOOR ASSEMBLY | 55550 | (202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0045,)
|
- | - |
| 12 | NO. 2 CONSOLE UPPER PANEL GARNISH | 58834B | - | - | - |
| 13 | NO. 1 CONSOLE UPPER PANEL GARNISH | 58833B | - | - | - |
| 14 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | 55470 | - | - | - |
| 15 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 16 | FRONT CONSOLE UPPER PANEL GARNISH | 58831A | - | - | - |
| 17 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434F | - | - | - |
| 18 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL | 55433B | - | - | - |
| *A | for Mechanical Control Type | *B | for Electrical Control Type |
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 19 | NO. 2 CONNECTOR HOLDER | 82666H | - | - | - |
| 20 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | 89111 | (202307,999999,_57,_104409,_0500004,RM100000002BK0L_01_0021,)
|
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during central gateway ECU (network gateway ECU) removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Central gateway ECU (network gateway ECU) | Update ECU security key | - | (202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,)
|
- HINT:
-
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *1: for Gasoline Model
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) ( 202307,999999,_51,_115233,_0510781,RM100000002CS0B,)
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system Fully close the back door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the back door is closed.
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
PROCEDURE

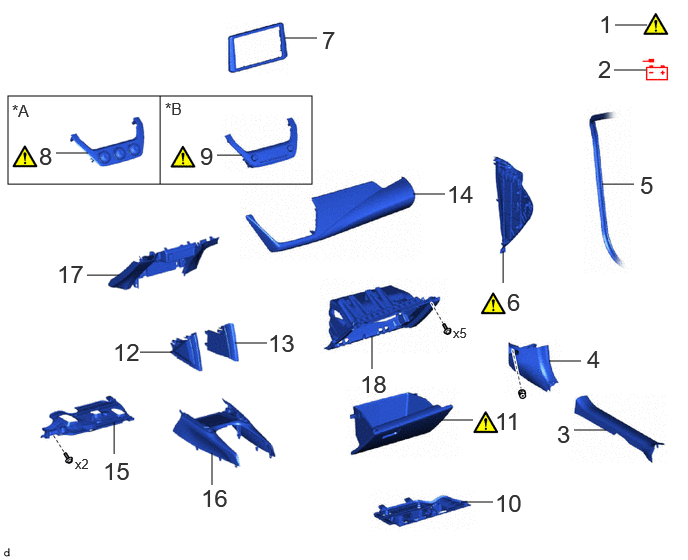

1. PRECAUTION
|
|
|
2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
67913B
3.REMOVE FRONT DOOR SCUFF PLATE RH
Use the same procedure as for the LH side.
62111C
4.REMOVE COWL SIDE TRIM BOARD RH
Use the same procedure as for the LH side.
62311B
5.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Use the same procedure as for the LH side.
55318F
6.REMOVE NO. 2 INSTRUMENT SIDE PANEL
|
|
·
Use the same procedure as for the No. 1 instrument side panel. Click here( |
55405B
7.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
55406B
8.REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)
55900
9.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)
55607
10.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
55550
11.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
58834B
12.REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
58833B
13.REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
Use the same procedure as for the No. 2 console upper panel garnish.
55470
14.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
55606
15.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
58831A
16.REMOVE FRONT CONSOLE UPPER PANEL GARNISH
55434F
17.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
55433B
18.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

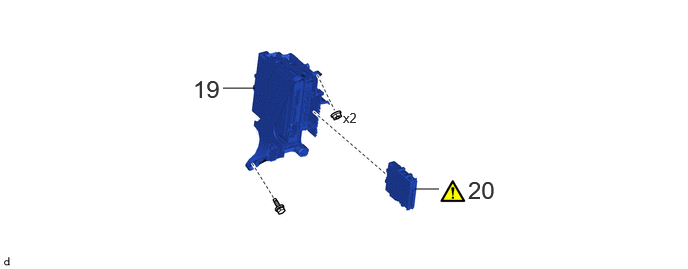

82666H
19.REMOVE NO. 2 CONNECTOR HOLDER
89111
20.REMOVE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
|
|
|

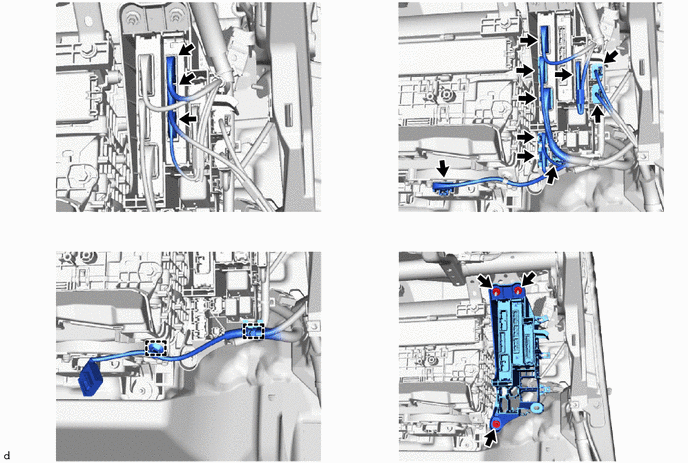

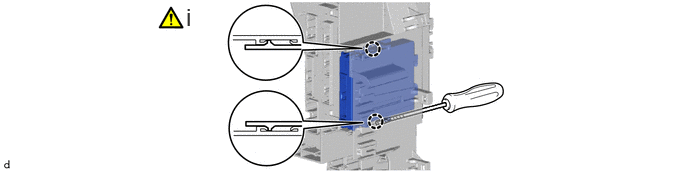

Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the central gateway ECU (network gateway ECU).
