THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Start Function, HEV Model) New Key cannot be Registered

DESCRIPTION

If a new electrical key transmitter sub-assembly could not be registered, wave interference or a malfunction of the certification ECU (smart key ECU assembly), electrical key transmitter sub-assembly, or upper bracket assembly)*3, ID code box (immobiliser code ECU), electrical key and TPMS receiver assembly is suspected.

The registration procedure to add another electrical key transmitter sub-assembly (without replacing any parts) is called "additional key ID registration".

If additional registration is not possible, refer to Additional Key cannot be Registered.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>Additional Key cannot be Registered202307,999999,_58,_115230,_0606512,RM100000002C260,

HINT:: If any of the following have been performed, registration of all electrical key transmitter sub-assemblies is necessary:

·

The certification ECU (smart key ECU assembly) has been replaced.

·

The certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) have been replaced.

·

The certification ECU (smart key ECU assembly), ID code box (immobiliser code ECU) have been replaced.

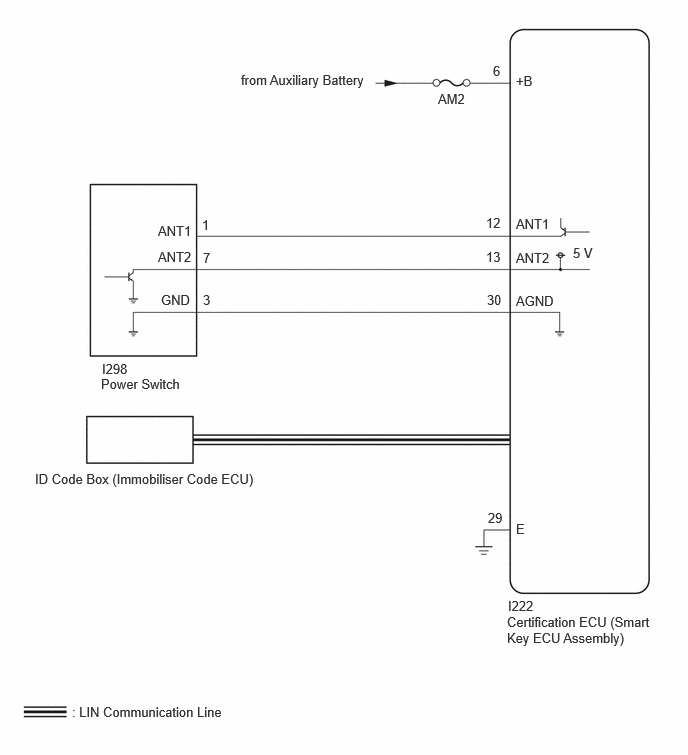

WIRING DIAGRAM

2.51,0.75 4.24,1.156 1.729,0.406 10 false from Auxiliary Battery 4.563,0.948 5.479,1.146 0.917,0.198 10 false AM2 1.063,3.76 1.979,3.958 0.917,0.198 10 false I298 5.292,6.229 6.208,6.427 0.917,0.198 10 false I222 5.375,5.427 6.292,5.625 0.917,0.198 10 false E 5.083,5.313 6,5.51 0.917,0.198 10 false 29 5.375,3.052 6.292,3.25 0.917,0.198 10 false AGND 5.375,2.604 6.292,2.802 0.917,0.198 10 false ANT2 5.375,2.25 6.292,2.448 0.917,0.198 10 false ANT1 1.646,2.323 2.563,2.521 0.917,0.198 10 false ANT1 1.646,2.594 2.563,2.792 0.917,0.198 10 false ANT2 1.677,3.042 2.594,3.24 0.917,0.198 10 false GND 2.104,2.26 3.021,2.458 0.917,0.198 10 false 1 2.115,2.604 3.031,2.802 0.917,0.198 10 false 7 2.115,3.042 3.031,3.24 0.917,0.198 10 false 3 5.063,2.594 5.979,2.792 0.917,0.198 10 false 13 5.073,3.042 5.99,3.24 0.917,0.198 10 false 30 5.063,2.24 5.979,2.438 0.917,0.198 10 false 12 1.052,3.917 2.063,4.135 1.01,0.219 10 false Power Switch 0.365,4.906 3.208,5.208 2.844,0.302 10 false ID Code Box (Immobiliser Code ECU) 0.75,7.333 2.646,7.563 1.896,0.229 10 false : LIN Communication Line 5.281,6.396 6.813,7.063 1.531,0.667 10 false Certification ECU (Smart Key ECU Assembly) 5.375,0.76 6.292,0.958 0.917,0.198 10 false +B 5.969,2.552 6.885,2.75 0.917,0.198 10 false 5 V 5.135,0.656 6.052,0.854 0.917,0.198 10 false 6

CAUTION / NOTICE / HINT

NOTICE:: ·

New registration mode can be entered only when no electrical key transmitter sub-assemblies are stored in the certification ECU (smart key ECU assembly).

·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING202307,999999,_58,_115230,_0606512,RM100000002C24Z,

·

Before replacing the electrical key transmitter sub-assembly, certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU), refer to Service Bulletin.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

After repair, confirm that no DTCs are output.

·

If registration of an electrical key transmitter sub-assembly cannot be performed, refer to the Service Bulletin.

PROCEDURE

1.CHECK FOR DTC

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes: 50001 440

NOTICE:: If a malfunction occurs, do not remove/install the vehicle auxiliary battery before checking for DTCs.

OK:: DTCs are not output.

Result:

Proceed to
OK
NG

2.READ VALUE USING GTS (NUMBER OF REGISTERED KEY CODES)

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>DIAGNOSTIC TROUBLE CODE CHART202307,999999,_58,_115230,_0606512,RM100000002C257,

2.READ VALUE USING GTS (NUMBER OF REGISTERED KEY CODES)

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Number of Registered Key Codes	Number of registered electrical key transmitter sub-assemblies	0 to 4	Number of registered electrical key transmitter sub-assemblies	Up to 4 electrical key transmitter sub-assemblies can be registered.

Body Electrical > Entry&Start > Data List

Tester Display
Number of Registered Key Codes

50003 440 9

HINT:: A new certification ECU (smart key ECU assembly) will be have no electrical key transmitter sub-assemblies registered.

OK:: "0" is displayed on the GTS display.

Result:

Proceed to
OK
NG

3.READ VALUE USING GTS (VEHICLE CONTROL HISTORY (ROB))

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

3.READ VALUE USING GTS (VEHICLE CONTROL HISTORY (ROB))

Read the Vehicle Control History (RoB) according to the display on the GTS.

Body Electrical > Entry&Start > Utility

Tester Display
Vehicle Control History (RoB)

50005 440 62

Check the freeze frame data.

Registration Function (Reason for Non-operation):

Parameter Name	Detection Condition	Trouble Area	Proceed to
Cannot Enter Registration Mode	· A registration request was sent while in another mode. · During registration a different registration request was sent.	Certification ECU (smart key ECU assembly)	A
Cannot Enter Registration Mode (Vehicle ID Not Set)	A vehicle ID has not been registered in the certification ECU (smart key ECU assembly).	Certification ECU (smart key ECU assembly)	B
Registration Limit	A registration request is sent when the maximum number of electrical key transmitter sub-assemblies has already been registered.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
Cannot Enter Registration Mode (ID Code Box Availability Not Confirmed)	A registration request was sent even though the existence of an ID code box is unknown.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	D
Cannot Enter Registration Mode (Vehicle Speed > 5 km/h) (This applies only when registration fails even though the vehicle is stationary. Make sure that the vehicle is stationary first.)	A registration request is sent with a vehicle speed of 5 km/h (3 mph) or more.	Certification ECU (smart key ECU assembly)	E
ECU Code Confirmation Failed (No Response from Connected ECUs)	The ID code box (immobiliser code ECU) was not connected.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	D
ECU Code Confirmation Failed (L Code Certification Failed)	The L codes registered in the ID code box (immobiliser code ECU) did not match.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
ECU Code Confirmation Failed (L Code Succeeded, S Code Failed)	L code verification was successful but the S code stored in the ID code box (immobiliser code ECU) and certification ECU (smart key ECU assembly) did not match.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
ECU Code Confirmation Failed (Too Many Keys Registered in ID Code Box)	The number of electrical key transmitter sub-assemblies registered in the ID code box (immobiliser code ECU) was more than 4.	ID code box (immobiliser code ECU)	H
Confirmation Failed for All Registered Keys (Immobilizer Certification Failed)	All of the registered electrical key transmitter sub-assemblies were incorrectly held near the power switch and the certification ECU (smart key ECU assembly) could not complete verification.	· Certification ECU (smart key ECU assembly) · Power switch	J
Confirmation Failed for All Registered Keys (Some Keys Unconfirmed)	Although all of the registered electrical key transmitter sub-assemblies had been held near the power switch, electrical key transmitter sub-assembly registration was not possible due to immobiliser function certification not being successful.	· Certification ECU (smart key ECU assembly) · Electrical key transmitter sub-assembly	K
Confirmation Failed for All Registered Keys (Key Information Malfunction)	All of the registered electrical key transmitter sub-assemblies were held near the power switch, but key ID information was not stored by the certification ECU (smart key ECU assembly).	Key registration failure	I
New Key ID Registration Failed (Immobilizer Certification Failed)	Although an unregistered electrical key transmitter sub-assembly was held near the power switch, electrical key transmitter sub-assembly registration is not possible due to immobiliser function certification not being successful.	· Certification ECU (smart key ECU assembly) · Electrical key transmitter sub-assembly	I
New Key ID Registration Failed (Vehicle ID did not Match)	Although an unregistered electrical key transmitter sub-assembly was held near the power switch, electrical key transmitter sub-assembly registration is not possible due to the vehicle ID not being stored successfully.	· Certification ECU (smart key ECU assembly) · Electrical key transmitter sub-assembly	L
New Key ID Registration Failed (Conditions Other than Vehicle ID not Met)	After successful immobiliser function certification, time expired before smart recognition completion confirmation or a registration cancellation request was sent.	· Certification ECU (smart key ECU assembly) · Electrical key transmitter sub-assembly	L
New Key ID Registration Failed (Key Already Registered)	Although a registered electrical key transmitter sub-assembly was held near the power switch, time expired or a registration cancellation request was sent.	Certification ECU (smart key ECU assembly)	M
New Key ID Registration Failed (ID Code Writing Failed)	Electrical key transmitter sub-assembly registration was not possible due to the certification ECU (smart key ECU assembly) not being able to store the information of the electrical key transmitter sub-assembly to EEPROM correctly.	Certification ECU (smart key ECU assembly)	B
New Key ID Registration Failed (Key Information Malfunction)	An unregistered electrical key transmitter sub-assembly was held near the power switch, but key ID information was not stored by the certification ECU (smart key ECU assembly).	Key registration failure	L
No Response from Connected ECUs when Registering L/S Codes	The certification ECU (smart key ECU assembly), ID code box (immobiliser code ECU) was not connected.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	F
No Response from Connected ECUs when Registering L/S Codes	The L codes registered in the ID code box (immobiliser code ECU) did not match.	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	G
S Code Registration Failed (Certification ECU, ID Code Box)	The S code could not be stored by the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU).	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
L Code Registration Failed (ID Code Box)	The L code could not be stored by the ID code box (immobiliser code ECU).	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
ECU ID Verification Error	The code received from the ID code box (immobiliser code ECU) when the S code is registered does not match the code of the certification ECU (smart key ECU assembly).	· Certification ECU (smart key ECU assembly) · ID code box (immobiliser code ECU)	C
Key Number Write Error	The certification ECU (smart key ECU assembly) could not store the number of electrical key transmitter sub-assemblies to EEPROM.	Certification ECU (smart key ECU assembly)	B
ID Code BOX Write Error	The certification ECU (smart key ECU assembly) could not store the information of whether the ID code box was provided in the vehicle to EEPROM.	Certification ECU (smart key ECU assembly)	B
B Code Registration Failed (Certification ECU, Main Body ECU)	B code was not stored by the certification ECU (smart key ECU assembly).	· Main body ECU (multiplex network body ECU) · Certification ECU (smart key ECU assembly)	N
New Key ID Registration Stopped (Security Access Malfunction)	Communication error	Communication error between the GTS and key registration server	O
New Key ID Registration Stopped (Certification ECU Type Malfunction)	The electrical key transmitter sub-assembly is not compatible with the certification ECU (smart key ECU assembly).	Certification ECU (smart key ECU assembly)	B
New Key ID Registration Stopped (Key Type Malfunction 1)	The electrical key transmitter sub-assembly is not compatible with the registration mode.	Electrical key transmitter sub-assembly	P
New Key ID Registration Stopped (Key Type Malfunction 2)	The electrical key transmitter sub-assembly is not compatible with the certification ECU (smart key ECU assembly).	Electrical key transmitter sub-assembly	P

4.CHECK REGISTRATION MODE

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

5.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

CHECK FOR DTC B278987

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM>B278987202201,999999,_57,_104409,_0510092,RM100000002086I,B278987

6.READ VALUE USING GTS (VEHICLE SPEED METER)

CHECK FOR DTC B278588

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM>B278588202201,999999,_57,_104409,_0510092,RM100000002086H,B278588

7.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

CHECK FOR DTC B27841C, B278E87

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>DTC CHECK / CLEAR202307,999999,_58,_115230,_0606512,RM100000002C255,

8.CHECK ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

12.CHECK FOR REGISTERD ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

14.REREGISTRATION

NEW KEY REGISTRATION FAILED, CHECK THE KEY

Check if a registered electrical key transmitter sub-assembly was held near the power switch instead of an unregistered electrical key transmitter sub-assembly by mistake.

Perform registration again using an unregistered electrical key transmitter sub-assembly. If the same problem occurs again, replace the certification ECU (smart key ECU assembly).

15.REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

PERFORM REREGISTRATION

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

Replace the electrical key transmitter sub-assembly, register the ID.

HINT:: Refer to Service Bulletin.

4.CHECK REGISTRATION MODE

Make sure that another mode or different registration mode is not selected.

OK:: Another mode or a different registration mode is not selected.

HINT:: If any mode has been selected, it is necessary to cancel the mode.

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

PERFORM REREGISTRATION

5.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Temporarily replace the certification ECU (smart key ECU assembly) with a new one and register the electrical key transmitter sub-assemblies.

HINT:: Refer to Service Bulletin.

OK:: All of the electrical key transmitter sub-assemblies could be registered to the new certification ECU (smart key ECU assembly) successfully.

Result:

Proceed to
OK
NG

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

6.READ VALUE USING GTS (VEHICLE SPEED METER)

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Vehicle Speed Meter	Vehicle speed	Min.: 0, Max.: 255	Almost same as actual vehicle speed (Speedometer tester)	-

Body Electrical > Combination Meter > Data List

Tester Display
Vehicle Speed Meter

50003 409 23

OK:: "0 km/h (0 mph)" is displayed when the vehicle is stationary.

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

GO TO METER / GAUGE SYSTEM

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING202307,999999,_58,_112289,_0504968,RM100000002BI7M,

7.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Temporarily replace the certification ECU (smart key ECU assembly) with a new one and register the electrical key transmitter sub-assemblies.

HINT:: Refer to Service Bulletin.

OK:: All of the electrical key transmitter sub-assemblies could be registered to the new certification ECU (smart key ECU assembly) successfully.

Result:

Proceed to
OK
NG

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

8.CHECK ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

Make sure that a registered electrical key transmitter sub-assembly is being used.

OK:: A registered electrical key transmitter sub-assembly is being used.

Result:

Proceed to
OK
NG

9.CHECK NUMBER OF REGISTERED ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLIES

USE A REGISTERED ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY AND PERFORM REREGISTRATION

9.CHECK NUMBER OF REGISTERED ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLIES

Check the number of registered electrical key transmitter sub-assemblies.

Result:

Result	Proceed to
Only one electrical key transmitter sub-assembly is registered	A
2 or more electrical key transmitter sub-assemblies are registered	B

11.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

10.REREGISTRATION

Reregister the electrical key transmitter sub-assemblies using different order combinations.

HINT:: ·

If there are 2 or more electrical key transmitter sub-assemblies, make sure that the number of order combinations is the same as the number of electrical key transmitter sub-assemblies so that each transmitter can be checked first.

·

Refer to Service Bulletin.

Example: When there are 3 registered electrical key transmitter sub-assemblies (A, B and C).
Combination	Order*
1	A → B → C
2	B → C→ A
3	C → A → B

*: Except the first electrical key transmitter sub-assembly, the remaining electrical key transmitter sub-assemblies can be checked in any order.

OK:: "Key Verification: Read Error" is not displayed.

Result:

Proceed to
OK
NG

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY HELD WHEN "Key Verification: Read Error" WAS DETECTED WAS DEFECTIVE)

11.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Temporarily replace the certification ECU (smart key ECU assembly) with a new one and register the electrical key transmitter sub-assemblies.

HINT:: Refer to Service Bulletin.

OK:: All of the electrical key transmitter sub-assemblies could be registered to the new certification ECU (smart key ECU assembly) successfully.

Result:

Proceed to
OK
NG

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

12.CHECK FOR REGISTERD ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

Check that all registered electrical key transmitter sub-assemblies are available.

OK:: No registered electrical key transmitter sub-assemblies are missing.

Result:

Proceed to
OK
NG

13.REREGISTRATION

ERASE ALL REGISTERED ELECTRICAL KEY TRANSMITTERS EXCEPT ONE, THEN REGISTER THE REMAINING ELECTRICAL KEY TRANSMITTERS

13.REREGISTRATION

HINT:: ·

If there are 2 or more electrical key transmitter sub-assemblies, make sure that the number of order combinations is the same as the number of electrical key transmitter sub-assemblies so that each transmitter can be checked first.

·

Refer to Service Bulletin.

Example: When there are 3 registered electrical key transmitter sub-assemblies (A, B and C).
Combination	Order*
1	A → B → C
2	B → C→ A
3	C → A → B

*: Except the first electrical key transmitter sub-assembly, the remaining electrical key transmitter sub-assemblies can be checked in any order.

OK:: "Key Verification: Read Error" is not displayed.

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY HELD WHEN "Key Verification: Read Error" WAS DETECTED WAS DEFECTIVE)

14.REREGISTRATION

Using an unregistered electrical key transmitter sub-assembly, register the ID.

HINT:: Refer to Service Bulletin.

OK:: The key ID can be registered.

Result:

Proceed to
OK
NG

END (ELECTRICAL KEY TRANSMITTER WAS DEFECTIVE)

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

15.REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Temporarily replace the main body ECU (multiplex network body ECU) with a new one and register the electrical key transmitter sub-assemblies.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL202307,999999,_57,_111968,_0500002,RM100000002BJZO,

OK:: All of the electrical key transmitter sub-assemblies could be registered to the new main body ECU (multiplex network body ECU) successfully.

Result:

Proceed to
OK
NG

END (MAIN BODY ECU (MULTIPLEX NETWROK BODY ECU) WAS DEFECTIVE)

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
