RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0606512 SMART ENTRY AND START SYSTEM(for Start Function, HEV Model) C

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HEV Model)  B227862  Engine/Power Switch Signal Compare Failure


DESCRIPTION

This DTC is stored when the SSW1 contact signal, SSW2 contact signal and SSW3 contact signal, which are detected when the power switch is operated, do not match.

DTC No. Detection Item DTC Detection Condition Trouble Area Note
B227862 Engine/Power Switch Signal Compare Failure When the power switch is operated, the SSW1 contact signal, SSW2 contact signal and SSW3 contact signal do not match.
·

Power switch

·

Certification ECU (smart key ECU assembly)

·

Wire harness or connector


DTC Output Confirmation Operation:

Turn the ignition switch to ON.



Vehicle Condition and Fail-safe Function when Malfunction Detected
Vehicle Condition when Malfunction Detected Fail-safe Function when Malfunction Detected
If there is a malfunction in only one of the terminals SS1, SS2 or SS3, the system can still operate normally. When only one terminal malfunctions, that terminal is disabled and the system operates normally.

Related Data List and Active Test Items
DTC No. Data List and Active Test
B227862
Power Source Control
·

Push Start Switch 1

·

Push Start Switch 2

·

Push Start Switch 3

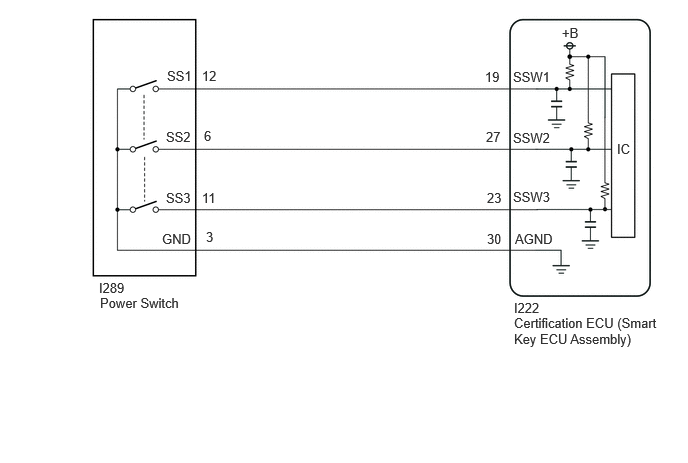

WIRING DIAGRAM

B570092E75
1.042,3.073 2.198,3.302 1.156,0.229 10 false Power Switch 1.031,2.917 2.865,3.115 1.833,0.198 10 false I289 5.354,3.281 6.875,3.802 1.521,0.521 10 false Certification ECU (Smart Key ECU Assembly) 1.74,0.708 3.573,0.906 1.833,0.198 10 false SS1 1.729,1.344 3.563,1.542 1.833,0.198 10 false SS2 1.729,1.979 3.563,2.177 1.833,0.198 10 false SS3 1.688,2.406 3.521,2.604 1.833,0.198 10 false GND 5.365,2.406 6.01,2.635 0.646,0.229 10 false AGND 5.344,1.969 5.99,2.198 0.646,0.229 10 false SSW3 5.344,0.719 5.99,0.948 0.646,0.229 10 false SSW1 5.344,1.354 5.99,1.583 0.646,0.229 10 false SSW2 5.854,0.26 6.5,0.49 0.646,0.229 10 false +B 6.427,1.469 7.073,1.698 0.646,0.229 10 false IC 5.354,3.125 6.729,3.323 1.375,0.198 10 false I222 2.104,0.708 2.458,0.906 0.354,0.198 10 false 12 2.125,1.333 2.479,1.531 0.354,0.198 10 false 6 2.104,1.979 2.458,2.177 0.354,0.198 10 false 11 2.146,2.385 2.5,2.583 0.354,0.198 10 false 3 5.052,0.719 5.406,0.917 0.354,0.198 10 false 19 5.063,1.344 5.417,1.542 0.354,0.198 10 false 27 5.073,1.979 5.427,2.177 0.354,0.198 10 false 23 5.073,2.406 5.427,2.604 0.354,0.198 10 false 30

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



PROCEDURE

1.READ VALUE USING GTS (PUSH START SWITCH 1)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 1 Power switch 1 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 1
50003 454 201

Result:
Result Proceed to
The value of Push Start Switch 1 is OFF A
The value of Push Start Switch 1 is not OFF B



A

2.READ VALUE USING GTS (PUSH START SWITCH 1)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
2.READ VALUE USING GTS (PUSH START SWITCH 1)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 1 Power switch 1 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 1
50003 454 201

Result:
Result Proceed to
The value of Push Start Switch 1 is ON A
The value of Push Start Switch 1 is not ON B



A

3.READ VALUE USING GTS (PUSH START SWITCH 2)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
3.READ VALUE USING GTS (PUSH START SWITCH 2)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 2 Power switch 2 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 2
50003 454 202

Result:
Result Proceed to
The value of Push Start Switch 2 is OFF A
The value of Push Start Switch 2 is not OFF B



A

4.READ VALUE USING GTS (PUSH START SWITCH 2)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
4.READ VALUE USING GTS (PUSH START SWITCH 2)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 2 Power switch 2 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 2
50003 454 202

Result:
Result Proceed to
The value of Push Start Switch 2 is ON A
The value of Push Start Switch 2 is not ON B



A

5.READ VALUE USING GTS (PUSH START SWITCH 3)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
5.READ VALUE USING GTS (PUSH START SWITCH 3)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 3 Power switch 3 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 3
50003 454 203

Result:
Result Proceed to
The value of Push Start Switch 3 is OFF A
The value of Push Start Switch 3 is not OFF B



A

6.READ VALUE USING GTS (PUSH START SWITCH 3)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
6.READ VALUE USING GTS (PUSH START SWITCH 3)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 3 Power switch 3 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 3
50003 454 203

Result:
Result Proceed to
The value of Push Start Switch 3 is ON A
The value of Push Start Switch 3 is not ON B



A

7.READ VALUE USING GTS (PUSH START SWITCH 1)

B

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
7.READ VALUE USING GTS (PUSH START SWITCH 1)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 1 Power switch 1 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 1
50003 454 201

Result:
Result Proceed to
The value of Push Start Switch 1 is OFF A
The value of Push Start Switch 1 is not OFF B



A

8.READ VALUE USING GTS (PUSH START SWITCH 1)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.READ VALUE USING GTS (PUSH START SWITCH 1)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 1 Power switch 1 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 1
50003 454 201

Result:
Result Proceed to
The value of Push Start Switch 1 is ON A
The value of Push Start Switch 1 is not ON B



A

9.READ VALUE USING GTS (PUSH START SWITCH 2)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.READ VALUE USING GTS (PUSH START SWITCH 2)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 2 Power switch 2 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 2
50003 454 202

Result:
Result Proceed to
The value of Push Start Switch 2 is OFF A
The value of Push Start Switch 2 is not OFF B



A

10.READ VALUE USING GTS (PUSH START SWITCH 2)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.READ VALUE USING GTS (PUSH START SWITCH 2)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 2 Power switch 2 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 2
50003 454 202

Result:
Result Proceed to
The value of Push Start Switch 2 is ON A
The value of Push Start Switch 2 is not ON B



A

11.READ VALUE USING GTS (PUSH START SWITCH 3)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.READ VALUE USING GTS (PUSH START SWITCH 3)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 3 Power switch 3 status OFF or ON OFF: Power switch not pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 3
50003 454 203

Result:
Result Proceed to
The value of Push Start Switch 3 is OFF A
The value of Push Start Switch 3 is not OFF B



A

12.READ VALUE USING GTS (PUSH START SWITCH 3)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.READ VALUE USING GTS (PUSH START SWITCH 3)
a.

According to the display on the GTS, read the Data List while wiggling the wire harness.

Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Push Start Switch 3 Power switch 3 status OFF or ON ON: Power switch pressed
·

If the power switch is pressed for a short time, the display may not change.

·

Use this item to determine if the power switch input signal is malfunctioning.


Body Electrical > Power Source Control > Data List
Tester Display
Push Start Switch 3
50003 454 203

Result:
Result Proceed to
The value of Push Start Switch 3 is ON A
The value of Push Start Switch 3 is not ON B



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER SWITCH)
a.

Disconnect the I222 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the I289 power switch connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I222-19 (SSW1) - I289-12 (SS1) Always Below 1 Ω
I222-27 (SSW2) - I289-6 (SS2) Always Below 1 Ω
I222-23 (SSW3) - I289-11 (SS3) Always Below 1 Ω
I222-30 (AGND) - I289-3 (GND) Always Below 1 Ω
I222-19 (SSW1) or I289-12 (SS1) - Other terminals and body ground Always 10 kΩ or higher
I222-27 (SSW2) or I289-6 (SS2) - Other terminals and body ground Always 10 kΩ or higher
I222-23 (SSW3) or I289-11 (SS3) - Other terminals and body ground Always 10 kΩ or higher
I222-30 (AGND) or I289-3 (GND) - Other terminals and body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG




OK

14.INSPECT POWER SWITCH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
