RM38T0EC _51 Engine / Hybrid System _144999 M20F-FXS, M20G-FXS STARTING _0604338 POWER SWITCH A

M20F-FXS, M20G-FXS STARTING POWER SWITCH REMOVAL

CAUTION / NOTICE / HINT

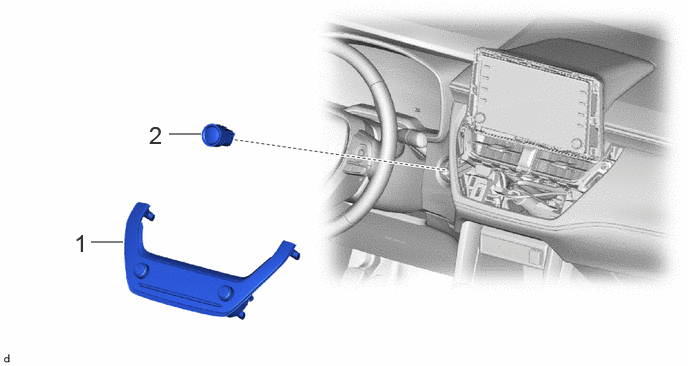

COMPONENTS (REMOVAL)

0.948,2.521 1.281,2.521 false 1.76,1.396 2.094,1.396 false 0.771,2.385 1.052,2.74 0.281,0.354 18 false 1 1.552,1.26 1.833,1.615 0.281,0.354 18 false 2

Procedure		Part Name Code
1	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-
2	POWER SWITCH	89611	-	-	-

PROCEDURE

Hide Display 55900 1.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL (for Electrical Control Type)>REMOVAL202201,999999,_58,_104612,_0500019,RM100000001Z15I,

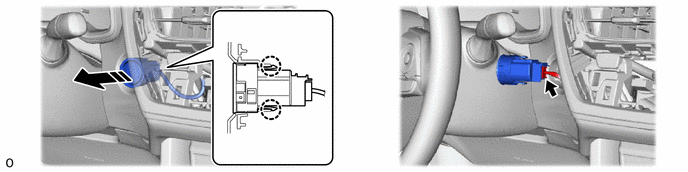

Hide Display 89611 2.REMOVE POWER SWITCH

0,0 0,0 false

Remove in this Direction
