THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function, HEV Model)  Back Door Entry Unlock Function does not Operate


DESCRIPTION

If the entry unlock function does not operate for the back door only, but the entry lock function operates, the request code is being transmitted properly from the back door. In this case, there may be a problem related to the open switch (connection between the back door opener switch assembly and certification ECU (smart key ECU assembly)).

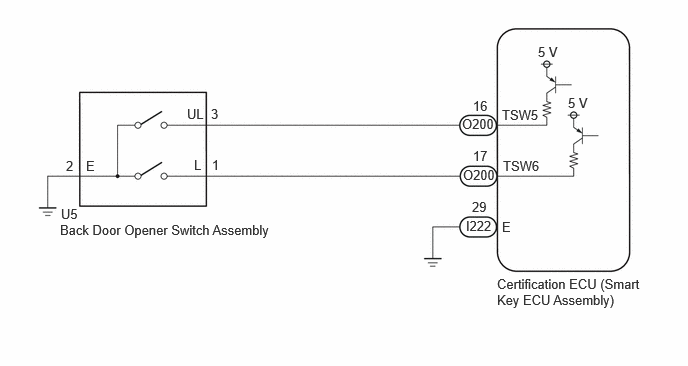

WIRING DIAGRAM

B665187E03
0.625,2.313 3.229,2.51 2.604,0.198 10 false Back Door Opener Switch Assembly 0.635,2.146 0.927,2.344 0.292,0.198 10 false U5 0.688,1.646 0.979,1.844 0.292,0.198 10 false 2 0.896,1.646 1.188,1.844 0.292,0.198 10 false E 2.208,1.635 2.5,1.833 0.292,0.198 10 false 1 2.198,1.104 2.49,1.302 0.292,0.198 10 false 3 2.021,1.635 2.313,1.833 0.292,0.198 10 false L 1.948,1.104 2.24,1.302 0.292,0.198 10 false UL 5.229,2.281 5.521,2.479 0.292,0.198 10 false E 5.24,1.646 5.938,1.865 0.698,0.219 10 false TSW6 5.229,1.115 5.927,1.333 0.698,0.219 10 false TSW5 4.854,2.271 5.146,2.469 0.292,0.198 10 false I222 4.813,1.208 5.208,1.417 0.396,0.208 10 false O200 4.927,1.021 5.219,1.219 0.292,0.198 10 false 16 4.927,1.542 5.219,1.74 0.292,0.198 10 false 17 4.917,2.073 5.208,2.271 0.292,0.198 10 false 29 5.604,0.458 5.896,0.656 0.292,0.198 10 false 5 V 5.917,0.99 6.208,1.188 0.292,0.198 10 false 5 V 5.177,2.875 6.708,3.51 1.531,0.635 10 false Certification ECU (Smart Key ECU Assembly) 4.823,1.74 5.25,1.938 0.427,0.198 10 false O200

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function, HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

After repair, confirm that no DTCs are output.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.



PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM
a.

When the door control switch on the multiplex network master switch assembly is operated, check that the back door lock and unlock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK

OK:

Back door lock/unlock operate normally.



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (TRUNK LID/BACK DOOR UNLOCK SWITCH)

NG

2.READ VALUE USING GTS (TRUNK LID/BACK DOOR UNLOCK SWITCH)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Trunk Lid/Back Door Unlock Switch Back door opener switch assembly (open switch) OFF or ON OFF: Back door opener switch assembly (open switch) not pressed
ON: Back door opener switch assembly (open switch) pressed
·

Displays whether the back door opener switch assembly is on or off.

·

Use this Data List item to help determine if there is a switch malfunction when the entry back door open function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
Trunk Lid/Back Door Unlock Switch
50003 440 14
OK:

The GTS display changes correctly in response to the operation of the back door opener switch assembly.



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

3.CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
3.CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
a.

Disconnect the O200 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the U5 back door opener switch assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O200-16 (TSW5) - U5-3 (UL) Always Below 1 Ω
O200-16 (TSW5) or U5-3 (UL) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.INSPECT BACK DOOR OPENER SWITCH ASSEMBLY (OPEN SWITCH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.INSPECT BACK DOOR OPENER SWITCH ASSEMBLY (OPEN SWITCH)

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG
