THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function, HEV Model)  Front Passenger Side Door Entry Unlock Function does not Operate


DESCRIPTION

If the entry unlock function does not operate for the front passenger door only, but the entry lock function operates, the request code is being transmitted properly from the front passenger door. In this case, there may be a problem related to the unlock sensor (connection between the certification ECU (smart key ECU assembly) and front door outside handle assembly RH).

WIRING DIAGRAM

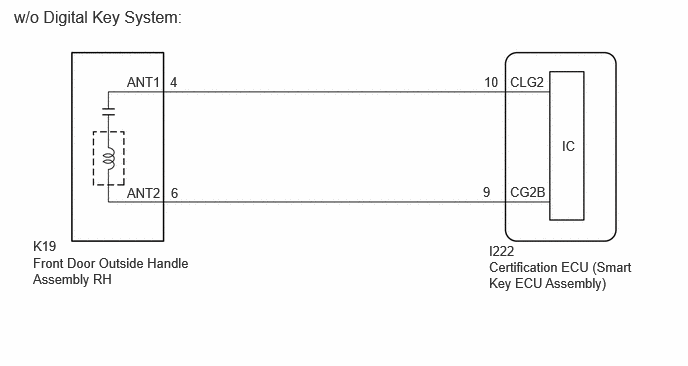

B665186E33
0.344,2.656 1.99,3.052 1.646,0.396 10 false Front Door Outside Handle Assembly RH 0.344,2.479 0.677,2.708 0.333,0.229 10 false K19 1.771,0.771 2.01,1.01 0.24,0.24 10 false 4 1.781,1.927 2.021,2.167 0.24,0.24 10 false 6 1.323,0.771 1.688,1 0.365,0.229 10 false ANT1 1.323,1.927 1.688,2.156 0.365,0.229 10 false ANT2 5.313,0.771 5.781,1.021 0.469,0.25 10 false CLG2 5.313,1.917 5.781,2.167 0.469,0.25 10 false CG2B 5.042,0.771 5.281,1.01 0.24,0.24 10 false 10 5.031,1.917 5.271,2.156 0.24,0.24 10 false 9 5.094,2.698 6.635,3.271 1.542,0.573 10 false Certification ECU (Smart Key ECU Assembly) 5.094,2.531 5.521,2.771 0.427,0.24 10 false I222 5.854,1.438 6.323,1.698 0.469,0.26 10 false IC 0.146,0.073 2.365,0.354 2.219,0.281 12 false w/o Digital Key System:

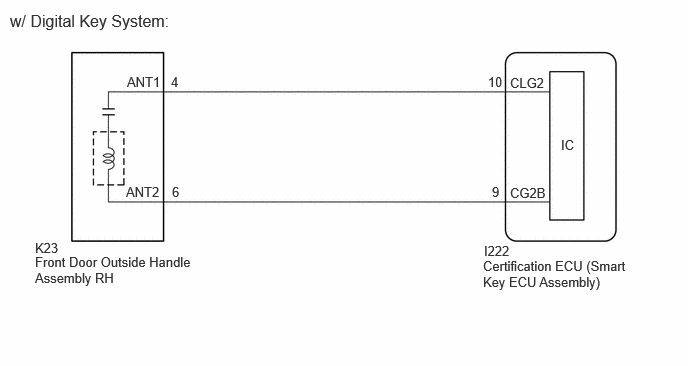

B665186E34
0.365,2.646 2.042,3.25 1.677,0.604 10 false Front Door Outside Handle Assembly RH 0.365,2.5 0.729,2.76 0.365,0.26 10 false K23 1.781,0.771 2.021,1.01 0.24,0.24 10 false 4 1.792,1.917 2.031,2.156 0.24,0.24 10 false 6 1.323,0.771 1.688,1 0.365,0.229 10 false ANT1 1.313,1.917 1.677,2.146 0.365,0.229 10 false ANT2 5.313,0.781 5.781,1.031 0.469,0.25 10 false CLG2 5.313,1.927 5.781,2.177 0.469,0.25 10 false CG2B 5.083,0.771 5.323,1.01 0.24,0.24 10 false 10 5.125,1.917 5.365,2.156 0.24,0.24 10 false 9 5.031,2.688 6.563,3.448 1.531,0.76 10 false Certification ECU (Smart Key ECU Assembly) 5.042,2.531 5.469,2.771 0.427,0.24 10 false I222 5.844,1.427 6.313,1.677 0.469,0.25 10 false IC 0.104,0.115 2.021,0.354 1.917,0.24 12 false w/ Digital Key System:

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function, HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.



PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM
a.

When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK

OK:

Door locks operate normally.



Result:
Proceed to
OK
NG



OK

2.CHECK ENTRY OPERATION

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK ENTRY OPERATION
a.

Check that the entry unlock function.

i.
B581630C01
1.688,1.469 2.25,0.667 2.25,0.667 2.667,0.667 false 2.719,0.615 3.031,0.813 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Turn the ignition switch off.


ii.

Open and close the front passenger door.


iii.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


iv.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly RH and approximately 0.3 m (0.984 ft.) from the front passenger door.


v.

Check that the LED of the electrical key transmitter sub-assembly blinks.


vi.

Touch the unlock sensor on the backside of the front door outside handle assembly RH for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (3).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (1).




Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

3.READ VALUE USING GTS (FR DOOR LOCK POSITION SWITCH STATUS)

B

GO TO CHECK FOR INTERMITTENT PROBLEMS (OPERATION HISTORY)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>CHECK FOR INTERMITTENT PROBLEMS


3.READ VALUE USING GTS (FR DOOR LOCK POSITION SWITCH STATUS)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
FR Door Lock Position Switch Status Front door RH unlock detection switch signal Lock or Unlock Lock: Front door RH locked
Unlock: Front door RH unlocked 		-
Body Electrical > Main Body > Data List
Tester Display
FR Door Lock Position Switch Status
50003 449 20
OK:

The GTS display changes correctly in response to the lock/unlock operation of the front passenger door.



Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (PASSENGER SIDE UNLOCK SENSOR)

NG

GO TO LIGHTING SYSTEM (Proceed to Door Unlock Detection Switch Circuit)

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>Door Unlock Detection Switch Circuit


4.READ VALUE USING GTS (PASSENGER SIDE UNLOCK SENSOR)
a.
B581630C01
1.688,1.469 2.25,0.667 2.25,0.667 2.667,0.667 false 2.719,0.615 3.031,0.813 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Open and close the front passenger door.


b.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


c.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly RH and approximately 0.3 m (0.984 ft.) from the front passenger door.


d.

Check that the LED of the electrical key transmitter sub-assembly blinks.


e.

Read the Data List according to the display on the GTS.


f.

Touch the unlock sensor on the backside of the front door outside handle assembly RH for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (f).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Passenger Side Unlock Sensor Front passenger door touch sensor (unlock sensor) OFF or ON OFF: Front passenger door touch sensor (unlock sensor) not touched
ON: Front passenger door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
Passenger Side Unlock Sensor
50003 440 4
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly RH.



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH)
5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH)
a.

Disconnect the I222 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the K19*1 or K23*2 front door outside handle assembly RH connector.

*1: w/o Digital Key System

*2: w/ Digital Key System



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
w/o Digital Key System
Tester Connection Condition Specified Condition
I222-10 (CLG2) - K19-4 (ANT1) Always Below 1 Ω
I222-9 (CG2B) - K19-6 (ANT2) Always Below 1 Ω
I222-10 (CLG2) or K19-4 (ANT1) - Other terminals and body ground Always 10 kΩ or higher
I222-9 (CG2B) or K19-6 (ANT2) - Other terminals and body ground Always 10 kΩ or higher


Standard Resistance:
w/ Digital Key System
Tester Connection Condition Specified Condition
I222-10 (CLG2) - K23-4 (ANT1) Always Below 1 Ω
I222-9 (CG2B) - K23-6 (ANT2) Always Below 1 Ω
I222-10 (CLG2) or K23-4 (ANT1) - Other terminals and body ground Always 10 kΩ or higher
I222-9 (CG2B) or K23-6 (ANT2) - Other terminals and body ground Always 10 kΩ or higher



d.

Reconnect the K19*1 or K23*2 front door outside handle assembly RH connector.

*1: w/o Digital Key System

*2: w/ Digital Key System



e.

Reconnect the I222 certification ECU (smart key ECU assembly) connector.


Result:
Proceed to
OK
NG



OK

6.READ VALUE USING GTS (PASSENGER SIDE UNLOCK SENSOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.READ VALUE USING GTS (PASSENGER SIDE UNLOCK SENSOR)
a.
B581630C01
1.688,1.469 2.25,0.667 2.25,0.667 2.667,0.667 false 2.719,0.615 3.031,0.813 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)


Open and close the front passenger door.


b.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


c.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly RH and approximately 0.3 m (0.984 ft.) from the front passenger door.


d.

Check that the LED of the electrical key transmitter sub-assembly blinks.


e.

Read the Data List according to the display on the GTS.


f.

Touch the unlock sensor on the backside of the front door outside handle assembly RH for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (g).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Passenger Side Unlock Sensor Front passenger door touch sensor (unlock sensor) OFF or ON OFF: Front passenger door touch sensor (unlock sensor) not touched
ON: Front passenger door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
Passenger Side Unlock Sensor
50003 440 4
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly RH.



Result:
Proceed to
OK
NG



OK

END (CONNECTOR WAS NOT CONNECTED SECURELY)

NG

REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY
