RM38T0EC _52 Drivetrain _112268 AXLE AND DIFFERENTIAL _0500953 STEERING KNUCKLE A

AXLE AND DIFFERENTIAL STEERING KNUCKLE REMOVAL

CAUTION / NOTICE / HINT

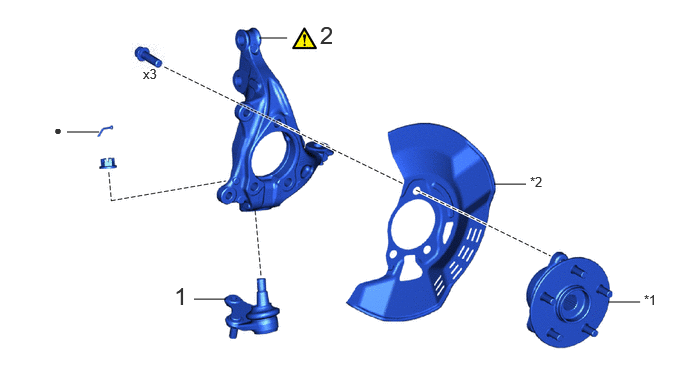

COMPONENTS (REMOVAL)

2.698,0.396 2.99,0.396 false 5.146,1.917 5.479,1.917 false 6.333,3.146 6.667,3.146 false 2.021,3.115 2.354,3.115 false 0.698,1.375 1.031,1.375 false 3.333,0.219 3.615,0.573 0.281,0.354 18 false 2 5.521,1.813 5.833,2.01 0.313,0.198 10 false *2 6.708,3.042 7.021,3.24 0.313,0.198 10 false *1 1.813,2.938 2.094,3.292 0.281,0.354 18 false 1 0.563,1.271 0.906,1.479 0.344,0.208 10 false ● 1.49,0.688 1.802,0.885 0.313,0.198 10 false x3

Procedure		Part Name Code
1	FRONT LOWER BALL JOINT ASSEMBLY	43340A	-	-	-
2	STEERING KNUCKLE	43212	(202307,999999,_52,_112268,_0500953,RM100000002C1Z8_01_0041,)	-	-

*1	FRONT AXLE HUB SUB-ASSEMBLY	*2	FRONT DISC BRAKE DUST COVER
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the steering knuckle removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
1: for HEV Model 2: for Gasoline Model
Front wheel alignment adjustment	Calibration	· DTCs are stored · ABS warning light illuminates · Slip indicator light illuminates · VSC disabled or malfunctions	(202307,999999,_54,_112606,_0608077,RM100000002C79U,)1 (202307,999999,_54,_112606,_0608078,RM100000002C7D1,)2
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic view monitor system	(202201,999999,_56,_111969,_0587004,RM1000000029RN8,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 43340A 1.REMOVE FRONT LOWER BALL JOINT ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT LOWER BALL JOINT>REMOVAL202307,999999,_53,_112966,_0502993,RM100000002BYS1,

Hide Display 43212 2.REMOVE STEERING KNUCKLE

0.406,0.021 1.781,0.375 1.375,0.354 18 false i, ii

Secure the front axle assembly between aluminum plates in a vise.

NOTICE:: Do not overtighten the vise.

ii.

Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.

NOTICE:: ·

Do not drop the front axle hub sub-assembly.

·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
