FRONT SUSPENSION FRONT LOWER BALL JOINT REMOVAL
CAUTION / NOTICE / HINT
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT AXLE ASSEMBLY | - | - | - | - |
| 2 | FRONT LOWER BALL JOINT ASSEMBLY | 43340A | ( 202307,999999,_53,_112966,_0502993,RM100000002BYS1_01_0014,)
|
- | - |
| ● | Non-reusable part | - | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front lower ball joint assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: for HEV Model *2: for Gasoline Model |
|||
| Front wheel alignment adjustment | Calibration | ·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
VSC disabled or malfunctions |
(202307,999999,_54,_112606,_0608077,RM100000002C79U,)*1
( 202307,999999,_54,_112606,_0608078,RM100000002C7D1,)*2
|
- HINT:
- ·
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *1: for Gasoline Model
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 202307,999999,_51,_115233,_0510781,RM100000002CS0B,)
-Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system Fully close the back door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the back door is closed.
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE

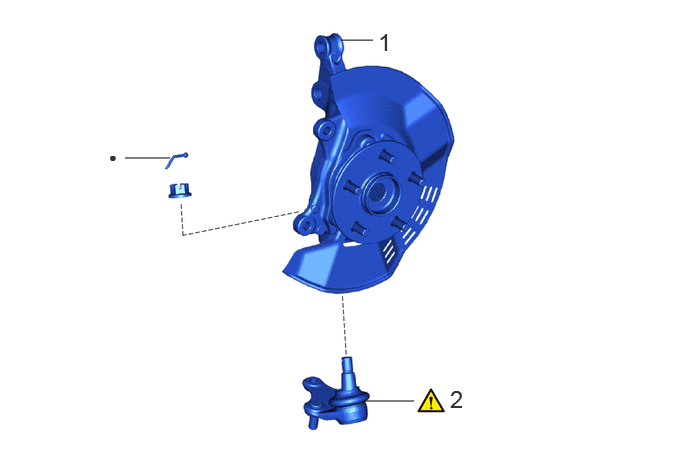

1.REMOVE FRONT AXLE ASSEMBLY
43340A
2.REMOVE FRONT LOWER BALL JOINT ASSEMBLY

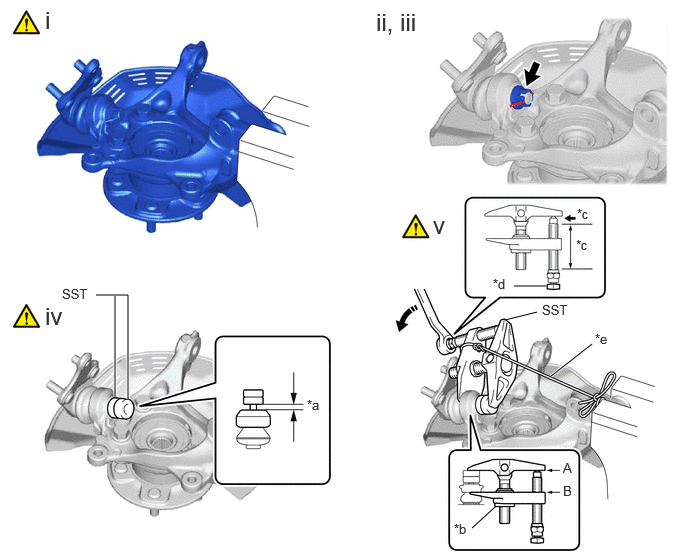

| *a | 1 mm (0.0394 in.) | *b | Center Nut |
| *c | Molybdenum Grease Application Area | *d | Place wrench here |
| *e | String | - | - |
|
Turn | - | - |
Secure the front axle assembly in a vise using aluminum plates.
- NOTICE:
-
Do not overtighten the vise.
Remove the cotter pin.
Remove the nut.
Install SST to the front lower ball joint assembly as shown in the illustration.
- SST
- 09960-20010 (09961-02050)
- NOTICE:
-
Check that the clearance measurement between SST and the front axle assembly is 1 mm (0.0394 in.).
Using SST, remove the front lower ball joint assembly from the front axle assembly as shown in the illustration.
- SST
- 09960-20010 (09961-02010, 09961-02050)
- CAUTION:
-
Apply molybdenum grease to the threads and end of the SST bolt.
- NOTICE:
- ·
Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the front lower ball joint dust cover may be damaged.
·Be sure to place a wrench on the part shown in the illustration.
·Do not damage the front lower ball joint dust cover.
·Do not damage the steering knuckle.
·Do not damage the front disc brake dust cover.
