RM38T0EC _52 Drivetrain _112268 AXLE AND DIFFERENTIAL _0500952 FRONT AXLE HUB A

AXLE AND DIFFERENTIAL  FRONT AXLE HUB  INSTALLATION


CAUTION / NOTICE / HINT

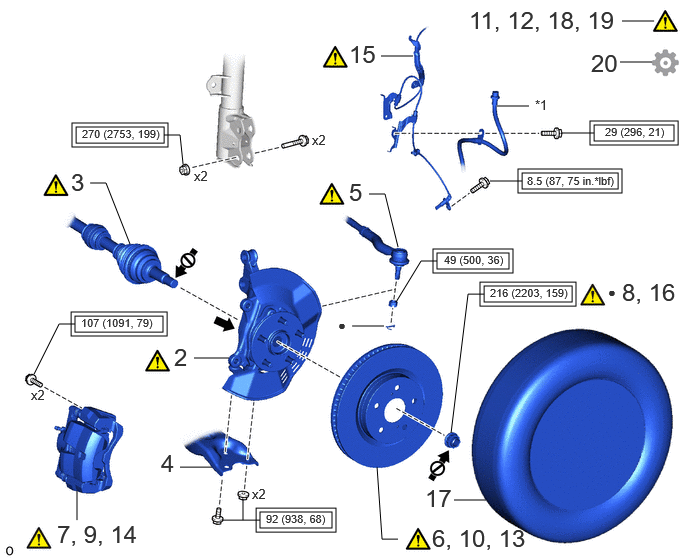

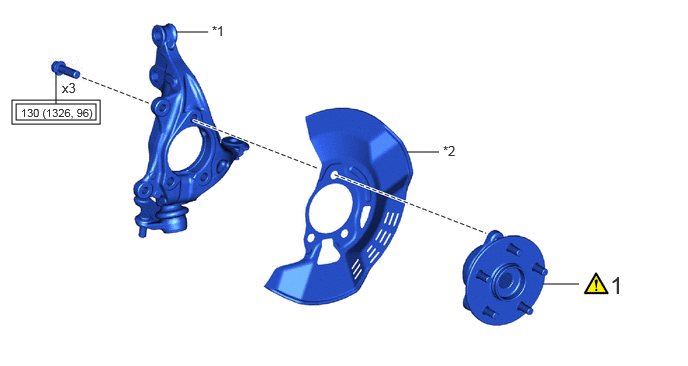

COMPONENTS (INSTALLATION)
C438013N01
0.167,1.083 1,1.25 0.833,0.167 0.125,1.042 1.042,1.292 0.917,0.25 5.656,2.958 6.031,2.958 false 4.24,1.583 4.573,1.583 false 1.833,0.333 2.167,0.333 false 0.583,1.083 0.583,0.75 false 6.354,2.823 6.906,3.177 0.552,0.354 18 false 1 4.615,1.49 4.927,1.688 0.313,0.198 10 false *2 2.208,0.24 2.521,0.438 0.313,0.198 10 false *1 0.646,0.833 0.958,1.031 0.313,0.198 10 false x3 0.219,1.104 1.052,1.26 0.833,0.156 8 false 130 (1326, 96)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT AXLE HUB SUB-ASSEMBLY 43502C (Click here) - -

*1 STEERING KNUCKLE *2 FRONT DISC BRAKE DUST COVER
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

C438012N09
2.708,5.333 3.458,5.5 0.75,0.167 2.667,5.292 3.5,5.542 0.833,0.25 0.792,1.323 1.708,1.49 0.917,0.167 0.75,1.281 1.75,1.531 1,0.25 5.438,1.802 6.438,1.969 1,0.167 5.396,1.76 6.479,2.01 1.083,0.25 6.188,1.302 7.021,1.469 0.833,0.167 6.146,1.26 7.063,1.51 0.917,0.25 4.552,2.635 5.302,2.802 0.75,0.167 4.51,2.594 5.344,2.844 0.833,0.25 0.74,3.25 1.74,3.5 1,0.25 0.781,3.292 1.698,3.458 0.917,0.167 5.042,2.979 5.958,3.146 0.917,0.167 5,2.938 6,3.188 1,0.25 6.479,0.219 6.813,0.219 false 2.313,5.417 2.708,5.417 false 4.698,4.51 4.875,3.063 4.875,3.063 5.042,3.063 false 0.802,5.417 0.802,5.115 false 0.938,1.906 1.104,1.906 1.104,1.906 1.354,2.542 false 3.969,0.583 4.302,0.583 false 5.177,1.104 5.51,1.104 false 0.354,3.896 0.615,3.375 0.615,3.375 0.781,3.375 false 3.667,3.396 4,3.396 false 3.844,2.021 4.01,2.021 4.01,2.021 4.146,2.573 false 2.021,3.729 2.385,3.729 false 3.927,4.865 3.979,5.615 3.979,5.615 4.146,5.615 false 4.729,5.208 5.063,5.208 false 6.458,0.646 6.792,0.646 false 2.531,5.417 2.531,5.198 false 1.875,4.865 2.208,4.865 false 1.906,1.708 1.875,1.406 1.875,1.406 1.708,1.406 false 5.104,1.885 5.438,1.885 false 5.854,1.385 6.188,1.385 false 4.125,3.146 4.385,2.719 4.385,2.719 4.552,2.719 false 4.427,5.042 4.938,5.323 0.51,0.281 18 false 17 6.479,2.896 7.125,3.188 0.646,0.292 18 false 8, 16 3.635,0.417 4.146,0.698 0.51,0.281 18 false 15 3.635,1.854 4.146,2.135 0.51,0.281 18 false 5 0.594,5.417 1.573,5.708 0.979,0.292 18 false 7, 9, 14 4.5,5.458 5.542,5.729 1.042,0.271 18 false 6, 10, 13 1.677,4.677 2.188,4.958 0.51,0.281 18 false 4 0.74,1.75 1.25,2.031 0.51,0.281 18 false 3 1.813,3.573 2.323,3.854 0.51,0.281 18 false 2 3.25,1.375 3.51,1.615 0.26,0.24 10 false x2 2.021,1.75 2.281,1.99 0.26,0.24 10 false x2 2.625,5.063 2.885,5.302 0.26,0.24 10 false x2 0.323,4.031 0.583,4.271 0.26,0.24 10 false x2 3.521,3.302 3.719,3.5 0.198,0.198 10 false 5.573,1.01 5.885,1.208 0.313,0.198 10 false *1 2.771,5.333 3.49,5.5 0.719,0.167 8 false 92 (938, 68) 6.156,0.51 6.948,0.833 0.792,0.323 18 false 20 4.885,0.063 6.573,0.479 1.688,0.417 18 false 11, 12, 18, 19 0.854,1.323 1.719,1.51 0.865,0.188 8 false 270 (2753, 199) 5.49,1.813 6.427,1.979 0.938,0.167 8 false 8.5 (87, 75 in.*lbf) 6.302,1.302 7,1.51 0.698,0.208 8 false 29 (296, 21) 4.625,2.635 5.344,2.802 0.719,0.167 8 false 49 (500, 36) 0.844,3.292 1.708,3.479 0.865,0.188 8 false 107 (1091, 79) 6.333,2.958 6.49,3.156 0.156,0.198 10 false 5.104,2.979 5.979,3.135 0.875,0.156 8 false 216 (2203, 159)

Procedure Part Name Code
Z101186

Z101188

Z101187

2 FRONT AXLE ASSEMBLY - (Click here) - -
3 FRONT DRIVE SHAFT ASSEMBLY 43420 (Click here) - -
4 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY 48069 - - -
5 TIE ROD END SUB-ASSEMBLY 45047 (Click here) - -
6 INSTALL FRONT DISC 43512 (Click here) - -
7 INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY - (Click here) - -
8 INSTALL FRONT AXLE SHAFT NUT 43502H (Click here) - -
9 SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY - (Click here) - -
10 REMOVE FRONT DISC 43512 (Click here) - -
11 INSPECT FRONT AXLE HUB BEARING LOOSENESS - (Click here) - -
12 INSPECT FRONT AXLE HUB RUNOUT - (Click here) - -
13 INSTALL FRONT DISC 43512 (Click here) - -
14 INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY - (Click here) - -
15 FRONT SPEED SENSOR 89543 (Click here) - -
16 STAKE FRONT AXLE SHAFT NUT 43502H (Click here) - -
17 FRONT WHEEL - - - -
18 INSPECT AND ADJUST FRONT WHEEL ALIGNMENT - (Click here) - -
19 CHECK FOR SPEED SENSOR SIGNAL - (Click here) - -
20 PERFORM CALIBRATION - - - (Click here)

*1 FRONT FLEXIBLE HOSE - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Non-reusable part
V100135

Toyota Body Grease W
V103638

Do not apply lubricants to the threaded parts

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

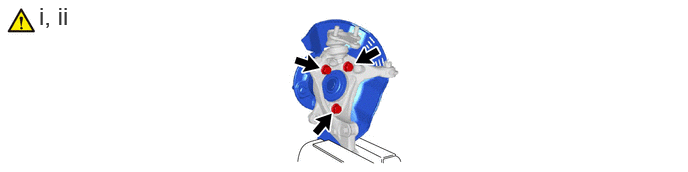

Hide 43502C 1.INSTALL FRONT AXLE HUB SUB-ASSEMBLY

a.
C438020N04
0.406,0.021 1.781,0.375 1.375,0.354 18 false i, ii

i.

Secure the steering knuckle between aluminum plates in a vise.

NOTICE:

Do not overtighten the vise.



ii.

Install the front axle hub sub-assembly and front disc brake dust cover to the steering knuckle with the 3 bolts.

Torque:
130 N*m (1326 kgf*cm, 96 ft.*lbf)

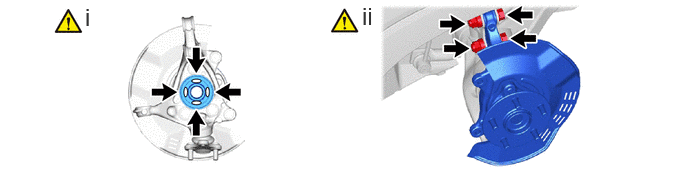

Hide 2.INSTALL FRONT AXLE ASSEMBLY

a.
C438021C04
0.885,0.031 1.167,0.385 0.281,0.354 18 false i 3.771,0.021 4.052,0.375 0.281,0.354 18 false ii
V100135

Toyota Body Grease W - -


i.

Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota Body Grease W to each of the 4 areas shown in the illustration.


ii.

Install the front axle assembly to the front shock absorber assembly with the 2 bolts and 2 nuts.

Torque:
270 N*m (2753 kgf*cm, 199 ft.*lbf)

NOTICE:
·

Do not apply lubricants to the steering knuckle and shock absorber contact surfaces.

·

When installing the nuts, keep the bolts from rotating.



HINT:

The bolts can be installed in either direction, however, make sure that they are both installed in the same direction.

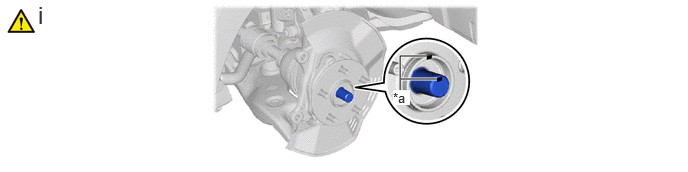

Hide 43420 3.INSTALL FRONT DRIVE SHAFT ASSEMBLY

a.
C438022C03
4.438,0.583 4.167,0.583 4.167,0.583 4.167,0.938 true 4.177,0.823 4.552,0.823 true 0.396,0.01 0.677,0.365 0.281,0.354 18 false i 4.094,0.938 4.271,1.094 0.177,0.156 10 true *a
*a Matchmark - -


i.

Align the matchmarks on the front drive shaft assembly and front axle hub sub-assembly, and install the front drive shaft assembly to the front axle assembly.

NOTICE:
·

Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

·

Check that there is no foreign matter on the speed sensor rotor or contact surfaces.

·

Do not damage the front drive shaft outboard joint boot.

·

Do not damage the front disc brake dust cover.

·

Do not damage the speed sensor rotor.





Hide 48069 4.CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Torque:
92 N*m (938 kgf*cm, 68 ft.*lbf)

Hide 45047 5.CONNECT TIE ROD END SUB-ASSEMBLY

Hide 43512 6.INSTALL FRONT DISC

Hide 7.INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

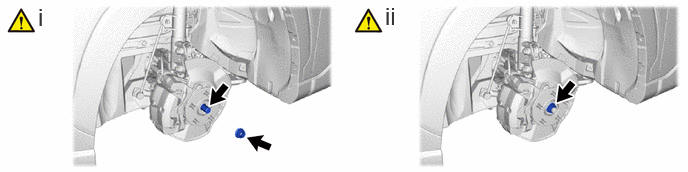

Hide 43502H 8.INSTALL FRONT AXLE SHAFT NUT

a.
C438023N02
0.396,0.031 0.677,0.385 0.281,0.354 18 false i 4.01,0.021 4.292,0.375 0.281,0.354 18 false ii

i.

Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.

NOTICE:
·

Be sure to perform this work even when using a new front drive shaft assembly.

·

Keep the threaded parts free of oil and foreign matter.




ii.

Using a 30 mm deep socket wrench, while applying the brakes, temporarily install the front axle shaft nut.

Torque:
216 N*m (2203 kgf*cm, 159 ft.*lbf)

NOTICE:

Stake the front axle shaft nut after inspecting for looseness and runout in the following steps.




Hide 9.SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

Hide 43512 10.REMOVE FRONT DISC

Hide 43512 13.INSTALL FRONT DISC

Hide 14.INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

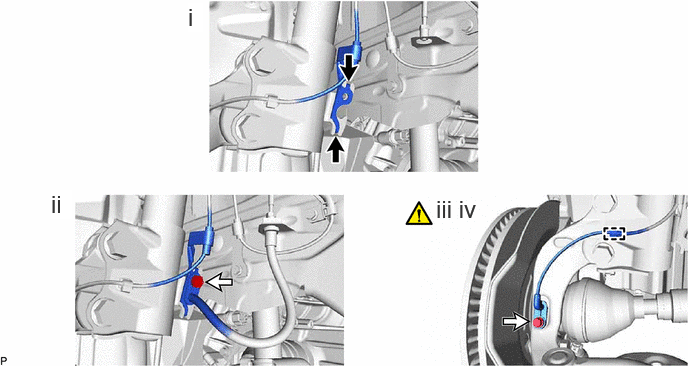

Hide 89543 15.INSTALL FRONT SPEED SENSOR

Z101186

NOTICE:

Do not twist the front speed sensor when installing it.



a.
C463503C02
1.958,0.031 2.115,0.333 0.156,0.302 18 true i 0.531,1.979 0.75,2.281 0.219,0.302 18 true ii 4.542,2.031 5.271,2.417 0.729,0.385 18 false iii iv
V100135

Hook - -


i.

Set the 2 hooks of the front speed sensor to the front shock absorber assembly.


ii.

Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)


iii.

Install the front speed sensor to the steering knuckle with the bolt.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:
·

Prevent foreign matter from attaching to the front speed sensor tip.

·

Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

·

After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.




iv.

Engage the clamp to the front shock absorber assembly.

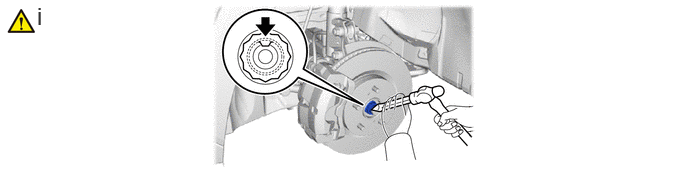

Hide 43502H 16.STAKE FRONT AXLE SHAFT NUT

a.
C438889N02
0.385,0.021 0.667,0.375 0.281,0.354 18 false i

i.

Using a chisel and hammer, stake the front axle shaft nut.
