NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  Rear Television Camera Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Rear Television Camera Communication Stop Mode Communication stop for "Parking Assist Monitor System / Rear Camera" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Rear television camera assembly branch line or connector

·

Power source circuit of rear television camera assembly

·

Rear television camera assembly ground circuit

·

Rear television camera assembly

·

Radio and display receiver assembly

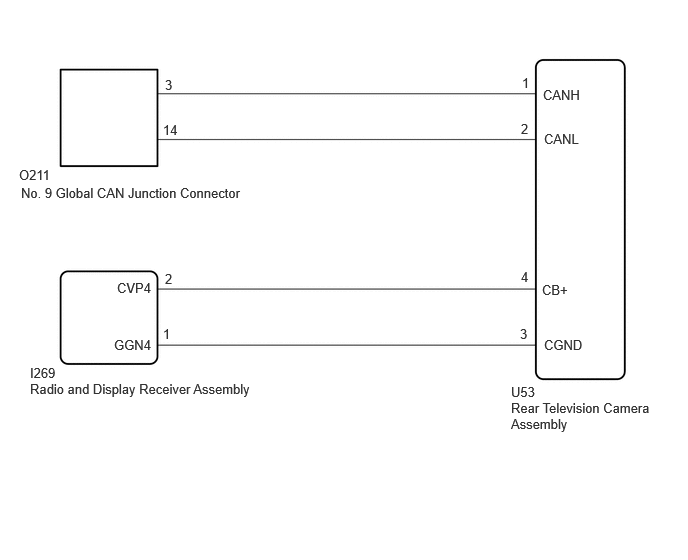

WIRING DIAGRAM

C382790E57
0.198,1.74 0.813,1.938 0.615,0.198 10 false O211 0.219,1.927 2.635,2.167 2.417,0.24 10 false No. 9 Global CAN Junction Connector 1.698,1.271 2.313,1.469 0.615,0.198 10 false 14 1.719,0.802 2.333,1 0.615,0.198 10 false 3 5.656,0.906 6.271,1.104 0.615,0.198 10 false CANH 5.667,1.365 6.281,1.563 0.615,0.198 10 false CANL 5.427,1.26 6.042,1.458 0.615,0.198 10 false 2 5.438,0.781 6.052,0.979 0.615,0.198 10 false 1 5.646,2.938 6.26,3.135 0.615,0.198 10 false CB+ 5.667,3.51 6.281,3.708 0.615,0.198 10 false CGND 5.417,3.396 6.031,3.594 0.615,0.198 10 false 3 5.427,2.802 6.042,3 0.615,0.198 10 false 4 5.323,4 5.938,4.198 0.615,0.198 10 false U53 5.323,4.167 6.823,4.615 1.5,0.448 10 false Rear Television Camera Assembly 0.313,3.802 0.927,4 0.615,0.198 10 false I269 0.313,3.969 2.938,4.229 2.625,0.26 10 false Radio and Display Receiver Assembly 1.188,3.51 1.802,3.708 0.615,0.198 10 false GGN4 1.219,2.917 1.729,3.135 0.51,0.219 10 false CVP4 1.719,2.823 2.333,3.021 0.615,0.198 10 false 2 1.698,3.396 2.313,3.594 0.615,0.198 10 false 1

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (REAR TELEVISION CAMERA ASSEMBLY BRANCH LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the rear television camera assembly connector.


c.
C453860C24
1.417,0.188 1.917,0.438 0.5,0.25 0.75,1.813 1.49,1.156 true 2.021,1.823 1.5,1.354 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 1.552,0.229 1.865,0.427 0.313,0.198 10 false U53 0.542,1.833 1.167,2.052 0.625,0.219 10 false CANH 1.875,1.833 2.5,2.052 0.625,0.219 10 false CANL

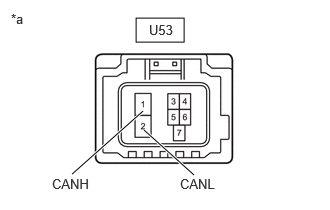

*a Front view of wire harness connector
(to Rear Television Camera Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
U53-1 (CANH) - U53-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C453860C25
1.417,0.188 1.917,0.438 0.5,0.25 1.792,1.094 0.927,1.792 true 1.927,1.094 2.833,1.823 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 1.542,0.229 1.854,0.427 0.313,0.198 10 false U53 2.719,1.844 3.083,2.042 0.365,0.198 10 false CB+ 0.708,1.833 1.24,2.073 0.531,0.24 10 false CGND

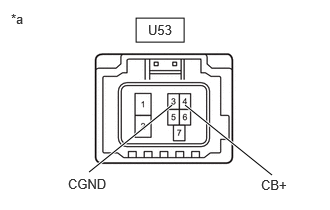

*a Front view of wire harness connector
(to Rear Television Camera Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
U53-3 (CGND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
U53-4 (CB+) - Body ground Ignition switch ACC 5.5 to 7.05 V



Result:
Proceed to
OK
NG



OK

REPLACE REAR TELEVISION CAMERA ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL


NG

3.CHECK HARNESS AND CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY)
3.CHECK HARNESS AND CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY)
a.

Disconnect the I269 radio and display receiver assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
U53-4 (CB+) - I269-2 (GVP4) Always Below 1 Ω
U53-3 (CGND) - I269-1 (GGN4) Always Below 1 Ω
U53-4 (CB+) or I269-2 (GVP4) - Body ground Always 10 kΩ or higher
U53-3 (CGND) or I269-1 (GGN4) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
