RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509300 FRONT SEAT OUTER BELT ASSEMBLY A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

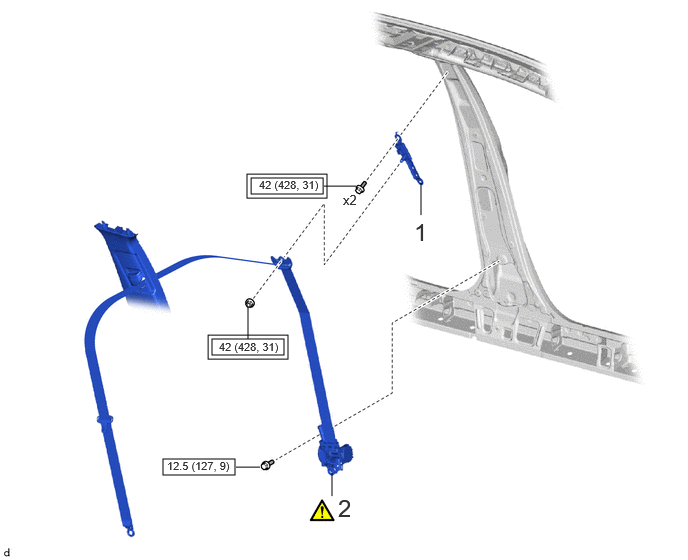

COMPONENTS (INSTALLATION)

2.208,3.531 2.958,3.698 0.75,0.167 2.167,3.49 3,3.74 0.833,0.25 2.615,1.854 3.365,2.021 0.75,0.167 2.573,1.813 3.406,2.063 0.833,0.25 1.698,4.781 2.448,4.948 0.75,0.167 3.458,4.927 3.458,5.167 false 4.385,1.906 4.385,2.24 false 2.583,3.198 2.583,3.531 false 3.375,1.938 3.708,1.938 false 2.708,4.865 2.458,4.865 false 3.521,5.146 4.073,5.5 0.552,0.354 18 false 2 4.313,2.271 4.865,2.625 0.552,0.354 18 false 1 3.573,2 3.885,2.198 0.313,0.198 10 false x2 2.281,3.542 3.094,3.708 0.813,0.167 8 false 42 (428, 31) 1.74,4.781 2.448,4.948 0.708,0.167 8 false 12.5 (127, 9) 2.698,1.854 3.51,2.021 0.813,0.167 8 false 42 (428, 31)

Procedure		Part Name Code
1	FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY	73200A	(202307,999999,_58,_114202,_0509300,RM100000002BZY8_01_0022,)	-	-
2	FRONT SEAT OUTER BELT ASSEMBLY	73220	(202307,999999,_58,_114202,_0509300,RM100000002BZY8_01_0023,)	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

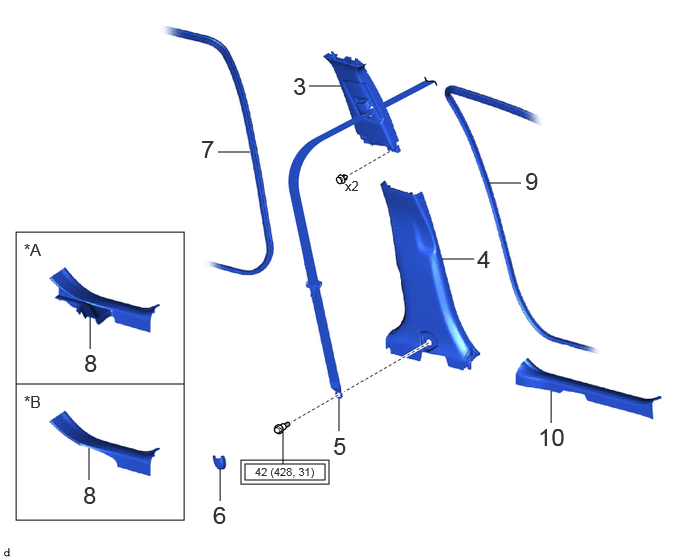

0.167,2.417 1.917,5.417 1.75,3 2.552,4.833 3.385,5 0.833,0.167 2.51,4.792 3.427,5.042 0.917,0.25 3.531,4.49 3.531,4.156 false 5.427,1.906 5.094,1.906 false 0.938,3.635 0.938,3.302 false 0.927,5 0.927,4.667 false 0.167,4 1.917,4 false 2.604,1.583 2.271,1.583 false 3.552,0.896 3.219,0.896 false 4.938,2.698 4.604,2.698 false 2.292,5.219 2.292,4.885 false 5.74,4.406 5.74,4.073 false 2.948,4.833 2.948,4.5 false 3.052,0.75 3.333,1.104 0.281,0.354 18 false 3 4.969,2.552 5.25,2.906 0.281,0.354 18 false 4 3.469,4.5 3.75,4.854 0.281,0.354 18 false 5 2.219,5.219 2.5,5.573 0.281,0.354 18 false 6 2.094,1.406 2.5,1.771 0.406,0.365 18 false 7 0.875,3.635 1.333,3.99 0.458,0.354 18 false 8 5.469,1.74 5.885,2.094 0.417,0.354 18 false 9 5.604,4.406 6.01,4.792 0.406,0.385 18 false 10 3.594,1.854 3.906,2.052 0.313,0.198 10 false x2 0.25,2.5 0.625,2.74 0.375,0.24 12 false *A 0.25,4.083 0.625,4.323 0.375,0.24 12 false *B 0.865,5.01 1.417,5.375 0.552,0.365 18 false 8 2.656,4.844 3.479,5.01 0.823,0.167 8 false 42 (428, 31)

Procedure		Part Name Code
3	CENTER PILLER UPPER GARNISH	62420A	-	-	-
4	CENTER PILLAR LOWER GARNISH	62414A	-	-	-
5	FRONT SEAT OUTER BELT ASSEMBLY	73220	-	-	-
6	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
7	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
8	REAR DOOR SCUFF PLATE	67918	-	-	-
9	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
10	FRONT DOOR SCUFF PLATE	67914B	-	-	-

*A	for Gasoline Model	*B	for HEV Model
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

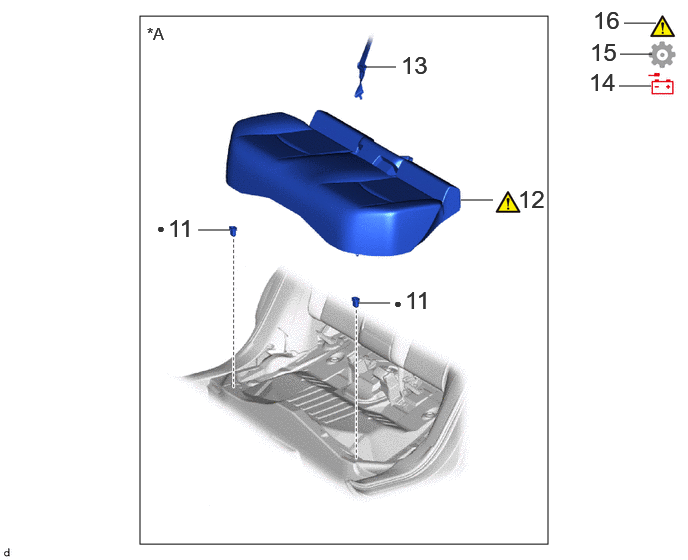

1.458,0.167 5.708,5.667 4.25,5.5 2.063,2.396 2.396,2.396 false 3.729,3.156 4.063,3.156 false 4.802,2.083 5.135,2.083 false 3.792,0.698 4.125,0.698 false 6.5,0.24 6.833,0.24 false 6.458,0.563 6.792,0.563 false 6.448,0.896 6.781,0.896 false 4.177,0.531 4.729,0.885 0.552,0.354 18 false 13 4.104,3.073 4.26,3.271 0.156,0.198 10 false ● 1.635,2.292 1.792,2.49 0.156,0.198 10 false ● 5.396,1.927 5.948,2.281 0.552,0.354 18 false 12 1.75,2.229 2.302,2.583 0.552,0.354 18 false 11 4.219,2.979 4.771,3.333 0.552,0.354 18 false 11 6.177,0.063 6.646,0.396 0.469,0.333 18 false 16 6.135,0.708 6.688,1.063 0.552,0.354 18 false 14 1.531,0.25 1.906,0.49 0.375,0.24 12 false *A 6.146,0.396 6.958,0.729 0.813,0.333 18 false 15

Procedure		Part Name Code
11	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
12	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_114202,_0509300,RM100000002BZY8_01_0083,)	-	-
13	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
14	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
15	SRS WARNING LIGHT	-	(202307,999999,_58,_114202,_0509300,RM100000002BZY8_01_0065,)	-	-
16	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

*A	for Gasoline Model	-	-
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

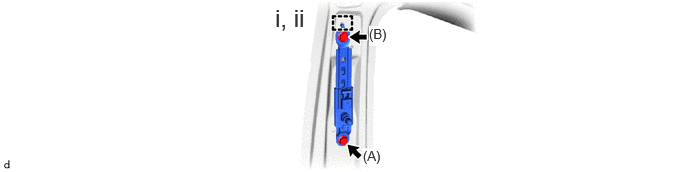

Hide Display 73200A 1.INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

3.844,0.271 4.063,0.479 0.219,0.208 10 true (B) 3.781,1.542 4,1.75 0.219,0.208 10 true (A) 2.865,0.042 4.24,0.396 1.375,0.354 18 false i, ii

Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

ii.

Fully tighten the bolt (A) and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

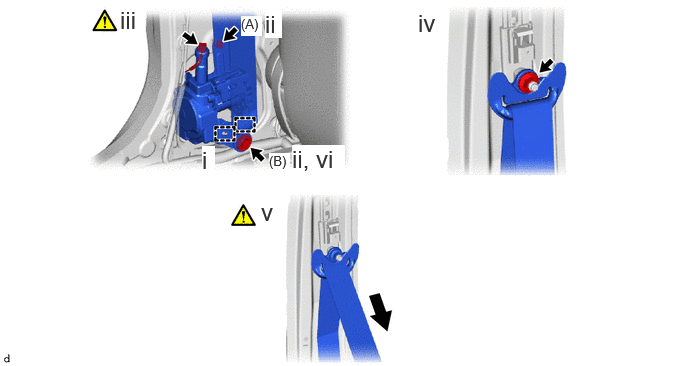

Hide Display 73220 2.INSTALL FRONT SEAT OUTER BELT ASSEMBLY

1.25,0.063 1.469,0.354 0.219,0.292 18 false iii 2.51,0.167 2.729,0.375 0.219,0.208 10 true (A) 2.802,1.594 3.021,1.802 0.219,0.208 10 true (B) 4.354,0.094 4.719,0.375 0.365,0.281 18 false iv 2.719,2.063 3.083,2.344 0.365,0.281 18 false v 2.76,0.104 2.938,0.396 0.177,0.292 18 true ii 2.104,1.521 2.24,1.802 0.135,0.281 18 true i 3.042,1.51 3.594,1.823 0.552,0.313 18 true ii, vi

Engage the 2 guides and temporarily install the front seat outer belt assembly with the 2 bolts.

ii.

Fully tighten the bolt (A) and then the bolt (B) to install the front seat outer belt assembly.

Torque:: Bolt (A) : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt (B) : 42 N*m (428 kgf*cm, 31 ft.*lbf)

iii.

Connect the pretensioner connector.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

iv.

Connect the shoulder anchor of the front seat outer belt assembly with the nut.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Check that the ELR locks.

NOTICE:: This check should be performed with the front seat outer belt assembly installed to the vehicle.

With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

vi.

Remove the bolt (B) to disconnect the floor anchor of the front seat outer belt assembly.

Hide Display 62420A 3.INSTALL CENTER PILLER UPPER GARNISH

Hide Display 62414A 4.INSTALL CENTER PILLAR LOWER GARNISH

Hide Display 73220 5.CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73233 6.INSTALL LAP BELT OUTER ANCHOR COVER

Hide Display 62332A 7.CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Hide Display 67918A 8.INSTALL REAR DOOR SCUFF PLATE

Hide Display 62312B 9.CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Hide Display 67914B 10.INSTALL FRONT DOOR SCUFF PLATE

Hide Display 72693 11.INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Hide Display 12.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZY2_01_0021,)

Hide Display 73350C 13.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Hide Display 14.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0505262,RM100000002CQ1C,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 15.INSPECT SRS WARNING LIGHT

Click here(

202201,999999,_58,_115188,_0511913,RM1000000020FQR,)

Hide Display 16. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
