RM38T0EC _58 Vehicle Interior _114203 SEAT _0509291 FRONT SEAT ASSEMBLY(for Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Manual Seat)  INSTALLATION


CAUTION / NOTICE / HINT

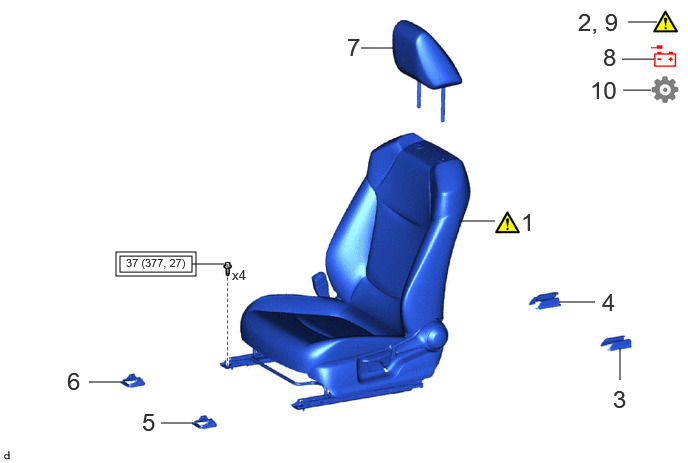

COMPONENTS (INSTALLATION)
B631775N01
1.25,2.667 2,2.833 0.75,0.167 1.208,2.625 2.042,2.875 0.833,0.25 6.542,0.229 6.844,0.229 false 6.479,0.615 6.813,0.615 false 6.49,0.938 6.781,0.938 false 3.76,0.5 4.094,0.5 false 4.781,2.302 5.156,2.302 false 5.823,3.146 6.198,3.146 false 6.458,3.958 6.458,3.625 false 1.677,4.406 2.01,4.406 false 0.927,3.979 1.26,3.979 false 2,2.75 2.333,2.75 false 5.427,2.167 5.708,2.521 0.281,0.354 18 false 1 6.021,0.083 6.583,0.365 0.563,0.281 18 false 2, 9 6.281,0.448 6.771,0.74 0.49,0.292 18 false 8 6.146,0.792 6.635,1.083 0.49,0.292 18 false 10 6.385,4.01 6.667,4.365 0.281,0.354 18 false 3 6.271,3 6.552,3.354 0.281,0.354 18 false 4 3.615,0.344 3.896,0.698 0.281,0.354 18 false 7 1.479,4.25 1.76,4.604 0.281,0.354 18 false 5 0.698,3.823 0.979,4.177 0.281,0.354 18 false 6 2.417,2.781 2.729,2.979 0.313,0.198 10 false x4 1.313,2.667 2.781,2.823 1.469,0.156 8 false 37 (377, 27)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT SEAT ASSEMBLY - (Click here) - -
2 INSPECT SEAT SLIDE ADJUSTER LOCK - (Click here) - -
3 SEAT TRACK OUTER COVER 72138 - - -
4 SEAT TRACK BRACKET INNER COVER 72158 - - -
5 FRONT SEAT TRACK BRACKET OUTER COVER 72124 - - -
6 FRONT SEAT TRACK BRACKET INNER COVER 72128A - - -
7 FRONT SEAT HEADREST ASSEMBLY 71910A - - -
8 CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
9 INSPECT SRS WARNING LIGHT - (Click here) - -
10 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

CAUTION / NOTICE / HINT

CAUTION:
B585480

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY

a.
B582376N01
0.375,0.01 0.646,0.281 0.271,0.271 18 false i

i.

Place the front seat assembly in the cabin as shown in the illustration.

NOTICE:
·

2 or more people are required when reinstalling the front seat assembly into the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly, body exterior or body interior.





b.

Front Seat Side Airbag:

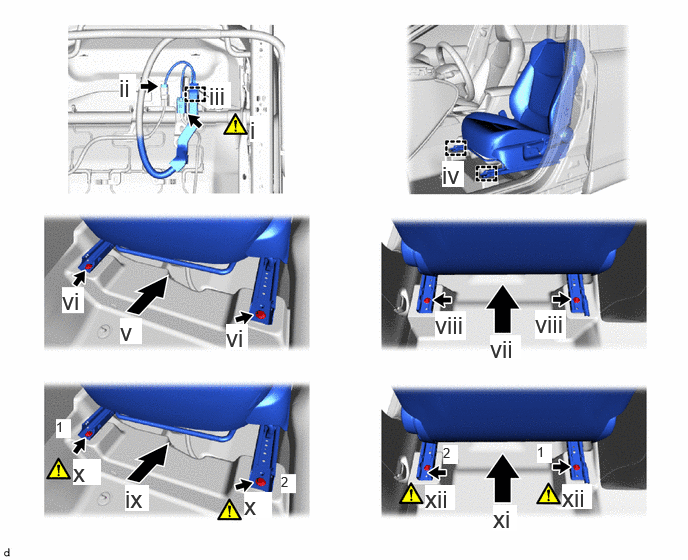

B582377N03
2.604,1.208 2.781,1.479 0.177,0.271 18 true i 5.104,3.49 5.427,3.74 0.323,0.25 18 true vii 2.177,0.854 2.406,1.125 0.229,0.271 18 true iii 2.354,3.375 2.583,3.646 0.229,0.271 18 true vi 4.604,1.677 4.833,1.948 0.229,0.271 18 true iv 4.531,3.24 4.854,3.542 0.323,0.302 18 true viii 1.25,3.313 1.479,3.583 0.229,0.271 18 true v 0.646,2.99 0.875,3.26 0.229,0.271 18 true vi 0.76,4.781 1.052,5.052 0.292,0.271 18 true x 1.302,5.052 1.552,5.323 0.25,0.271 18 true ix 5.135,5.26 5.385,5.531 0.25,0.271 18 true xi 1.24,0.771 1.417,1.042 0.177,0.271 18 true ii 5.573,3.229 5.896,3.531 0.323,0.302 18 true viii 2.542,5.125 2.833,5.396 0.292,0.271 18 true x 4.427,5.052 4.74,5.313 0.313,0.26 18 true xii 5.854,5.042 6.167,5.302 0.313,0.26 18 true xii 0.583,4.365 0.74,4.563 0.156,0.198 10 true 1 2.927,4.938 3.083,5.135 0.156,0.198 10 true 2 4.615,4.635 4.771,4.833 0.156,0.198 10 true 2 5.594,4.625 5.75,4.823 0.156,0.198 10 true 1

i.

Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Connect the connector.


iii.

Engage the clamp.


iv.

Insert the 2 location pins of the front seat assembly through the 2 body holes, place the front seat assembly and make sure that the inner and outer seat tracks are locked securely.


v.

Operate the seat track adjusting handle to move the front seat assembly to the rearmost position.


vi.

Temporarily install the 2 bolts on the front side of the front seat assembly.


vii.

Operate the seat track adjusting handle to move the front seat assembly to the frontmost position.


viii.

Temporarily install the 2 bolts on the rear side of the front seat assembly.


ix.

Operate the seat track adjusting handle to move the front seat assembly to the rearmost position.


x.

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly in the order shown in the illustration.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)



Hide 2.INSPECT SEAT SLIDE ADJUSTER LOCK

a.

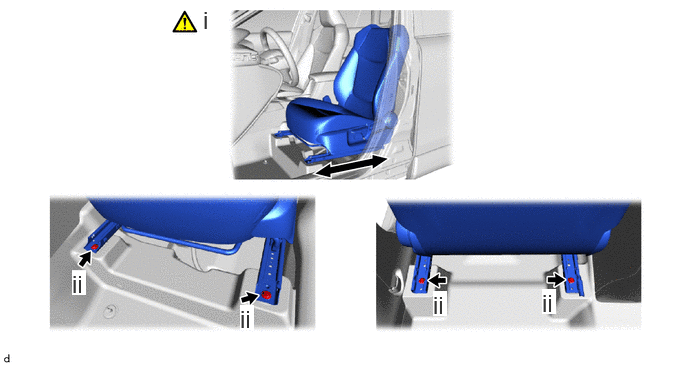

B582378N02
2.115,0.063 2.396,0.417 0.281,0.354 18 false i 0.75,2.813 0.896,3.073 0.146,0.26 18 true ii 2.5,3.177 2.646,3.438 0.146,0.26 18 true ii 4.51,3.031 4.656,3.292 0.146,0.26 18 true ii 5.646,3.01 5.792,3.271 0.146,0.26 18 true ii

i.

While performing a sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously.


ii.

If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.



Hide 72138 3.INSTALL SEAT TRACK OUTER COVER

Hide 72158 4.INSTALL SEAT TRACK BRACKET INNER COVER

Hide 72124 5.INSTALL FRONT SEAT TRACK BRACKET OUTER COVER

Hide 72128A 6.INSTALL FRONT SEAT TRACK BRACKET INNER COVER

Hide 71910A 7.INSTALL FRONT SEAT HEADREST ASSEMBLY

Hide 10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
