RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510633 SIDE AIRBAG SENSOR(for Center Pillar) A

SUPPLEMENTAL RESTRAINT SYSTEMS  SIDE AIRBAG SENSOR(for Center Pillar)  INSTALLATION


CAUTION / NOTICE / HINT

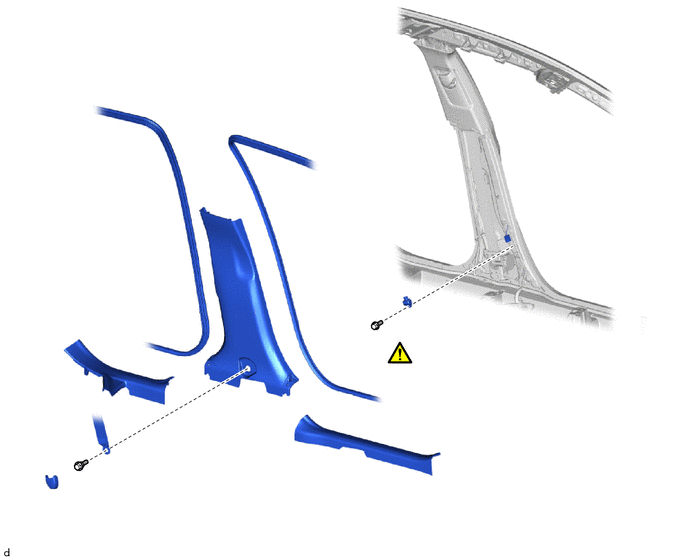

COMPONENTS (INSTALLATION)
B625695
4.26,4.104 5.344,4.271 1.083,0.167 1.198,5.51 2.031,5.677 0.833,0.167 1.156,5.469 2.073,5.719 0.917,0.25 4.219,4.063 5.385,4.313 1.167,0.25 0.76,4.073 0.76,3.74 false 4.25,3.51 4.25,3.177 false 2.438,4.333 2.438,4 false 4.052,5.146 4.052,4.813 false 1.542,2.063 1.875,2.063 false 2.896,2.542 3.229,2.542 false 0.542,5.406 0.542,5.073 false 1.188,5.583 1.021,5.583 1.021,5.583 0.823,4.875 false 4.26,4.188 4.094,4.188 4.094,4.188 3.906,3.417 false 1.375,5.073 1.208,5.073 1.208,5.073 1.115,4.719 false 4.302,3.542 4.854,3.896 0.552,0.354 18 false 1 4,5.177 4.281,5.531 0.281,0.354 18 false 8 3.302,2.365 3.583,2.719 0.281,0.354 18 false 7 0.688,4.094 0.969,4.448 0.281,0.354 18 false 6 1.323,1.896 1.604,2.25 0.281,0.354 18 false 5 2.385,4.365 2.938,4.719 0.552,0.354 18 false 2 0.458,5.438 1.021,5.719 0.563,0.281 18 false 4 1.438,4.896 1.99,5.25 0.552,0.354 18 false 3 1.323,5.521 2.146,5.698 0.823,0.177 8 false 42 (428, 31) 4.344,4.104 5.438,4.292 1.094,0.188 8 false 9.0 (92, 80 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SIDE NO. 1 AIRBAG SENSOR 89831 (Click here) - -
2 CENTER PILLAR LOWER GARNISH 62413A - - -
3 FRONT SEAT OUTER BELT ASSEMBLY 73210 - - -
4 LAP BELT OUTER ANCHOR COVER 73233 - - -
5 REAR DOOR OPENING TRIM WEATHERSTRIP 62331A - - -
6 REAR DOOR SCUFF PLATE 67917A - - -
7 FRONT DOOR OPENING TRIM WEATHERSTRIP 62311B - - -
8 FRONT DOOR SCUFF PLATE 67913B - - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

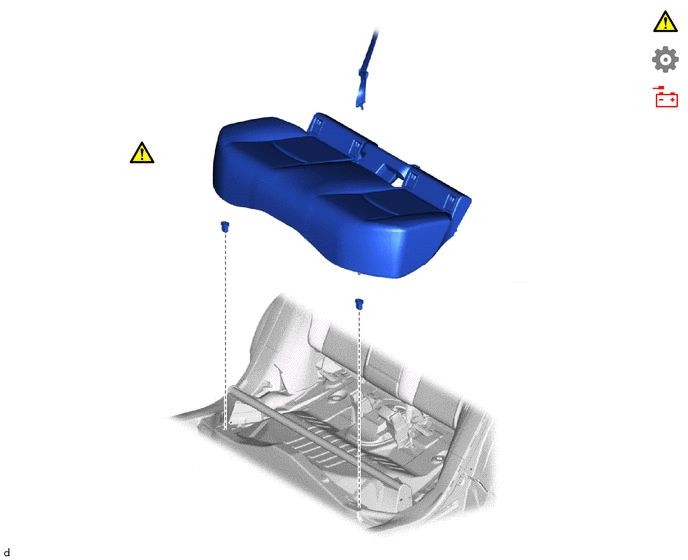

B625697
1.969,2.344 2.302,2.344 false 3.813,0.677 4.146,0.677 false 3.771,3.146 4.104,3.146 false 1.906,1.594 2.24,1.594 false 6.531,0.208 6.865,0.208 false 6.458,0.604 6.792,0.604 false 6.49,1.042 6.823,1.042 false 1.76,2.188 2.042,2.542 0.281,0.354 18 false 9 6.135,0.885 6.521,1.24 0.385,0.354 18 false 12 4.156,3.042 4.313,3.24 0.156,0.198 10 false ● 1.594,1.458 2.146,1.813 0.552,0.354 18 false 10 4.313,2.99 4.594,3.344 0.281,0.354 18 false 9 4.177,0.5 4.729,0.854 0.552,0.354 18 false 11 5.708,0.427 6.51,0.771 0.802,0.344 18 false 13, 15 6.188,0.042 6.573,0.396 0.385,0.354 18 false 14 1.615,2.229 1.771,2.427 0.156,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

9 REAR SEAT CUSHION LOCK HOOK 72693 - - -
10 REAR SEAT CUSHION ASSEMBLY - (Click here) - -
11 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -
12 CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
13 INSPECT SRS WARNING LIGHT - (Click here) - -
14 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)

● Non-reusable part - -

PROCEDURE

Hide 89831 1.INSTALL SIDE NO. 1 AIRBAG SENSOR

a.
B593996C01
1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B
*A w/ Smart Entry and Start System *B w/o Smart Entry and Start System
*a Illumination off - -


i.

Check that the ignition switch is off.


ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


·

If the airbag deploys for any reason, it may cause a serious accident.





b.

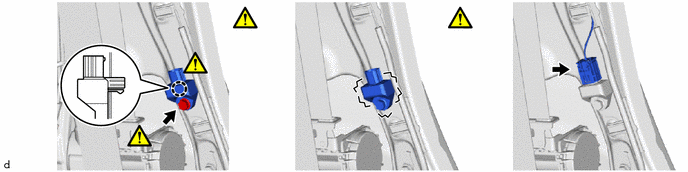

B625698
2.188,0.5 2.323,0.781 0.135,0.281 18 true i 1.604,1.323 1.771,1.594 0.167,0.271 18 true ii 4.969,0.063 5.25,0.417 0.281,0.354 18 false iv 2.708,0.063 2.99,0.417 0.281,0.354 18 false iii

i.

Engage the guide to hold the side No. 1 airbag sensor in place.

NOTICE:

If the side No. 1 airbag sensor has been dropped, replace it with a new one.



ii.

Install the bolt.

Torque:
9.0 N*m (92 kgf*cm, 80 in.*lbf)

NOTICE:
·

When installing the side No. 1 airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

·

Tighten the bolt while holding the side No. 1 airbag sensor because the side No. 1 airbag sensor guide is easily damaged.




iii.

Check that there is no looseness in the installation parts of the side No. 1 airbag sensor.


iv.

Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




Hide 62413A 2.INSTALL CENTER PILLAR LOWER GARNISH

Hide 73233 4.INSTALL LAP BELT OUTER ANCHOR COVER

Hide 62331A 5.CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Hide 67917A 6.INSTALL REAR DOOR SCUFF PLATE

Hide 62311B 7.CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Hide 67913B 8.INSTALL FRONT DOOR SCUFF PLATE

Hide 72693 9.INSTALL REAR SEAT CUSHION LOCK HOOK

Hide 10.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Z101186

·

for Gasoline Model:

Click here(Click here)

·

for HEV Model:

Click here(Click here)



Hide 73350C 11.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Hide 13.INSPECT SRS WARNING LIGHT

Z101186

Click here(Click here)

Hide 14. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
