RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510632 SIDE AIRBAG SENSOR(for Front Door) A

SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Front Door) INSTALLATION

CAUTION / NOTICE / HINT

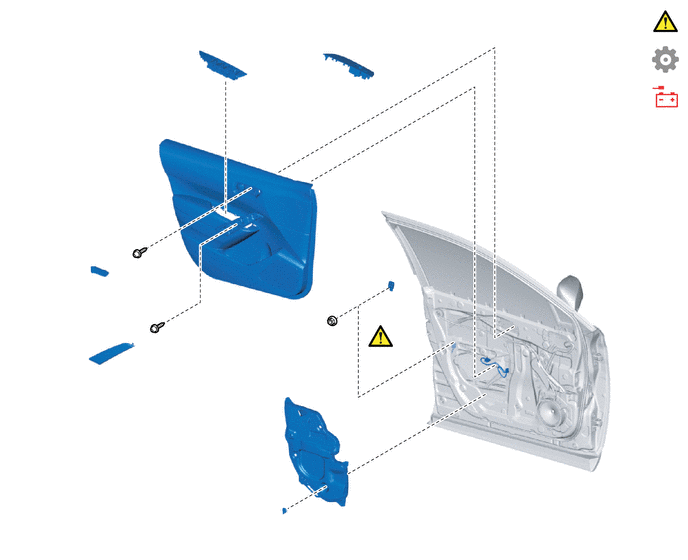

COMPONENTS (INSTALLATION)

1.417,0.25 4,1 2.583,0.75 2.031,3.823 3.115,3.99 1.083,0.167 1.99,3.781 3.156,4.031 1.167,0.25 1.031,3.188 1.031,2.854 false 1.875,0.729 2.208,0.729 false 3.333,0.75 3.667,0.75 false 4.073,3.396 4.073,2.99 false 2.719,3.365 2.719,3.031 false 6.531,0.198 6.865,0.198 false 6.458,0.615 6.792,0.615 false 1.167,3.708 1.167,4.042 false 3.417,5.208 3.417,5.542 false 2.75,0.25 2.75,1 false 6.5,1.052 6.833,1.052 false 3.125,3.917 3.292,3.917 3.292,3.917 3.448,3.375 false 6.344,0.031 6.729,0.385 0.385,0.354 18 false 9 6.135,0.458 6.49,0.729 0.354,0.271 18 false 10 1.51,0.313 1.885,0.552 0.375,0.24 12 false *A 2.813,0.292 3.188,0.531 0.375,0.24 12 false *B 3.083,0.604 3.365,0.958 0.281,0.354 18 false 5 1.667,0.583 1.948,0.938 0.281,0.354 18 false 4 0.969,3.219 1.25,3.573 0.281,0.354 18 false 7 1.104,4.083 1.385,4.438 0.281,0.354 18 false 6 2.635,3.375 2.917,3.729 0.281,0.354 18 false 3 4.115,3.365 4.396,3.719 0.281,0.354 18 false 1 3.354,5.542 3.552,5.813 0.198,0.271 18 false 2 1.635,3.448 1.948,3.646 0.313,0.198 10 false x2 2.979,5.333 3.292,5.531 0.313,0.198 10 false x3 6.281,0.906 6.667,1.26 0.385,0.354 18 false 8 2.115,3.833 3.146,4 1.031,0.167 8 false 9.0 (92, 80 in.*lbf)

Procedure		Part Name Code
1	SIDE AIRBAG PRESSURE SENSOR	8983AA	(202307,999999,_58,_115188,_0510632,RM100000002BZXP_01_0001,)	-	-
2	FRONT DOOR SERVICE HOLE COVER	67832	-	-	-
3	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
4	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	-	-	-
5	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	-	-	-
6	DOOR ASSIST GRIP COVER	74646	-	-	-
7	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	-	-	-
8	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
9	INSPECT SRS WARNING LIGHT	-	(202307,999999,_58,_115188,_0510632,RM100000002BZXP_01_0157,)	-	-
10	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	(202307,999999,_58,_115188,_0510632,RM100000002BZXP_01_0138,)

*A	for Driver Side	*B	for Front Passenger Side
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

PROCEDURE

Hide Display 8983AA 1.INSTALL SIDE AIRBAG PRESSURE SENSOR

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

0.354,0.063 0.635,0.417 0.281,0.354 18 false i 2.865,0.125 3.052,0.427 0.188,0.302 18 true ii 3.104,1 3.354,1.292 0.25,0.292 18 true iii 4.875,0.031 5.125,0.323 0.25,0.292 18 true iv

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

ii.

Engage the claw to hold the side airbag pressure sensor in place.

NOTICE:: If the side airbag pressure sensor has been dropped, replace it with a new one.

iii.

Install a new nut.

Torque:: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

NOTICE:: ·

When installing the side airbag pressure sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.; ·

Do not reuse the nut.

iv.

Check that there is no looseness in the installation parts of the side airbag pressure sensor.

Hide Display 67832 2.INSTALL FRONT DOOR SERVICE HOLE COVER

Hide Display 67602 3.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Hide Display 4.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Hide Display 5.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Hide Display 74646 6.INSTALL DOOR ASSIST GRIP COVER

Hide Display 69284F 7.INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

Hide Display 8.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0505262,RM100000002CQ1C,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 9.INSPECT SRS WARNING LIGHT

Click here(

202201,999999,_58,_115188,_0511913,RM1000000020FQR,)

Hide Display 10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
