RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510631 FRONT AIRBAG SENSOR A

SUPPLEMENTAL RESTRAINT SYSTEMS FRONT AIRBAG SENSOR INSTALLATION

CAUTION / NOTICE / HINT

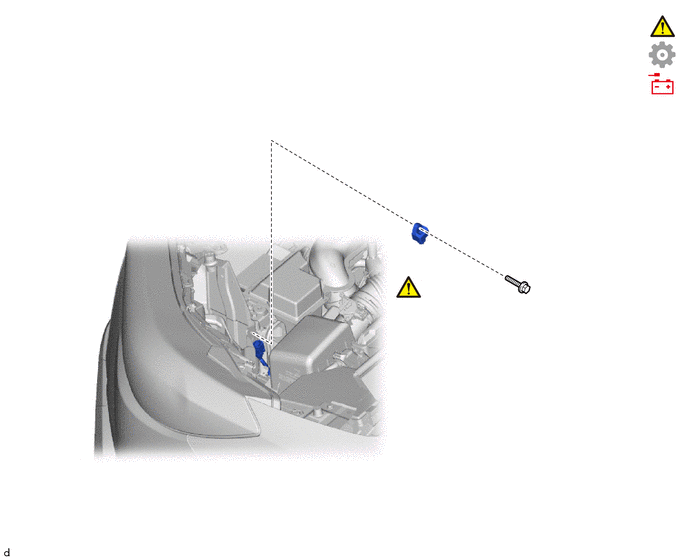

COMPONENTS (INSTALLATION)

4.833,3.302 5.833,3.469 1,0.167 4.792,3.26 5.875,3.51 1.083,0.25 4.375,2.875 4.375,2.542 false 5.344,3.292 5.344,2.958 false 6.5,0.26 6.833,0.26 false 6.427,0.563 6.76,0.563 false 6.448,0.885 6.781,0.885 false 4.406,2.823 4.688,3.177 0.281,0.354 18 false 1 4.885,3.302 5.844,3.469 0.958,0.167 8 false 9.0 (92, 80 in.*lbf) 6.25,0.396 6.583,0.76 0.333,0.365 18 false 4 6.281,0.719 6.563,1.073 0.281,0.354 18 false 2 6.323,0.094 6.865,0.427 0.542,0.333 18 false 3

Procedure		Part Name Code
1	FRONT AIRBAG SENSOR	89174A	(202307,999999,_58,_115188,_0510631,RM100000002BZXN_01_0031,)	-	-
2	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	INSPECT SRS WARNING LIGHT	-	(202307,999999,_58,_115188,_0510631,RM100000002BZXN_01_0130,)	-	-
4	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	(202307,999999,_58,_115188,_0510631,RM100000002BZXN_01_0131,)

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

PROCEDURE

Hide Display 89174A 1.INSTALL FRONT AIRBAG SENSOR

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

1.552,0.938 1.833,1.292 0.281,0.354 18 false i 1.396,0.313 1.677,0.667 0.281,0.354 18 false ii 4.969,0.031 5.25,0.385 0.281,0.354 18 false iv 2.615,0.042 2.896,0.396 0.281,0.354 18 false iii

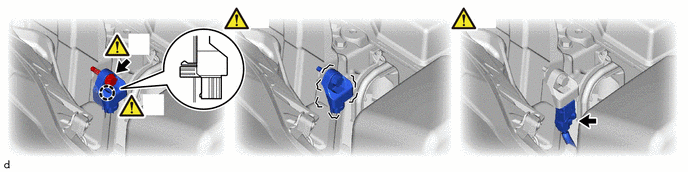

Engage the claw to hold the front airbag sensor in place.

NOTICE:: If the front airbag sensor has been dropped, replace it with a new one.

ii.

Install the bolt.

Torque:: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

iii.

Check that there is no looseness in the installation parts of the front airbag sensor.

NOTICE:: ·

When installing the front airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

·

Tighten the nut while holding the front airbag sensor because the front airbag sensor guide is easily damaged.

iv.

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

Hide Display 2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0505262,RM100000002CQ1C,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 3.INSPECT SRS WARNING LIGHT

Click here(

202201,999999,_58,_115188,_0511913,RM1000000020FQR,)

Hide Display 4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
