RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510630 CENTER AIRBAG SENSOR ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  CENTER AIRBAG SENSOR ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

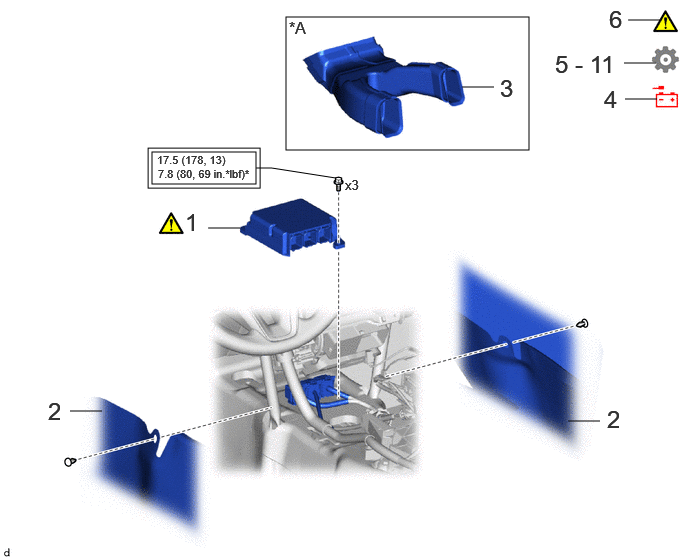

COMPONENTS (INSTALLATION)
B625688N07
1.583,1.583 2.667,1.917 1.083,0.333 1.542,1.542 2.708,1.958 1.167,0.417 2.979,0.177 5.51,1.563 2.531,1.385 6.542,0.208 6.875,0.208 false 6.5,0.656 6.833,0.656 false 2.167,2.375 2.5,2.375 false 0.729,4.281 1.063,4.281 false 5.917,4.385 6.25,4.385 false 4.813,0.906 5.146,0.906 false 6.51,1.031 6.844,1.031 false 2.667,1.75 2.833,1.75 2.833,1.75 3.5,1.854 false 6.323,4.219 6.604,4.573 0.281,0.354 18 false 2 6.344,0.052 6.625,0.406 0.281,0.354 18 false 6 5.781,0.521 6.635,0.906 0.854,0.385 18 false 5 - 11 0.5,4.135 0.781,4.49 0.281,0.354 18 false 2 1.927,2.167 2.208,2.521 0.281,0.354 18 false 1 5.208,0.771 5.49,1.125 0.281,0.354 18 false 3 3.594,1.844 3.906,2.042 0.313,0.198 10 false x3 6.292,0.885 6.573,1.24 0.281,0.354 18 false 4 1.635,1.594 3.354,1.75 1.719,0.156 8 false 17.5 (178, 13) 1.646,1.74 3.365,1.896 1.719,0.156 8 false 7.8 (80, 69 in.*lbf)* 3.01,0.188 3.479,0.438 0.469,0.25 12 false *A

Procedure Part Name Code
Z101186

Z101188

Z101187

1 AIRBAG ECU ASSEMBLY 89170A (Click here) - -
2 FRONT FLOOR CARPET ASSEMBLY 58510D - - -
3 NO. 1 CONSOLE BOX DUCT 58861B - - -
4 CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
5 WRITE VIN/VEHICLE IDENTIFICATION NUMBER - - - (Click here)
6 SWITCHING SPECIFICATION INFORMATION - - - (Click here)
7 UPDATE ECU SECURITY KEY - - - (Click here)
8 ECU CONFIGURATION - - (Click here)
9 INSPECT SRS WARNING LIGHT - - - (Click here)
10 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)
11 PERFORM SYSTEM INITIALIZE - - - (Click here)

*A w/ Rear Air Duct - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a extension wrench

CAUTION / NOTICE / HINT

NOTICE:

After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.


PROCEDURE

Hide 89170A 1.INSTALL AIRBAG ECU ASSEMBLY

a.
B593996C01
1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B
*A w/ Smart Entry and Start System *B w/o Smart Entry and Start System
*a Illumination off - -


i.

Check that the ignition switch is off.


ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


·

If the airbag deploys for any reason, it may cause a serious accident.





b.

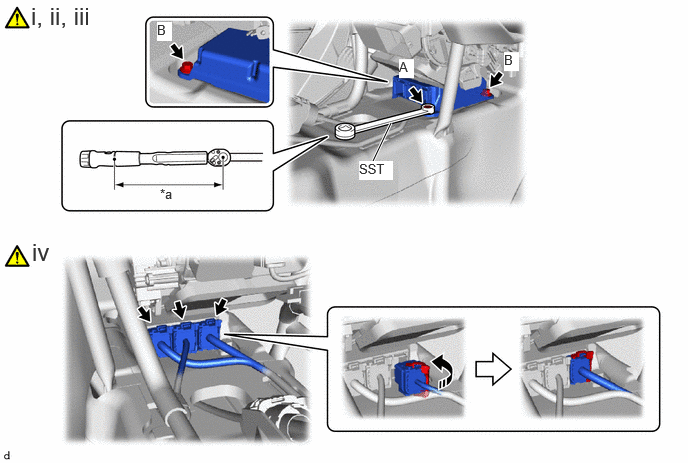

B625689C01
3.885,1.677 4.073,1.281 true 0.323,0.021 1.302,0.406 0.979,0.385 18 false i, ii, iii 0.333,2.479 0.615,2.833 0.281,0.354 18 false iv 1.667,1.938 1.979,2.135 0.313,0.198 10 false *a 4.156,0.615 4.313,0.813 0.156,0.198 10 true A 5.25,0.542 5.406,0.74 0.156,0.198 10 true B 1.635,0.229 1.792,0.427 0.156,0.198 10 true B 3.74,1.677 4.094,1.875 0.354,0.198 10 true SST
*a Torque Wrench Fulcrum Length - -
V113147

Push in - -


i.

Install the airbag ECU assembly with the 2 bolts (B).

Torque:
17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:
·

If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

·

When installing the airbag ECU assembly, make sure that the SRS wiring does not interfere with or is not pinched between other parts.

·

When the ignition switch is first turned to on (IG) after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.




ii.

Using SST, install the bolt (A).

SST
09729-00120

Torque:
Specified tightening torque : 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

7.8 N*m (80 kgf*cm, 69 in.*lbf)




iii.

Check that there is no looseness in the installed parts of the airbag ECU assembly.


iv.

Connect the 3 connectors and push in the lock lever to lock the connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.




Hide 58510D 2.INSTALL FRONT FLOOR CARPET ASSEMBLY

Hide 58861B 3.INSTALL NO. 1 CONSOLE BOX DUCT (w/ Rear Air Duct)

Hide 5. WRITE VIN/VEHICLE IDENTIFICATION NUMBER

a.

If the airbag ECU assembly has been replaced, write VIN/vehicle identification number.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>UTILITY


Hide 9.INSPECT SRS WARNING LIGHT

Z101186

Click here(Click here)

Hide 10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
