RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510629 REAR SEAT SIDE AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  REAR SEAT SIDE AIRBAG ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

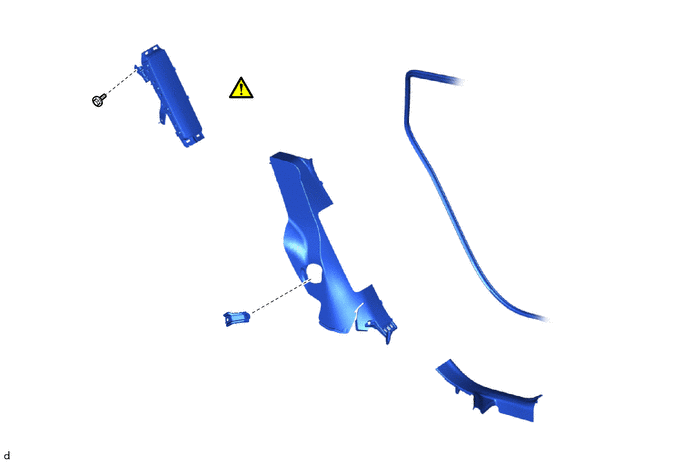

B625731
1.167,3.25 2,3.417 0.833,0.167 1.125,3.208 2.042,3.458 0.917,0.25 0.448,1.438 1.531,1.604 1.083,0.167 0.406,1.396 1.573,1.646 1.167,0.25 1.906,0.917 2.333,0.917 false 2.625,2.083 2.958,2.083 false 2.01,3.333 2.344,3.333 false 4.885,2.583 5.219,2.583 false 5.552,4.25 5.885,4.25 false 1,1.104 1,1.438 false 2.646,0.76 2.927,1.115 0.281,0.354 18 false 1 2.406,1.896 2.688,2.25 0.281,0.354 18 false 2 5.271,2.396 5.552,2.75 0.281,0.354 18 false 4 5.927,4.083 6.208,4.438 0.281,0.354 18 false 5 0.885,3.167 1.167,3.521 0.281,0.354 18 false 3 1.208,3.24 2.177,3.406 0.969,0.167 8 false 18.1 (185, 13) 1.104,0.958 1.354,1.125 0.25,0.167 10 false x2 0.531,1.427 1.667,1.677 1.135,0.25 8 false 8.0 (82, 71 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR SEAT SIDE AIRBAG ASSEMBLY - (Click here) - -
2 REAR SEAT SIDE GARNISH LH 62552F - - -
3 REAR SEAT BACK HINGE SUB-ASSEMBLY LH 71304C - - -
4 REAR DOOR OPENING TRIM WEATHERSTRIP 62332A - - -
5 REAR DOOR SCUFF PLATE LH 67918A - - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

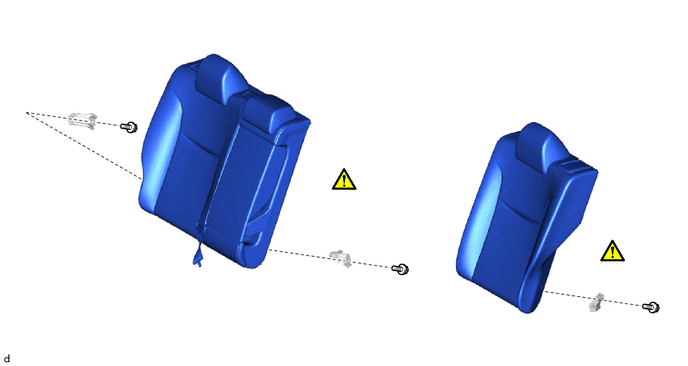

B633268
0.25,0.844 1.083,1.01 0.833,0.167 0.208,0.802 1.125,1.052 0.917,0.25 2.979,2.99 3.896,3.24 0.917,0.25 3.021,3.031 3.854,3.198 0.833,0.167 5.635,3.448 6.469,3.615 0.833,0.167 5.594,3.406 6.51,3.656 0.917,0.25 3,1.875 3.458,1.875 false 5.792,2.594 6.25,2.594 false 3.865,3.115 4.031,3.115 4.031,3.115 4.177,2.844 false 6.469,3.531 6.635,3.531 6.635,3.531 6.781,3.26 false 1.083,0.938 1.25,0.938 1.25,0.938 1.365,1.26 false 3.74,1.719 4.021,2.073 0.281,0.354 18 false 7 6.521,2.438 6.802,2.792 0.281,0.354 18 false 6 4.281,2.708 4.635,2.917 0.354,0.208 10 false x2 0.323,0.844 1.427,1.052 1.104,0.208 8 false 36.8 (375, 27) 3.083,3.042 4.188,3.25 1.104,0.208 8 false 36.8 (375, 27) 5.698,3.458 6.802,3.667 1.104,0.208 8 false 36.8 (375, 27)

Procedure Part Name Code
Z101186

Z101188

Z101187

6 REAR SEATBACK ASSEMBLY LH - (Click here) - -
7 REAR SEATBACK ASSEMBLY RH - (Click here) - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

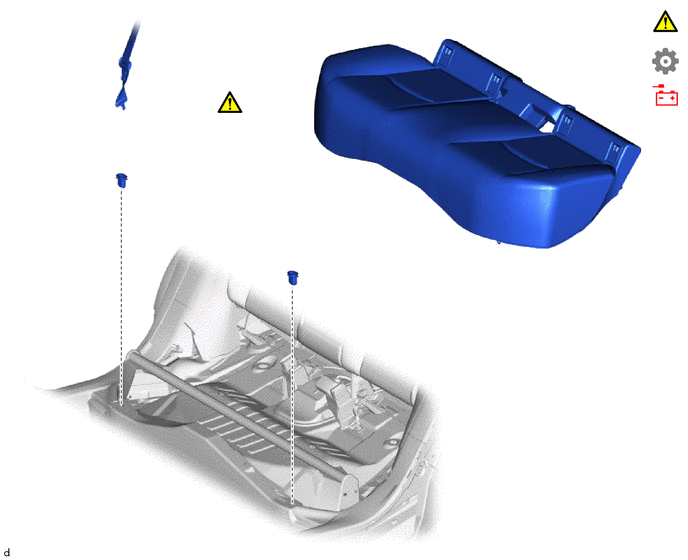

B625732
6.438,0.219 6.771,0.219 false 6.427,0.635 6.76,0.635 false 6.458,1 6.792,1 false 2.813,1.052 3.281,1.052 false 1.354,0.5 1.688,0.5 false 0.875,1.833 1.208,1.833 false 3.104,2.865 3.438,2.865 false 3.479,2.75 3.635,2.948 0.156,0.198 10 false ● 3.604,2.698 3.927,3.031 0.323,0.333 18 false 8 0.542,1.729 0.698,1.927 0.156,0.198 10 false ● 0.667,1.667 0.99,2 0.323,0.333 18 false 8 2.542,0.906 2.865,1.24 0.323,0.333 18 false 9 1.719,0.323 2.042,0.656 0.323,0.333 18 false 10 6.083,0.052 6.406,0.385 0.323,0.333 18 false 12 6.104,0.469 6.542,0.75 0.438,0.281 18 false 13 6.104,0.823 6.438,1.156 0.333,0.333 18 false 11

Procedure Part Name Code
Z101186

Z101188

Z101187

8 REAR SEAT CUSHION LOCK HOOK 72693 - - -
9 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
10 REAR CENTER SEAT OUTER BELT ASSEMBLY - - - -
11 CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
12 INSPECT SRS WARNING LIGHT - (Click here) - -
13 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY

a.

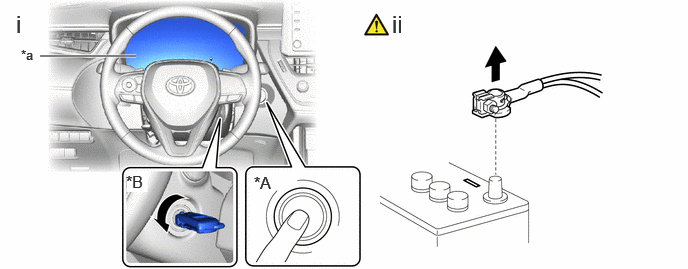

B593996C03
1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B
*A w/ Smart Entry and Start System *B w/o Smart Entry and Start System
*a illumination off - -


i.

Check that the ignition switch is off.


ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.





b.

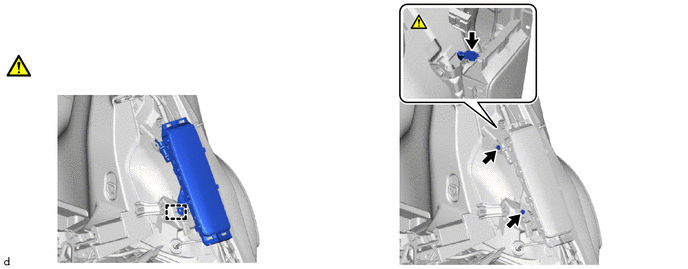

B625728
0.365,0.542 0.646,0.896 0.281,0.354 18 false i 4.51,0.094 4.729,0.375 0.219,0.281 18 true iii 5.052,2.354 5.229,2.625 0.177,0.271 18 true ii 4.823,1.719 5,1.99 0.177,0.271 18 true ii

i.

Engage the claw to install the rear seat side airbag assembly.


ii.

Install the 2 bolts.

Torque:
9.0 N*m (92 kgf*cm, 80 in.*lbf)


iii.

Disconnect the airbag connector.

CAUTION:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




Hide 62552F 2.INSTALL REAR SEAT SIDE GARNISH LH

Hide 71304C 3.INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

Hide 62332A 4.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Hide 67918A 5.INSTALL REAR DOOR SCUFF PLATE LH

Hide 6.INSTALL REAR SEATBACK ASSEMBLY LH

Z101186

Click here(Click here)

Hide 7.INSTALL REAR SEATBACK ASSEMBLY RH

Z101186

Click here(Click here)

Hide 9.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Z101186

·

for Gasoline Model:

Click here(Click here)

·

for HEV Model:

Click here(Click here)



Hide 10.INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

Hide 13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
