SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

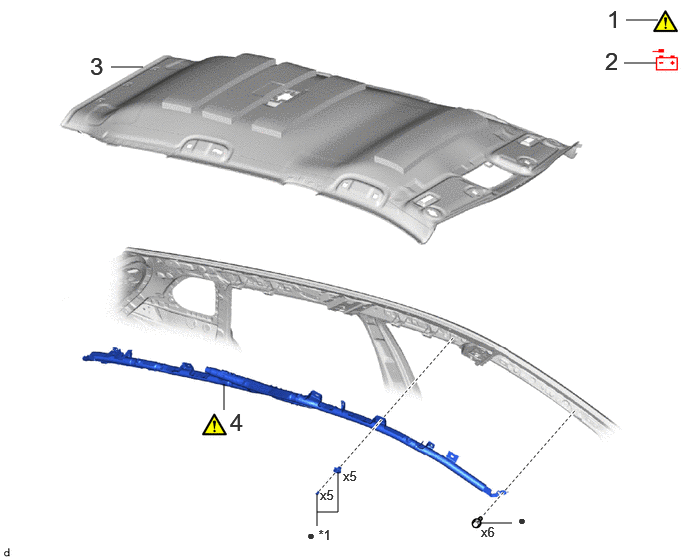

COMPONENTS (REMOVAL)

2.333,4.271 2.333,4 false 6.521,0.208 6.854,0.208 false 6.5,0.656 6.833,0.656 false 3.302,5.333 3.521,5.333 3.521,5.333 3.521,4.917 false 3.302,5.479 3.302,5.146 false 5.333,5.448 5,5.448 false 1.156,0.698 1.49,0.698 false 2.396,4.25 2.677,4.604 0.281,0.354 18 false 4 6.323,0.052 6.604,0.406 0.281,0.354 18 false 1 6.302,0.49 6.583,0.844 0.281,0.354 18 false 2 5.01,5.458 5.323,5.656 0.313,0.198 10 false x6 3.333,5.073 3.646,5.271 0.313,0.198 10 false x5 3.573,4.875 3.885,5.073 0.313,0.198 10 false x5 3.198,5.49 3.604,5.656 0.406,0.167 10 false ● *1 5.396,5.333 5.552,5.531 0.156,0.198 10 false ● 0.938,0.542 1.219,0.896 0.281,0.354 18 false 3

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_115188,_0510627,RM100000002BZWO_01_0659,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	ROOF HEADLINING ASSEMBLY	63310	-	-	-
4	CURTAIN SHIELD AIRBAG ASSEMBLY	62180A	(202307,999999,_58,_115188,_0510627,RM100000002BZWO_01_0001,)	-	-

*1	ROOF SIDE INNER GARNISH CLIP	-	-
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the curtain shield airbag assembly removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; (202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; (202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 63310 3.REMOVE ROOF HEADLINING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ,

Hide Display 62180A 4.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

CAUTION:: ·

When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward.; ·

If the airbag deploys for any reason, it may cause a serious accident.

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

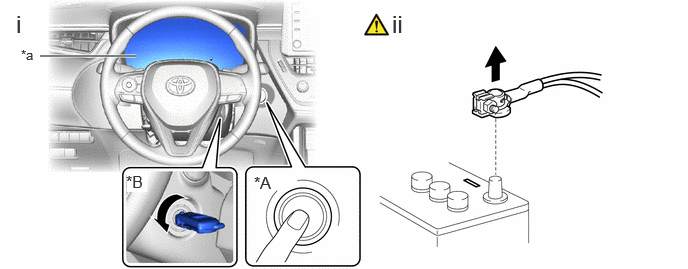

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

4.417,4.542 4.323,5.146 4.323,5.146 5.625,4.875 true 5.302,3.438 5.823,3.646 5.823,3.646 5.573,3.448 true 1.74,4.896 1.135,4.427 true 1.49,0.063 1.656,0.333 0.167,0.271 18 true i 0.813,2.583 1.094,2.938 0.281,0.354 18 false ii 4.51,2.594 4.792,2.948 0.281,0.354 18 false iii 1.552,1.583 1.833,1.938 0.281,0.354 18 false iv 3.583,1.729 3.802,2.01 0.219,0.281 18 true iv 0.813,0.667 1.021,0.938 0.208,0.271 18 true iv 2.969,0.708 3.208,0.979 0.24,0.271 18 true iv 2.708,0.698 2.958,0.969 0.25,0.271 18 true iv 6.719,1.708 6.948,2 0.229,0.292 18 true iv 0.573,4.01 0.781,4.281 0.208,0.271 18 true v 1.771,4.802 2.083,5 0.313,0.198 10 false *b 4.177,5.125 4.49,5.323 0.313,0.198 10 false *b 5.865,3.542 6.177,3.74 0.313,0.198 10 false *a 3.938,0.896 4.146,1.083 0.208,0.188 10 true *1 1.823,0.99 2.021,1.177 0.198,0.188 10 true *1 4.885,1.052 5.104,1.25 0.219,0.198 10 true *1 5.854,1.396 6.073,1.594 0.219,0.198 10 true *1 2.479,0.927 2.677,1.115 0.198,0.188 10 true *1 4.51,3.552 4.708,3.74 0.198,0.188 10 false *1

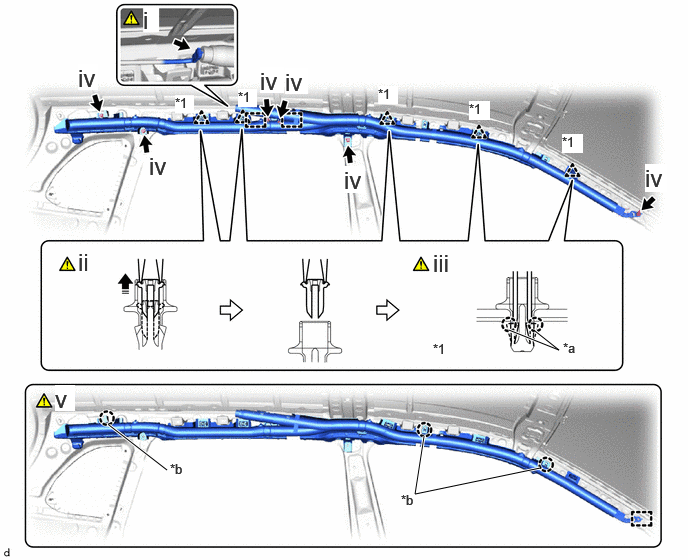

*1	Roof Side Inner Garnish Clip	-	-
*a	Claw (A)	*b	Claw (B)
	Remove in this Direction	-	-

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

ii.

Using needle-nose pliers, remove the pins from the clips.

iii.

Using 2 screwdrivers, disengage the claws (A) of each clip and separate the clips from the vehicle body as shown in the illustration.

HINT:: Separate the clips and curtain shield airbag assembly from the vehicle body as a unit.

iv.

Remove the 6 bolts.

While holding the curtain shield airbag assembly, disengage the hooks and the claws (B), and remove the curtain shield airbag assembly.

Remove the roof side inner garnish clips from the curtain shield airbag assembly.
