RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510626 FRONT PASSENGER AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

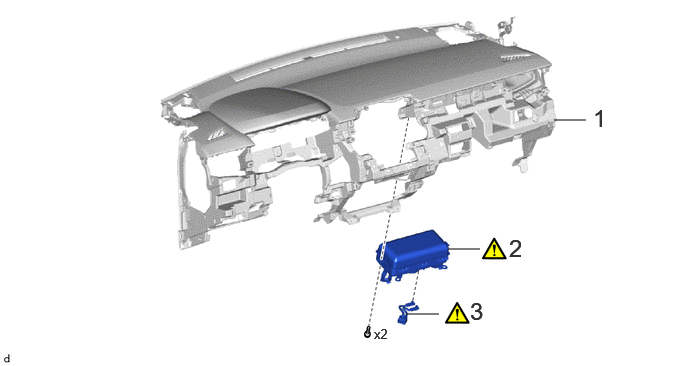

COMPONENTS (REMOVAL)
B632479N01
5.771,1.25 6.104,1.25 false 4.667,2.594 5,2.594 false 4.24,3.271 4.573,3.271 false 6.177,1.083 6.458,1.438 0.281,0.354 18 false 1 5.302,2.438 5.583,2.792 0.281,0.354 18 false 2 4.896,3.094 5.177,3.448 0.281,0.354 18 false 3 3.896,3.396 4.208,3.594 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 INSTRUMENT PANEL SAFETY PAD ASSEMBLY 55400 - - -
2 INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY 73960A (Click here) - -
3 NO. 2 INSTRUMENT PANEL WIRE 82142 (Click here) - -

CAUTION / NOTICE / HINT

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 73960A 2.REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Z101186

CAUTION:

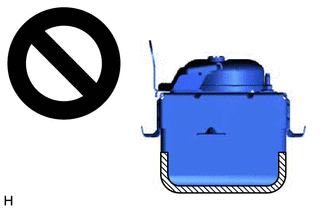

B417757

·

When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.


·

If the airbag deploys for any reason, it may cause a serious accident.




a.

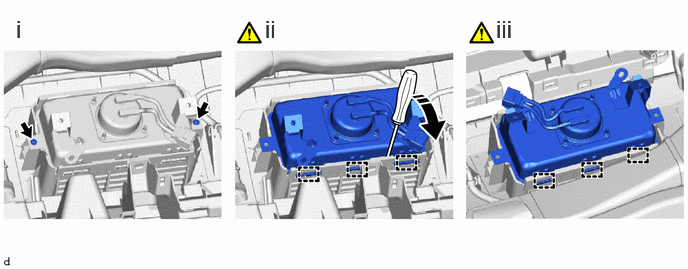

B632480N01
0.167,0.156 0.448,0.51 0.281,0.354 18 false i 2.76,0.156 3.042,0.51 0.281,0.354 18 false ii 5.167,0.156 5.448,0.51 0.281,0.354 18 false iii

i.

Remove the 2 screws.


ii.

Using a screwdriver, pry back the passenger airbag door retainer to disengage the 3 hooks as shown in the illustration.

NOTICE:

Do not damage the deployment surface of the instrument panel passenger airbag assembly.



iii.

Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.



Hide 82142 3.REMOVE NO. 2 INSTRUMENT PANEL WIRE

a.

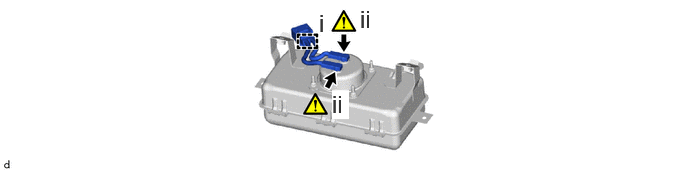

B632481N01
3.323,0.094 3.604,0.448 0.281,0.354 18 false i 3.458,0.938 3.635,1.24 0.177,0.302 18 true ii 3.75,0.052 4.031,0.406 0.281,0.354 18 false ii

i.

Disengage the clamp.


ii.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR
