RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510625 KNEE AIRBAG ASSEMBLY N

SUPPLEMENTAL RESTRAINT SYSTEMS KNEE AIRBAG ASSEMBLY DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.

·

Do not perform this procedure indoors or on rough roads where safety cannot be ensured. Also, do not deploy SRS parts near residential areas.

·

If this procedure is performed indoors or on rough roads where safety cannot be ensured, unforeseen injuries may occur. Also, the deployment noise creates a nuisance to nearby residents.

HINT:: When scrapping a vehicle equipped with an SRS or disposing of the lower No. 1 instrument panel airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

Hide Display 73900 2.DISPOSE OF LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (When Installed to Vehicle)

NOTICE:: ·

When disposing of a lower No. 1 instrument panel airbag assembly, never use the customer's vehicle to deploy the airbag.

·

Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202307,999999,_58,_115188,_0510623,RM100000002BZW7,

SST: 09082-00700

Refer to Precaution.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

Disconnect the cable from the negative (-) auxiliary battery terminal.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the No. 1 instrument panel under cover sub-assembly.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0060,

HINT:: Perform the linked removal procedures until the No. 1 instrument panel under cover sub-assembly step.

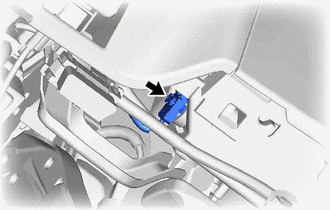

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

Install SST.

CAUTION:: ·

Do not deploy if the lower No. 1 instrument panel airbag assembly is loose.

·

If deployed while the lower No. 1 instrument panel airbag assembly is loose, the lower No. 1 instrument panel airbag assembly may fly off and cause serious injuries.

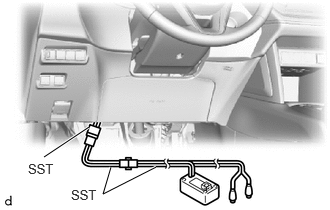

0.458,1.635 0.927,1.323 true 1.156,1.74 1.073,2.021 1.073,2.021 1.625,1.74 true 0.292,1.677 0.646,1.896 0.354,0.219 10 false SST 0.74,1.948 1.052,2.156 0.313,0.208 10 false SST

After connecting the following SST to each other, connect them to the lower No. 1 instrument panel airbag assembly.

SST: 09082-00700
09082-00802 (09082-10801, 09082-20801)

NOTICE:: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

ii.

1.76,0.552 1.99,0.25 1.99,0.25 2.188,0.25 false 0.458,1.167 0.677,1.167 false 0.677,1.167 0.927,1.396 false 2.229,0.167 2.542,0.323 0.313,0.156 10 false *a 1.594,1.802 1.906,1.958 0.313,0.156 10 false *b 0.177,1.104 0.573,1.323 0.396,0.219 10 false SST

*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

Move SST at least 10 m (32.8 ft.) away from the front side window of the vehicle.

iii.

While maintaining sufficient clearance for SST wire harness in the front side window, close all doors and windows of the vehicle.

CAUTION:: ·

Do not deploy with all the doors and door windows open.

·

If deployed with all the doors and door windows open, dust and gas may enter the eyes or be breathed in.

NOTICE:: Take care not to damage the SST wire harness.

iv.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

Deploy the airbag.

Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

ii.

Press the SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people inside or around the vehicle.

·

If deployed with people inside or around the vehicle, serious injuries may occur.

HINT:: The airbag is deployed as the LED of SST activation switch comes on.

Remove the lower No. 1 instrument panel airbag assembly.

CAUTION:: ·

The lower No. 1 instrument panel airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

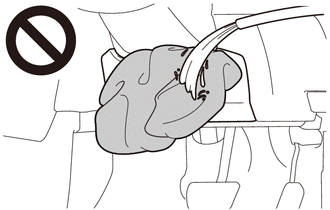

Do not apply water etc. to a lower No. 1 instrument panel airbag assembly with a deployed airbag.

·

If water is applied to the lower No. 1 instrument panel airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed lower No. 1 instrument panel airbag assembly.

·

If the lower No. 1 instrument panel airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

After removal, quickly seal the lower No. 1 instrument panel airbag assembly in a plastic bag.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202307,999999,_58,_115188,_0510625,RM100000002BZWG,

Dispose of the lower No. 1 instrument panel airbag assembly.

Place the lower No. 1 instrument panel airbag assembly in a plastic bag, tie it tightly and dispose of it according to local regulations.

CAUTION:: ·

The lower No. 1 instrument panel airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a lower No. 1 instrument panel airbag assembly with a deployed airbag.

·

If water is applied to the lower No. 1 instrument panel airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed lower No. 1 instrument panel airbag assembly.

·

If the lower No. 1 instrument panel airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a lower No. 1 instrument panel airbag assembly with an undeployed airbag.

·

If an undeployed lower No. 1 instrument panel airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Hide Display 73900 3.DISPOSE OF LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (When not Installed to Vehicle)

NOTICE:: Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202307,999999,_58,_115188,_0510623,RM100000002BZW7,

SST: 09082-00700

Refer to Precaution.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

Disconnect the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the lower No. 1 instrument panel airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202307,999999,_58,_115188,_0510625,RM100000002BZWG,

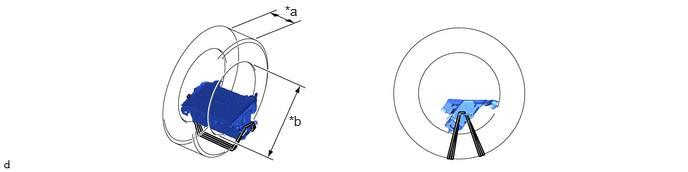

2.313,0.938 2.052,0.427 2.052,0.427 1.875,0.427 false 2.656,1.469 2.896,1.646 0.24,0.177 10 *a 1.635,0.333 1.844,0.521 0.208,0.188 10 *b

*a	Wire Diameter
*b	Stripped Wire Cross Sectional Area

Using braided wire, tie down the lower No. 1 instrument panel airbag assembly to an unneeded tire.

Wire:: Stripped Wire Cross Sectional Area; 1.25 mm² (0.0019 in.²) or more

CAUTION:: If the wire is too thin or an alternative object is used to tie down the lower No. 1 instrument panel airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm² (0.0019 in.²).

HINT:: To calculate the cross sectional area of the stripped wire:; Cross sectional area = 3.14 x (Diameter)² / 4

Position the lower No. 1 instrument panel airbag assembly inside the tire with the airbag deployment side facing inward.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

2.969,0.031 3.281,0.229 0.313,0.198 10 false *a 3.01,1.177 3.323,1.375 0.313,0.198 10 false *b

Width

Inner Diameter

CAUTION:

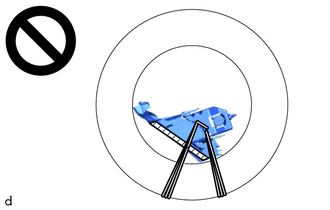

Make sure that the wires are tight. If there is slack in the wires, the lower No. 1 instrument panel airbag assembly may break loose when the airbag is deployed.

0,0 0,0 false

Deployment Side

Always tie down the lower No. 1 instrument panel airbag assembly with the airbag deployment side facing inside the tire.

NOTICE:: The tire may be damaged by the airbag deployment, so use an unneeded tire.

Install SST.

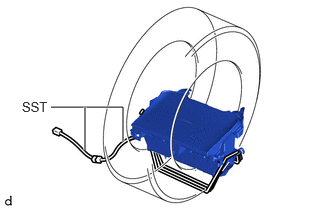

0.531,1.115 1.281,1.115 1.281,1.115 1.281,1.479 true 0.885,1.563 0.885,1.115 true 0.229,1.031 0.542,1.219 0.313,0.188 10 false SST

After connecting the following SST to each other, connect them to the lower No. 1 instrument panel airbag assembly.

SST: 09082-00802 (09082-10801, 09082-20801)

Place the tires.

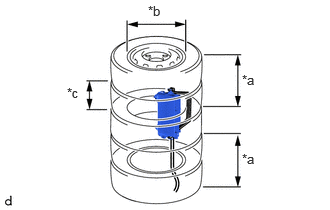

2.521,0.75 2.833,0.906 0.313,0.156 10 false *a 1.542,0.031 1.854,0.188 0.313,0.156 10 false *b 0.698,0.885 1.01,1.042 0.313,0.156 10 false *c 2.521,1.573 2.833,1.729 0.313,0.156 10 false *a

*a	Tires (2 or more)
*b	Inner Diameter
*c	Width

Place at least 2 tires under the tire to which the lower No. 1 instrument panel airbag assembly is tied.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

NOTICE:: Do not place the SST connector under the tire because it could be damaged.

ii.

Place at least 2 tires onto the tire to which the lower No. 1 instrument panel airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:: The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

iii.

Tie the tires together with 2 wires.

CAUTION:: Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

Install SST.

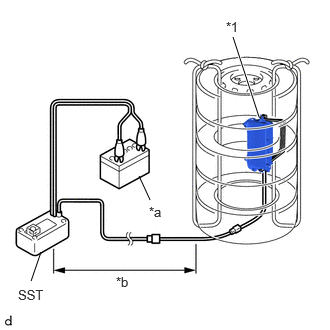

2.698,1.219 2.427,0.385 true 0.323,2.927 0.427,2.625 false 1.563,2.083 1.448,1.833 false 2.354,0.198 2.667,0.396 0.313,0.198 10 false *1 1.552,2.125 1.865,2.323 0.313,0.198 10 false *a 1.208,2.854 1.521,3.052 0.313,0.198 10 false *b 0.188,2.99 0.5,3.188 0.313,0.198 10 false SST

*1	Lower No. 1 Instrument Panel Airbag Assembly
*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

Connect the SST connector.

SST: 09082-00700

NOTICE:: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

ii.

Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

Deploy the airbag.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

ii.

Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the lower No. 1 instrument panel airbag assembly is tied.

iii.

Press the SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people around the tire.

·

If deployed with people around the tire, serious injuries may occur.

HINT:: The airbag is deployed as the LED of the SST activation switch comes on.

Dispose of the lower No. 1 instrument panel airbag assembly.

CAUTION:: ·

The lower No. 1 instrument panel airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a lower No. 1 instrument panel airbag assembly with a deployed airbag.

·

If water is applied to the lower No. 1 instrument panel airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed lower No. 1 instrument panel airbag assembly.

·

If the lower No. 1 instrument panel airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a lower No. 1 instrument panel airbag assembly with an undeployed airbag.

·

If an undeployed lower No. 1 instrument panel airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Remove the lower No. 1 instrument panel airbag assembly from the tire.

ii.

Place the lower No. 1 instrument panel airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
