SUPPLEMENTAL RESTRAINT SYSTEMS KNEE AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

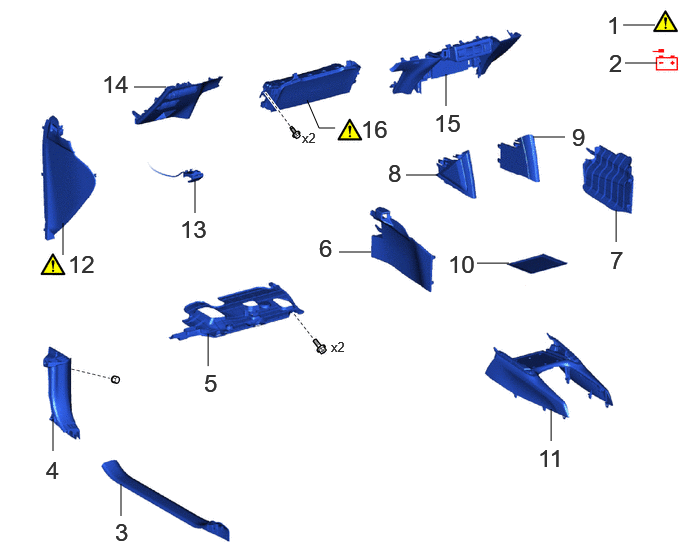

COMPONENTS (REMOVAL)

6.51,0.656 6.844,0.656 false 6.49,0.26 6.823,0.26 false 6.417,2.521 6.417,2.188 false 5.74,4.594 5.74,4.26 false 2.167,3.813 2.167,3.479 false 0.552,4.698 0.552,4.365 false 1.26,5.375 1.26,5.042 false 0.656,2.656 0.656,2.323 false 2.031,2.219 2.031,1.885 false 5.552,1.427 5.885,1.427 false 3.198,1.042 3.323,1.333 3.323,1.333 3.49,1.333 false 4.229,1.823 4.563,1.823 false 3.531,2.625 3.865,2.625 false 4.646,1.104 4.646,0.771 false 1.396,0.906 1.729,0.906 false 4.969,2.74 5.302,2.74 false 6.323,0.115 6.604,0.469 0.281,0.354 18 false 1 4.042,1.656 4.479,2 0.438,0.344 18 false 8 6.344,0.51 6.625,0.865 0.281,0.354 18 false 2 1.198,5.396 1.635,5.729 0.438,0.333 18 false 3 5.958,1.281 6.438,1.656 0.479,0.375 18 false 9 0.479,4.75 0.885,5.104 0.406,0.354 18 false 4 2.125,3.844 2.531,4.198 0.406,0.354 18 false 5 3.76,1.198 4.188,1.552 0.427,0.354 18 false 16 4.521,1.135 4.906,1.469 0.385,0.333 18 false 15 3.323,2.438 3.74,2.781 0.417,0.344 18 false 6 1.063,0.729 1.552,1.083 0.49,0.354 18 false 14 0.708,2.604 1.094,2.948 0.385,0.344 18 false 12 1.875,2.24 2.302,2.583 0.427,0.344 18 false 13 5.604,4.625 6.01,4.979 0.406,0.354 18 false 11 6.354,2.563 6.802,2.917 0.448,0.354 18 false 7 3.448,3.531 3.76,3.729 0.313,0.198 10 false x2 3.146,1.354 3.458,1.552 0.313,0.198 10 false x2 4.667,2.604 5.156,2.948 0.49,0.344 18 false 10

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_115188,_0510625,RM100000002BZWG_01_0193,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR SCUFF PLATE	67914B	-	-	-
4	COWL SIDE TRIM SUB-ASSEMBLY	62112A	-	-	-
5	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
6	FRONT NO. 1 CONSOLE BOX INSERT	58816D	-	-	-
7	FRONT NO. 2 CONSOLE BOX INSERT	58817A	-	-	-
8	NO. 2 CONSOLE UPPER PANEL GARNISH	58834B	-	-	-
9	NO. 1 CONSOLE UPPER PANEL GARNISH	58833B	-	-	-
10	NO. 2 BOX BOTTOM MAT	58917	-	-	-
11	FRONT CONSOLE UPPER PANEL GARNISH	58831A	-	-	-
12	NO. 1 INSTRUMENT SIDE PANEL	55317E	(202307,999999,_58,_115188,_0510625,RM100000002BZWG_01_0203,)	-	-
13	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
14	LOWER INSTRUMENT PANEL FINISH PANEL	55432B
15	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434F	-	-	-
16	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	73900	(202307,999999,_58,_115188,_0510625,RM100000002BZWG_01_0001,)	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the lower No. 1 instrument panel airbag assembly removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click here(202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; Click here(202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 67914B 3.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0001,

Hide Display 62112A 4.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0268,

Hide Display 55606 5.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0060,

Hide Display 58816D 6.REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0051,

Hide Display 58817A 7.REMOVE FRONT NO. 2 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0053,

Hide Display 58834B 8.REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0068,

Hide Display 58833B 9.REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0067,

Hide Display 58917 10.REMOVE NO. 2 BOX BOTTOM MAT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0066,

Hide Display 58831A 11.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0054,

Hide Display 55317E 12.REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0010,

Hide Display 53601 13.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0011,

Hide Display 55432B 14.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0044,

Hide Display 55434F 15.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0181,

Hide Display 73900 16.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

CAUTION:: ·

When storing the horn button assembly, keep the airbag deployment side facing upward.; ·

If the airbag deploys for any reason, it may cause a serious accident.

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the 2 bolts.

0.5,1.771 0.781,2.125 0.281,0.354 18 false i 0.177,0.01 0.458,0.365 0.281,0.354 18 false ii 4.271,0.26 4.552,0.615 0.281,0.354 18 false iii

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

ii.

Remove the 2 bolts.

iii.

Disengage the claws and hooks to remove the lower No. 1 instrument panel airbag assembly.
