SUPPLEMENTAL RESTRAINT SYSTEMS STEERING PAD INSTALLATION

CAUTION / NOTICE / HINT

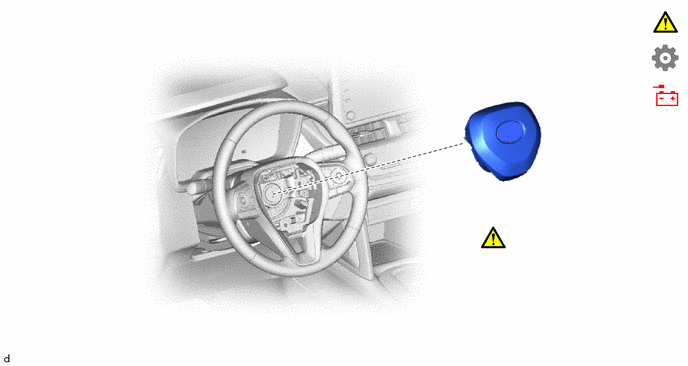

COMPONENTS (INSTALLTION)

6.531,0.208 6.865,0.208 false 6.448,0.594 6.781,0.594 false 6.49,1.031 6.823,1.031 false 5.25,1.875 5.25,2.375 false 5.281,2.313 5.563,2.667 0.281,0.354 18 false 1 6.031,0.042 6.615,0.375 0.583,0.333 18 false 3, 4 6.24,0.417 6.823,0.75 0.583,0.333 18 false 5 6.292,0.854 6.573,1.208 0.281,0.354 18 false 2

Procedure		Part Name Code
1	HORN BUTTON ASSEMBLY	45130	(202307,999999,_58,_115188,_0510623,RM100000002BZW6_01_0001,)	-	-
2	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	INSPECT HORN BUTTON ASSEMBLY	-	(202307,999999,_58,_115188,_0510623,RM100000002BZW6_01_0031,)	-	-
5	INSPECT SRS WARNING LIGHT	-	(202307,999999,_58,_115188,_0510623,RM100000002BZW6_01_0030,)	-	-
6	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	(202307,999999,_58,_115188,_0510623,RM100000002BZW6_01_0034,)

PROCEDURE

Hide Display 45130 1.INSTALL HORN BUTTON ASSEMBLY

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

1.99,1.354 2.198,1.635 0.208,0.281 18 true i 2.115,0.906 2.323,1.188 0.208,0.281 18 true ii 2.219,0.51 2.448,0.792 0.229,0.281 18 true iii 1.594,0.115 1.823,0.396 0.229,0.281 18 true iv 1.208,0.469 1.417,0.74 0.208,0.271 18 true iv 3.833,0.031 4.042,0.302 0.208,0.271 18 false v 5.49,1.333 5.771,1.594 0.281,0.26 18 true vii 5.865,0.552 6.073,0.823 0.208,0.271 18 true vi 4.938,0.688 5.146,0.958 0.208,0.271 18 true vi

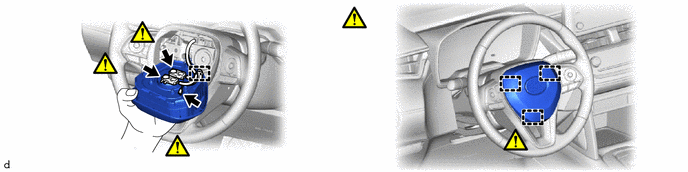

Support the button assembly with one hand.

ii.

Connect the horn connector.

iii.

Engage the wire harness clamp.

iv.

Connect the airbag connector.

NOTICE:: ·

When connecting any airbag connector, take care not to damage the airbag wire harness.; ·

Be sure to connect the connectors to each corresponding color.; ·

Make sure the lock button is securely locked.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

Set the horn button assembly to the steering wheel assembly.

NOTICE:: Check that the airbag wire harness and horn wire harness are not pinched.

vi.

Press the horn button assembly with both hands to engage the upper pin to the upper spring.

vii.

Press the horn button assembly with both hands to engage the lower pin to the lower spring.

NOTICE:: After installation, try to pull the horn button assembly and check that the horn button assembly is securely installed.

Hide Display 2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0505262,RM100000002CQ1C,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 45130 3.INSPECT HORN BUTTON ASSEMBLY

Make sure that the horn sounds.

If the horn does not sound, inspect the horn system.

Click hereVehicle Exterior>HORN>HORN SYSTEM>PROBLEM SYMPTOMS TABLE202201,999999,_59,_113861,_0504970,RM100000001ZKR7,

Hide Display 4.INSPECT SRS WARNING LIGHT

Click here(

202201,999999,_58,_115188,_0511913,RM1000000020FQR,)

Hide Display 5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
