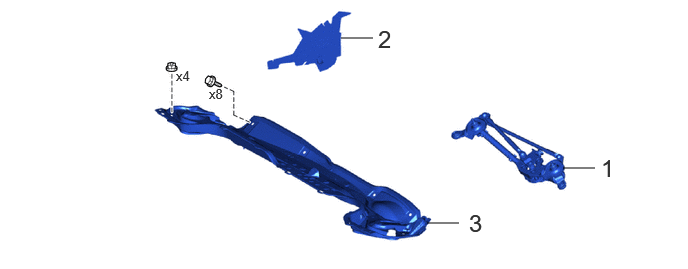

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY | - | - | - | - |
| 2 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | 55737B | - | - | - |
| 3 | OUTER COWL TOP PANEL SUB-ASSEMBLY | 55701J | - | - | - |

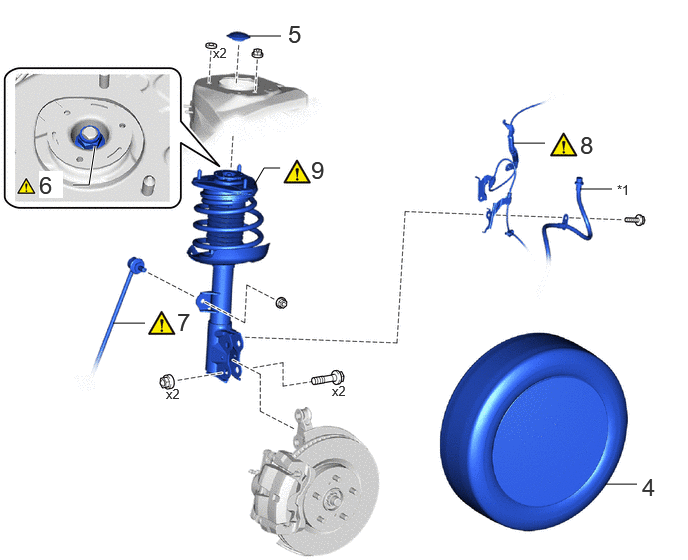

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 4 | FRONT WHEEL | - | - | - | - |
| 5 | FRONT SUSPENSION SUPPORT DUST COVER | 48684B | - | - | - |
| 6 | LOOSEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT | 48609E | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0021,)
|
- | - |
| 7 | FRONT STABILIZER LINK ASSEMBLY | 48810 | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0002,)
|
- | - |
| 8 | FRONT SPEED SENSOR | 89543 | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0009,)
|
- | - |
| 9 | FRONT SHOCK ABSORBER WITH COIL SPRING | - | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0002,)
|
- | - |
| *1 | FRONT FLEXIBLE HOSE | - | - |

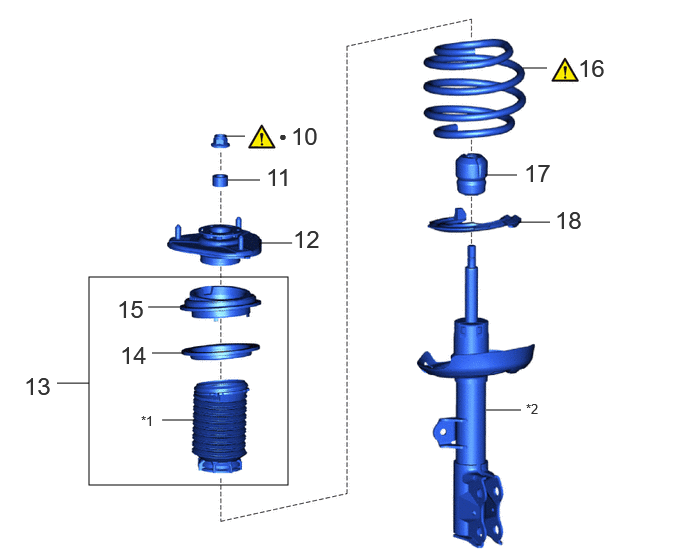

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 10 | FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT | 48609E | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0039,)
|
- | - |
| 11 | COLLAR | - | - | - | - |
| 12 | FRONT SUSPENSION SUPPORT SUB-ASSEMBLY | 48609 | - | - | - |
| 13 | STRUT MOUNTING BEARING WITH DUST COVER | - | - | - | - |
| 14 | FRONT UPPER COIL SPRING INSULATOR | 48157C | - | - | - |
| 15 | STRUT MOUNTING BEARING | 48619A | - | - | - |
| 16 | FRONT COIL SPRING | 48132 | ( 202307,999999,_53,_112966,_0502991,RM100000002BYRV_01_0016,)
|
- | - |
| 17 | FRONT SPRING BUMPER | 48331C | - | - | - |
| 18 | FRONT LOWER COIL SPRING INSULATOR | 48158C | - | - | - |
| *1 | FRONT NO. 1 SHOCK ABSORBER DUST COVER | *2 | FRONT SHOCK ABSORBER ASSEMBLY |
| ● | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front shock absorber assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: for HEV Model *2: for Gasoline Model |
|||
| Front wheel alignment adjustment | Calibration | ·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
VSC disabled or malfunctions |
( 202307,999999,_54,_112606,_0608077,RM100000002C79U,)*1
( 202307,999999,_54,_112606,_0608078,RM100000002C7D1,)*2
|
| Suspension, tires, etc. | Parking assist ECU initialization | Panoramic view monitor system | ( 202201,999999,_56,_111969,_0587004,RM1000000029RN8,)
|
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
55737B
2.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
55701J

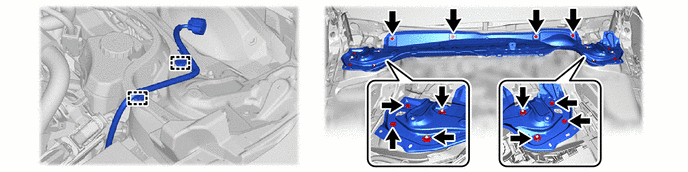

3.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
4.REMOVE FRONT WHEEL
48684B

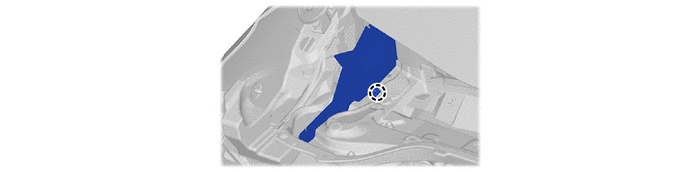

5.REMOVE FRONT SUSPENSION SUPPORT DUST COVER
48609E

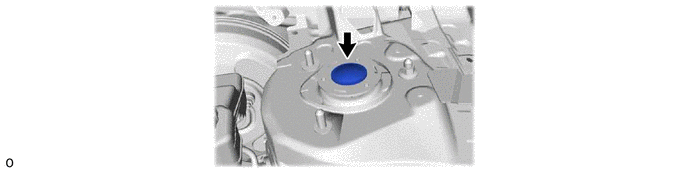

6.LOOSEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

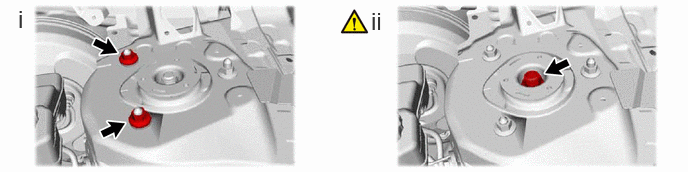

Temporarily install the 2 nuts to the front shock absorber assembly.
Loosen the front support to front shock absorber nut.
Only loosen the front support to front shock absorber nut if the front shock absorber with coil spring needs to be disassembled.
Only loosen the front support to front shock absorber nut, do not remove it.
If the front support to front shock absorber nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.
48810
7.SEPARATE FRONT STABILIZER LINK ASSEMBLY
|
|

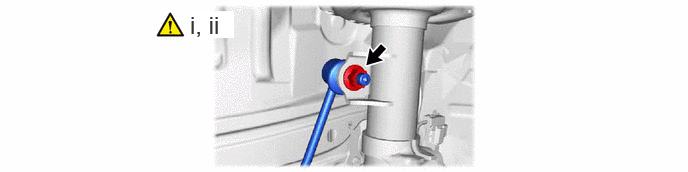

Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.
If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.
89543

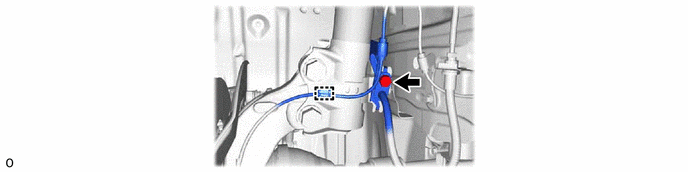

8.SEPARATE FRONT SPEED SENSOR
|
|
9.REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

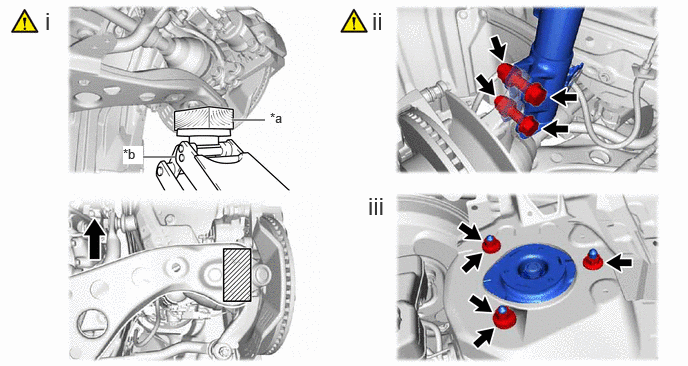

| *a | Wooden Block | *b | Jack |
|
Front of the Vehicle |
|
Wooden Block Placement Location |
Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.
Keep the front lower No. 1 suspension arm sub-assembly supported until installation of the front shock absorber with coil spring is complete.
Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.
When removing the nuts, keep the bolts from rotating.
Use wire or an equivalent tool to hang the separated steering knuckle.
Remove the 3 nuts, 2 spacers and front shock absorber with coil spring.
48609E
10.REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

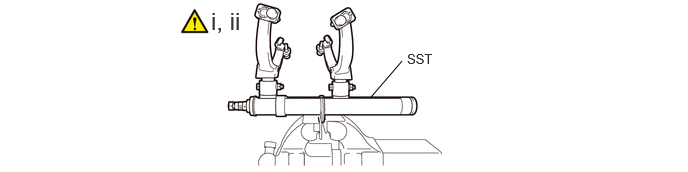

Secure SST in a vise.
Attach the hooks of each SST arm across the diameter of the coil spring.
Make sure that the hooks are securely attached to the coil spring.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

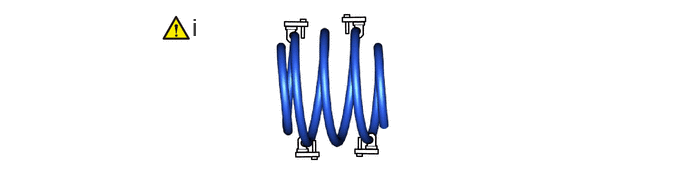

Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

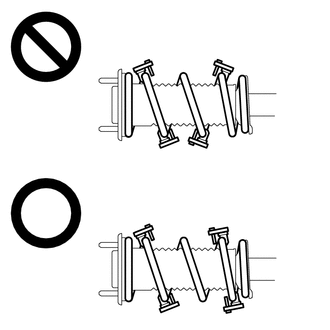

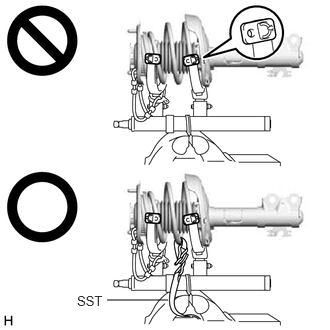

Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

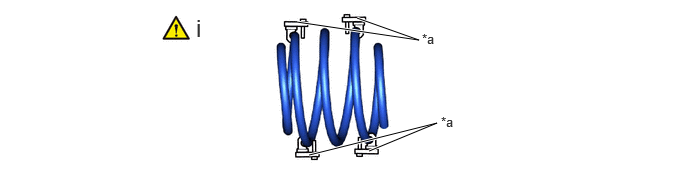

| *a | Stopper Pin | - | - |
Install the stopper pins to the hooks of SST.
Make sure that the stopper pins are installed securely.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

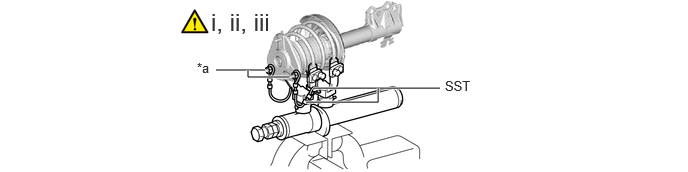

| *a | Vehicle Nut | - | - |
Install SST and 2 vehicle nuts to the upper support as shown in the illustration.
Using SST, compress the coil spring.

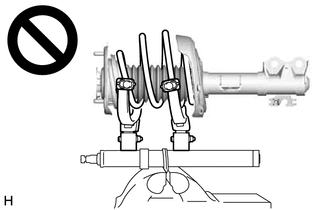

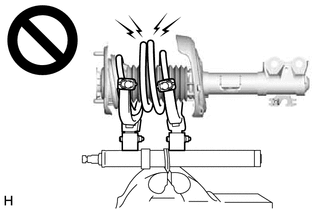

If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

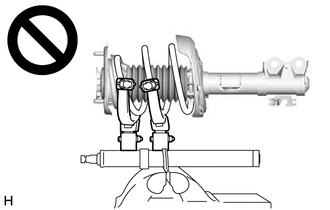

Do not compress the coil spring to the point where the coils touch each other.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

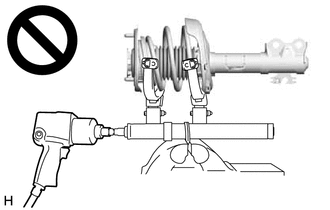

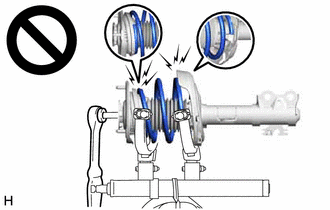

Do not use an impact wrench.
If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.
If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.
If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.
Do not remove the front support to front shock absorber nut while the coil spring is under tension.
If the front support to front shock absorber nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

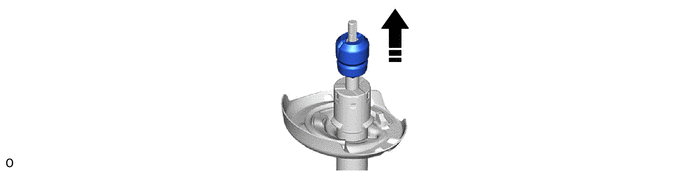

11.REMOVE COLLAR
48609
12.REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

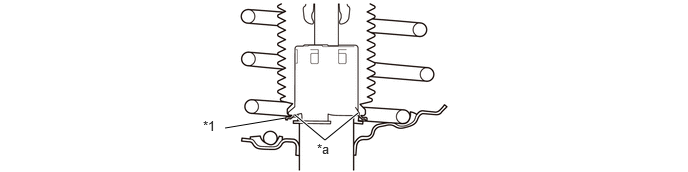

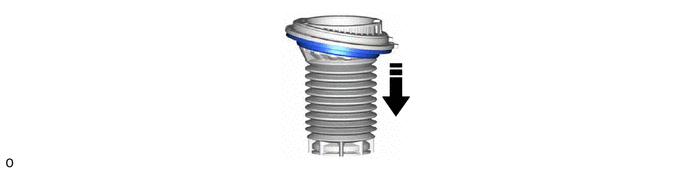

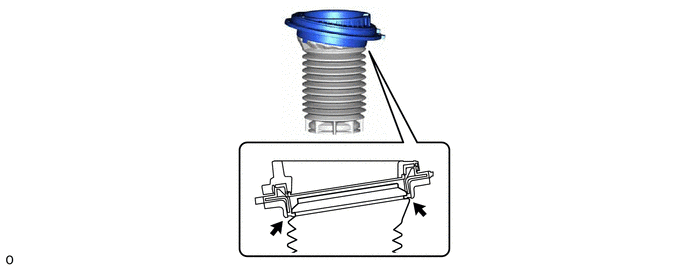

13.REMOVE STRUT MOUNTING BEARING WITH DUST COVER
| *1 | Front No. 1 Shock Absorber Dust Cover | - | - |
| *a | Claw | - | - |
48157C
14.REMOVE FRONT UPPER COIL SPRING INSULATOR
|
Remove in this direction | - | - |
48619A
15.REMOVE STRUT MOUNTING BEARING
48132
16.REMOVE FRONT COIL SPRING
|
|
Remove the front coil spring and SST.
48331C
17.REMOVE FRONT SPRING BUMPER
|
Remove in this direction | - | - |
48158C
18.REMOVE FRONT LOWER COIL SPRING INSULATOR
