RM38T0EC _V1 General _104397 MAINTENANCE _0510704 REAR BRAKE FLEXIBLE HOSE A

MAINTENANCE  REAR BRAKE FLEXIBLE HOSE  REMOVAL


CAUTION / NOTICE / HINT

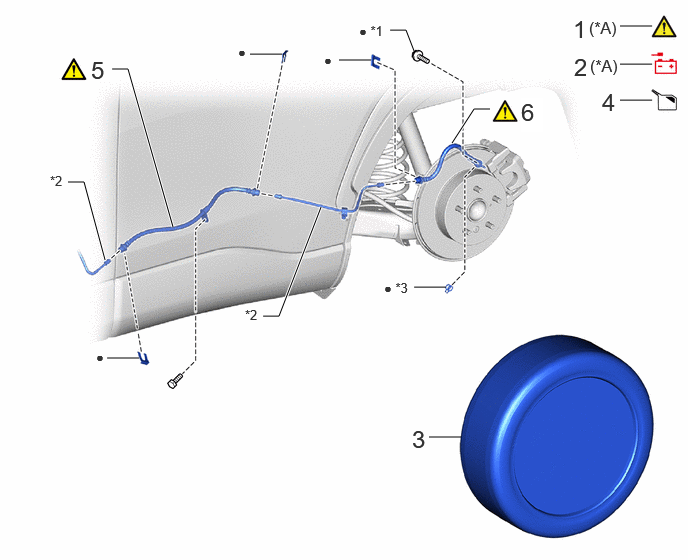

COMPONENTS (REMOVAL)
C505515N01
4.469,4.552 4.802,4.552 false 6.458,0.271 6.792,0.271 false 1.167,0.719 1.333,0.719 1.333,0.719 1.802,2.365 true 4.063,0.313 4.229,0.313 4.229,0.313 4.313,0.531 false 5.104,1.135 4.938,1.135 4.938,1.135 4.708,1.49 true 3.531,0.625 3.865,0.625 false 4.313,2.99 4.646,2.99 false 2.604,0.563 2.938,0.563 false 1.115,3.729 1.448,3.729 false 0.708,1.896 0.875,1.896 0.875,1.896 1.094,2.708 true 2.74,3.292 2.906,3.292 2.906,3.292 3.344,2.156 true 6.458,0.667 6.792,0.667 false 6.458,1.042 6.792,1.042 false 4.292,4.427 4.573,4.781 0.281,0.354 18 false 3 5.969,0.156 6.25,0.51 0.281,0.354 18 false 1 0.948,0.583 1.177,0.938 0.229,0.354 18 false 5 3.74,0.24 4.125,0.448 0.385,0.208 10 false ● *1 0.521,1.802 0.74,2 0.219,0.198 10 false *2 3.375,0.542 3.542,0.74 0.167,0.198 10 false ● 5.427,1.021 5.656,1.375 0.229,0.354 18 true 6 4,2.917 4.354,3.135 0.354,0.219 10 false ● *3 2.479,0.458 2.646,0.656 0.167,0.198 10 false ● 1,3.635 1.167,3.833 0.167,0.198 10 false ● 2.552,3.198 2.771,3.396 0.219,0.198 10 false *2 5.979,0.552 6.26,0.906 0.281,0.354 18 false 2 6.271,0.917 6.5,1.271 0.229,0.354 18 false 4 6.135,0.188 6.552,0.458 0.417,0.271 12 false (*A) 6.146,0.583 6.563,0.854 0.417,0.271 12 false (*A)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 REAR WHEEL - - - -
4 DRAIN BRAKE FLUID - - (Click here) -
5 REAR BRAKE TUBE FLEXIBLE HOSE 47316A (Click here) - -
6 REAR FLEXIBLE HOSE 47319F (Click here) - -

*A for HEV Model - -
*1 UNION BOLT *2 BRAKE LINE
*3 GASKET - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

NOTICE:

If both left and right rear brake tube flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.


HINT:
for HEV Model:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION (for HEV Model)

Z101186

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for HEV Model)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

Hide 4.DRAIN BRAKE FLUID

Z101186

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

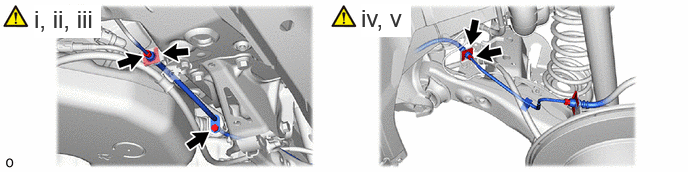

Hide 47316A 5.REMOVE REAR BRAKE TUBE FLEXIBLE HOSE

a.
C438977N01
0.354,0.052 1.052,0.396 0.698,0.344 18 true i, ii, iii 3.76,0.042 4.281,0.385 0.521,0.344 18 true iv, v

i.

Using a union nut wrench, disconnect the brake line while holding the rear brake tube flexible hose with a wrench.

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.




ii.

Remove the clip and separate the rear brake tube flexible hose from the flexible hose bracket.


iii.

Remove the bolt and separate the rear brake tube flexible hose from the flexible hose bracket.


iv.

Using a union nut wrench, disconnect the brake line while holding the rear brake tube flexible hose with a wrench.

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.




v.

Remove the clip and rear brake tube flexible hose from the flexible hose bracket.

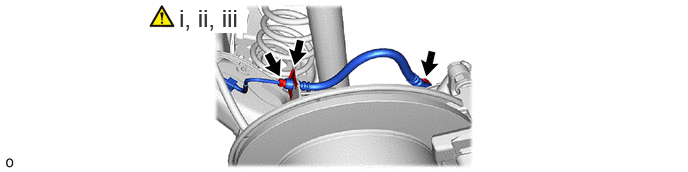

Hide 47319F 6.REMOVE REAR FLEXIBLE HOSE

a.
C438979N01
1.865,0.042 2.573,0.344 0.708,0.302 18 true i, ii, iii

i.

Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.


ii.

Using a union nut wrench, disconnect the brake line while holding the rear flexible hose with a wrench.

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.




iii.

Remove the clip and rear flexible hose from the flexible hose bracket.
