BRAKE SYSTEM (OTHER) BRAKE PEDAL(for HEV Model) REMOVAL

CAUTION / NOTICE / HINT

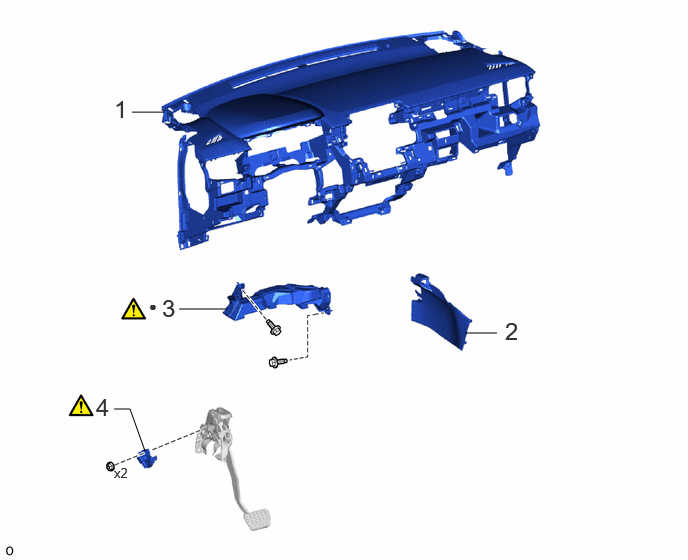

COMPONENTS (REMOVAL)

2.365,3.219 1.865,3.219 false 5.177,3.469 4.844,3.469 false 1.51,4.698 1.354,4.26 1.354,4.26 1.188,4.26 false 1.708,1.167 1.375,1.167 false 1.188,0.99 1.396,1.313 0.208,0.323 18 false 1 5.26,3.302 5.469,3.625 0.208,0.323 18 false 2 1.188,4.844 1.417,5.063 0.229,0.219 10 false x2 1.688,3.063 1.896,3.385 0.208,0.323 18 false 3 1,4.094 1.208,4.417 0.208,0.323 18 false 4 1.552,3.104 1.781,3.323 0.229,0.219 10 false ●

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD ASSEMBLY	55400	-	-	-
2	FRONT NO. 1 CONSOLE BOX INSERT	58816D	-	-	-
3	NO. 1 AIR DUCT	87211	(202307,999999,_54,_113942,_0604479,RM100000002BUGW_01_0029,)	-	-
4	BRAKE PEDAL STROKE SENSOR ASSEMBLY	89510D	(202307,999999,_54,_113942,_0604479,RM100000002BUGW_01_0019,)	-	-

●

Non-reusable part

-

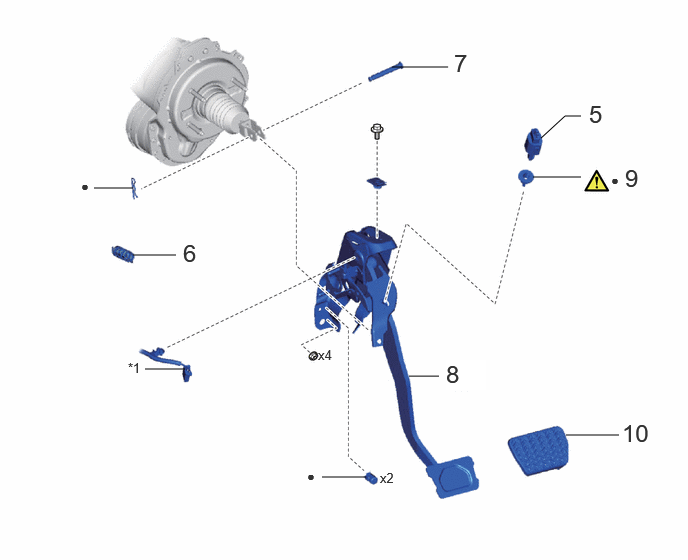

4.083,0.698 4.667,0.698 false 0.979,1.958 1.385,1.958 false 1.385,2.656 1.833,2.656 false 3.354,4.969 3.813,4.969 false 5.635,1.438 5.885,1.208 5.885,1.208 6.052,1.208 false 4.26,3.917 4.573,3.917 false 5.552,1.844 6.052,1.844 false 5.896,4.531 6.448,4.531 false 1.51,3.844 1.927,3.844 false 4.729,0.51 5.01,0.865 0.281,0.354 18 false 7 0.844,1.854 1.031,2.094 0.188,0.24 10 false ● 1.906,2.49 2.188,2.844 0.281,0.354 18 false 6 1.333,3.75 1.521,3.99 0.188,0.24 10 false *1 3.313,3.615 3.552,3.844 0.24,0.229 10 false x4 3.958,4.896 4.198,5.125 0.24,0.229 10 false x2 3.198,4.875 3.385,5.115 0.188,0.24 10 false ● 4.646,3.75 5.063,4.063 0.417,0.313 18 true 8 6.479,4.365 6.865,4.719 0.385,0.354 18 false 10 6.51,1.708 6.729,2.042 0.219,0.333 18 false 9 6.135,1.042 6.354,1.375 0.219,0.333 18 false 5 6.365,1.792 6.552,2.031 0.188,0.24 10 false ●

Procedure		Part Name Code
5	STOP LIGHT SWITCH ASSEMBLY	84340	-	-	-
6	BRAKE PEDAL RETURN SPRING	47101A	-	-	-
7	PUSH ROD PIN	47264A	-	-	-
8	BRAKE PEDAL SUPPORT ASSEMBLY	47110	-	-	-
9	STOP LIGHT SWITCH MOUNTING ADJUSTER	84345	(202307,999999,_54,_113942,_0604479,RM100000002BUGW_01_0017,)	-	-
10	BRAKE PEDAL PAD	47121	-	-	-

*1	WIRE HARNESS	-	-
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during brake pedal support assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Brake pedal*1	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system does not operate correctly	(202307,999999,_54,_112606,_0608077,RM100000002C79U,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
