BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  BRAKE CONTROL POWER SUPPLY  REMOVAL


CAUTION / NOTICE / HINT

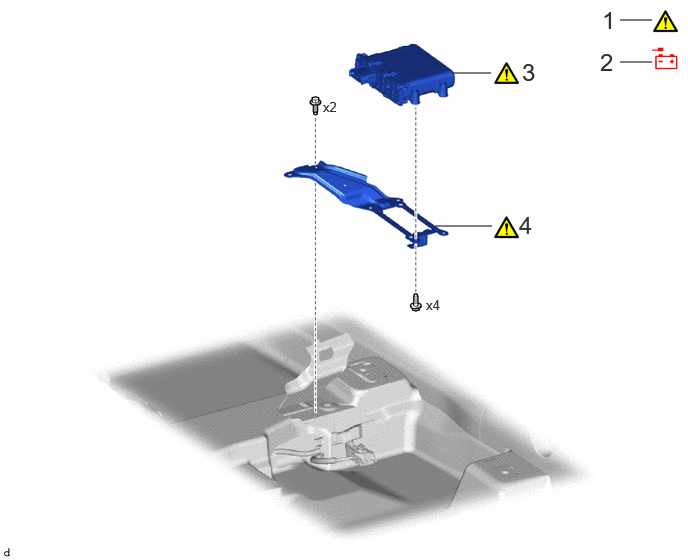

COMPONENTS (REMOVAL)
C497620N01
6.458,0.208 6.792,0.208 false 6.458,0.646 6.792,0.646 false 4.708,0.76 5.115,0.76 false 4.531,2.354 5.125,2.354 false 3.365,1.031 3.677,1.229 0.313,0.198 10 false x2 4.438,3.094 4.75,3.292 0.313,0.198 10 false x4 6.271,0.063 6.552,0.417 0.281,0.354 18 false 1 6.25,0.5 6.531,0.854 0.281,0.354 18 false 2 5.438,0.604 5.719,0.958 0.281,0.354 18 false 3 5.406,2.198 5.688,2.552 0.281,0.354 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 BRAKE CONTROL POWER SUPPLY ASSEMBLY 89680 (Click here) - -
4 NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET 89686A (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the brake control power supply assembly removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

Z101186

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 89680 3.REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

Z101186

NOTICE:
·

Do not hold the brake control power supply assembly by the connector.

·

Do not drop the brake control power supply assembly when carrying it.

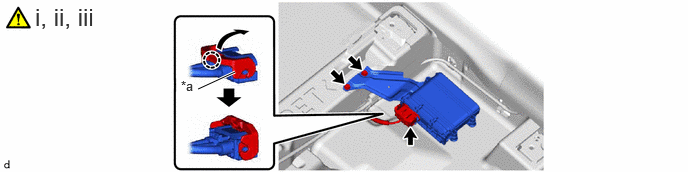

a.
C497647C01
2.063,0.927 2.448,0.75 true 0.365,0.031 1.208,0.354 0.844,0.323 18 false i, ii, iii 1.885,0.813 2.177,1.063 0.292,0.25 10 false *a
*a Lock Lever - -


i.

Turn back the floor carpet.


ii.

Remove the 2 bolts and remove the brake control power supply assembly.


iii.

Disengage the claw and raise the lock lever to disconnect the brake control power supply assembly connector as shown in the illustration.

NOTICE:

After disconnecting the brake control power supply assembly connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the brake control power supply assembly connector.




Hide 89686A 4.REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

Z101186

NOTICE:
·

Do not hold the brake control power supply assembly by the connector.

·

Do not drop the brake control power supply assembly when carrying it.




a.
C507957
