BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  BRAKE PEDAL STROKE SENSOR(for HEV Model)  REMOVAL


CAUTION / NOTICE / HINT

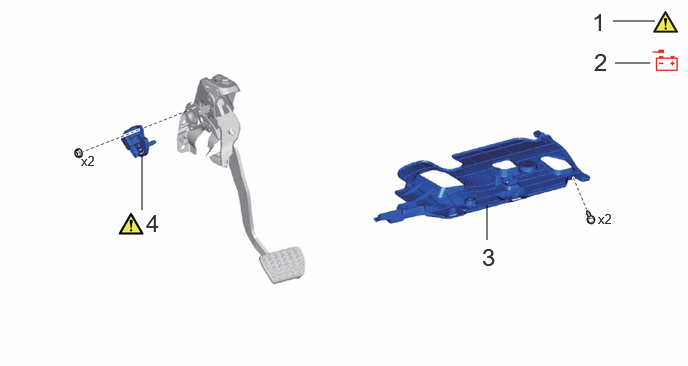

COMPONENTS (REMOVAL)
C507956N01
1.479,2.188 1.479,1.615 false 6.823,0.219 6.385,0.219 false 6.771,0.656 6.406,0.656 false 5.073,2.5 5.073,2.135 false 6.167,0.083 6.448,0.438 0.281,0.354 18 false 1 6.188,0.5 6.469,0.854 0.281,0.354 18 false 2 5.021,2.531 5.302,2.885 0.281,0.354 18 false 3 1.521,2.177 1.802,2.531 0.281,0.354 18 false 4 0.844,1.594 1.125,1.833 0.281,0.24 10 false x2 6.229,2.198 6.51,2.438 0.281,0.24 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY 55606 - - -
4 BRAKE PEDAL STROKE SENSOR ASSEMBLY 89510D (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during brake pedal stroke sensor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Brake pedal stroke sensor assembly*1
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

Z101186

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 89510D 4.REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

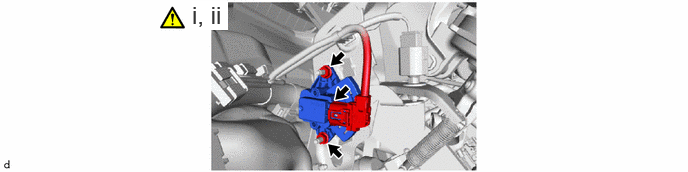

a.
C497615N01
2,0.01 2.375,0.313 0.375,0.302 18 true i, ii

i.

Disconnect the connector from the brake pedal stroke sensor assembly.


ii.

Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.

NOTICE:
·

Do not drop the brake pedal stroke sensor assembly.

·

If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
