RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604268 FUEL PRESSURE SENSOR A

M20F-FXS, M20G-FXS FUEL  FUEL PRESSURE SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

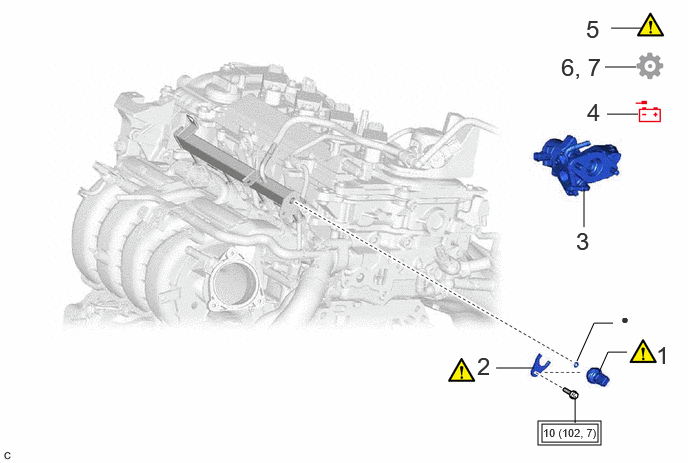

A498505N01
5.646,4.417 6.229,4.604 0.583,0.188 5.604,4.385 6.26,4.635 0.656,0.25 6.083,2.365 6.083,1.969 false 5.167,3.833 5.563,3.833 false 6.01,3.76 6.188,3.365 6.188,3.365 6.385,3.365 false 6.24,3.875 6.333,3.667 6.333,3.667 6.531,3.667 false 5.99,4.406 5.99,4.125 false 6.323,1.188 6.646,1.188 false 6.302,0.698 6.625,0.698 false 6.365,0.292 6.688,0.292 false 6,2.365 6.281,2.719 0.281,0.354 18 false 3 4.969,3.667 5.25,4.021 0.281,0.354 18 false 2 6.469,3.24 6.854,3.479 0.385,0.24 10 false ● 6.833,3.552 7.115,3.906 0.281,0.354 18 false 1 5.656,4.438 6.26,4.625 0.604,0.188 8 false 10 (102, 7) 6.115,1.021 6.396,1.375 0.281,0.354 18 false 4 5.844,0.552 6.448,0.896 0.604,0.344 18 false 6, 7 6.104,0.156 6.354,0.49 0.25,0.333 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 2 FUEL PRESSURE SENSOR 89458H (Click here) - -
2 NO. 2 FUEL PRESSURE SENSOR HOLDER 23851A (Click here) - -
3 EGR VALVE ASSEMBLY 25620 - - -
4 CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
5 INSPECT FOR FUEL LEAK - (Click here) - -
6 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)
7 PERFORM INITIALIZATION - - - (Click here)

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) ● Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 89458H 1.INSTALL NO. 2 FUEL PRESSURE SENSOR

Z101186

NOTICE:

Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click here(Click here)



a.

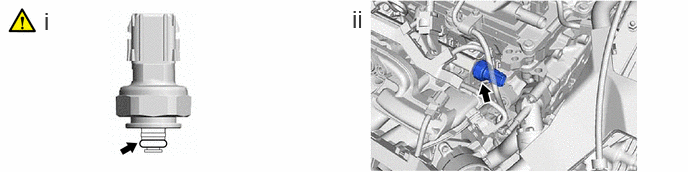

A498508N01
0.458,0.073 0.74,0.427 0.281,0.354 18 false i 3.667,0.052 3.948,0.406 0.281,0.354 18 false ii

i.

Install a new O-ring to the No. 2 fuel pressure sensor.


ii.

Install the No. 2 fuel pressure sensor to the fuel delivery pipe sub-assembly.



Hide 23851A 2.INSTALL NO. 2 FUEL PRESSURE SENSOR HOLDER

a.

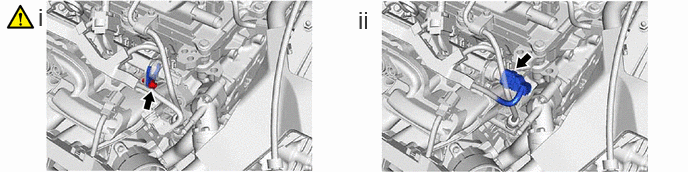

A498509N01
0.396,0.031 0.677,0.385 0.281,0.354 18 false i 3.729,0.063 4.01,0.417 0.281,0.354 18 false ii

i.

Using an 8 mm socket wrench, install the No. 2 fuel pressure sensor holder to the fuel delivery pipe sub-assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


ii.

Connect the No. 2 fuel pressure sensor connector.



Hide 6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


Hide 7.PERFORM INITIALIZATION

a.

Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION
