RM38T0EC _51 Engine / Hybrid System _144958 M20F-FXS, M20G-FXS ENGINE MECHANICAL _0604261 REAR CRANKSHAFT OIL SEAL A

M20F-FXS, M20G-FXS ENGINE MECHANICAL REAR CRANKSHAFT OIL SEAL REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed, or replaced during the rear engine oil seal removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

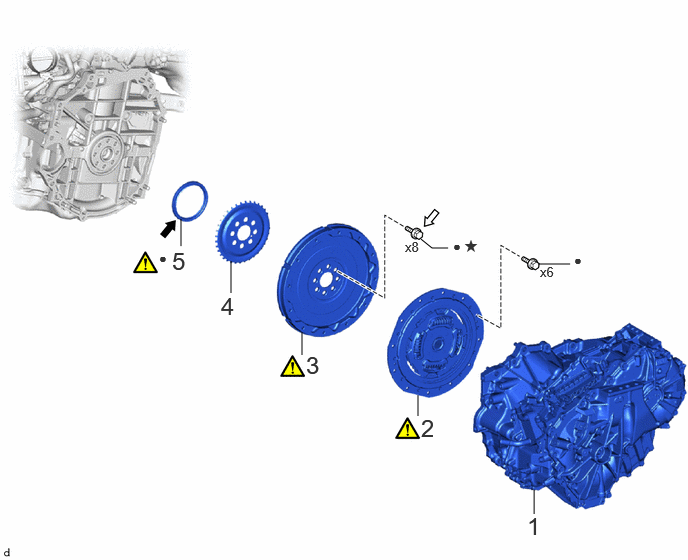

4.385,2.49 4.5,2.583 4.5,2.583 4.667,2.583 false 5.604,2.75 5.938,2.75 false 1.885,2.563 1.885,2.281 false 2.406,3.052 2.406,2.719 false 3.146,3.698 3.146,3.458 false 4.354,4.333 4.354,4.115 false 5.563,5.354 5.563,5.104 false 4.719,2.479 5.177,2.677 0.458,0.198 10 false ● ★ 4.219,2.49 4.677,2.688 0.458,0.198 10 false x8 5.625,2.75 6.083,2.948 0.458,0.198 10 false x6 5.979,2.625 6.438,2.823 0.458,0.198 10 false ● 5.49,5.333 5.76,5.688 0.271,0.354 18 false 1 4.385,4.313 4.656,4.667 0.271,0.354 18 false 2 3.188,3.656 3.458,4.01 0.271,0.354 18 false 3 2.302,3.042 2.573,3.396 0.271,0.354 18 false 4 1.792,2.573 2.063,2.927 0.271,0.354 18 false 5 1.656,2.604 2.115,2.802 0.458,0.198 10 false ●

Procedure		Part Name Code
1	HYBRID VEHICLE TRANSAXLE ASSEMBLY	30900	-	-	-
2	TRANSMISSION INPUT DAMPER ASSEMBLY	31270	(202307,999999,_51,_144958,_0604261,RM100000002BTSW_03_0369,)	-	-
3	FLYWHEEL SUB-ASSEMBLY	13405	(202307,999999,_51,_144958,_0604261,RM100000002BTSW_03_0372,)	-	-
4	NO. 1 CRANKSHAFT POSITION SENSOR PLATE	19315	-	-	-
5	REAR ENGINE OIL SEAL	11401L	(202307,999999,_51,_144958,_0604261,RM100000002BTSW_03_0371,)	-	-

●	Non-reusable part		MP grease
	Adhesive 1324	★	Precoated part

PROCEDURE

Hide Display 30900 1.REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

Click hereDrivetrain>PB10 (HYBRID TRANSMISSION / TRANSAXLE)>HYBRID VEHICLE TRANSAXLE>REMOVAL202307,999999,_52,_144756,_0603116,RM100000002BO7O,

Hide Display 31270 2.REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

4.573,0.5 4.313,0.948 4.313,0.948 5.01,1.01 false 4.458,0.083 4.771,0.24 0.313,0.156 10 false *a 0.365,0.031 0.573,0.333 0.208,0.302 18 false i 3.906,0.052 4.115,0.354 0.208,0.302 18 false ii 2.042,2.031 2.281,2.313 0.24,0.281 18 false iii 4.01,0.854 4.406,1.063 0.396,0.208 10 false SST

Hold

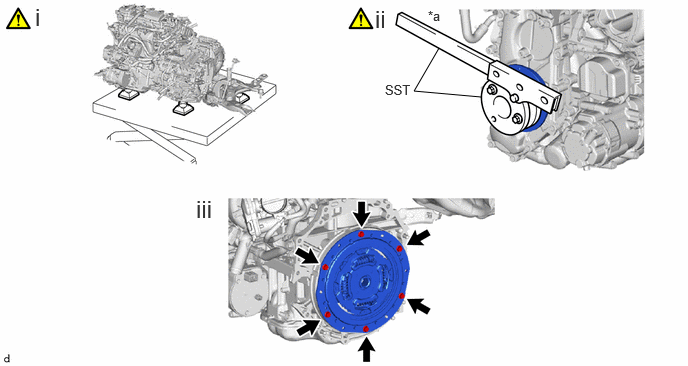

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.

NOTICE:: ·

Using height adjustment attachments and plate lift attachments, keep the engine assembly level.

·

To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.

·

Using an engine sling device and engine lift, secure the engine assembly before servicing.

ii.

Using SST, hold the crankshaft pulley assembly.

SST: 09213-54015
09330-00021

iii.

Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

Hide Display 13405 3.REMOVE FLYWHEEL SUB-ASSEMBLY

1.635,1.031 1.177,1.177 1.177,1.177 1.323,0.521 false 0.958,1.198 1.417,1.396 0.458,0.198 10 false SST 0.365,0.073 0.604,0.406 0.24,0.333 18 false i 3.781,0.042 4.021,0.375 0.24,0.333 18 false ii

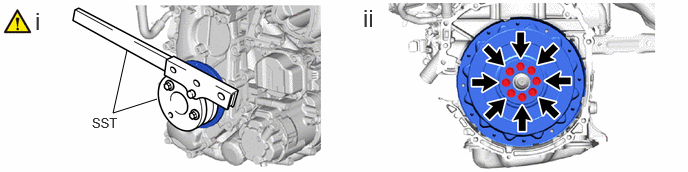

Using SST, hold the crankshaft pulley assembly.

SST: 09213-54015
09330-00021

ii.

Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

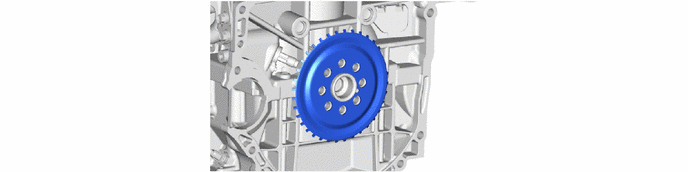

Hide Display 19315 4.REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

Hide Display 11401L 5.REMOVE REAR ENGINE OIL SEAL

3.719,1.375 3.323,1.073 true 4.698,1.146 4.813,0.635 true 3.771,1.365 4,1.563 0.229,0.198 10 true *a 4.604,1.177 4.833,1.375 0.229,0.198 10 false *b 1.938,0.615 2.49,0.969 0.552,0.354 18 false ii 5.375,0.281 5.927,0.635 0.552,0.354 18 false i

Protective Tape

Cut Position

Using a knife, cut off the lip of the rear engine oil seal.

ii.

Using a screwdriver, pry out the rear engine oil seal.

NOTICE:: Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

HINT:: Tape the screwdriver tip before use.
