RM38T0EC _51 Engine / Hybrid System _144958 M20F-FXS, M20G-FXS ENGINE MECHANICAL _0604259 CYLINDER HEAD GASKET A

M20F-FXS, M20G-FXS ENGINE MECHANICAL CYLINDER HEAD GASKET REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cylinder head gasket removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Replacement of cam timing control motor with EDU assembly · Replacement of fuel pump assembly (for high pressure side) · Replacement of cylinder head sub-assembly · Replacement of ignition coil assembly · Replacement of EGR valve assembly · Removal and installation of a camshaft timing gear assembly · Replacement of camshaft timing gear assembly · Replacement of camshaft timing exhaust gear assembly · Replacement of camshaft (for intake or exhaust camshaft) · Gas leaks from exhaust system is repaired · Replacement of port fuel injector assembly · Replacement of direct fuel injector assembly · Cleaning the deposits from the throttle body with motor assembly · Removal and installation of a cam timing control motor with EDU assembly · Removal and installation of a camshaft timing gear assembly	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

6.521,0.229 6.854,0.229 false 5.979,0.865 6.313,0.865 false 5.552,1.5 5.885,1.5 false 4.385,1.271 4.719,1.271 false 5.427,4.667 5.76,4.667 false 2.25,2.917 2.583,2.917 false 3.521,3.667 3.854,3.667 false 3.458,5.479 3.708,5.479 false 3.333,2.167 3.333,1.833 false 6.115,2.281 6.281,2.031 6.281,2.031 6.448,2.031 false 3.052,5.188 3.302,5.188 false 6.323,0.073 6.604,0.427 0.281,0.354 18 false 1 6.375,0.698 6.656,1.052 0.281,0.354 18 false 2 5.948,1.333 6.229,1.688 0.281,0.354 18 false 2 6.854,1.854 7.052,2.177 0.198,0.323 18 false 5 4.792,1.104 5.073,1.458 0.281,0.354 18 false 4 3.26,2.167 3.542,2.521 0.281,0.354 18 false 4 2.073,2.76 2.354,3.115 0.281,0.354 18 false 6 3.219,5.365 3.417,5.656 0.198,0.292 18 false 7 3.406,5.156 3.719,5.354 0.313,0.198 10 false x7 6.063,4.542 6.344,4.896 0.281,0.354 18 false 3 3.917,3.552 4.229,3.75 0.313,0.198 10 false ● 6.854,3.104 7.063,3.281 0.208,0.177 10 false x3 2.885,5.083 3.198,5.281 0.313,0.198 10 false ●

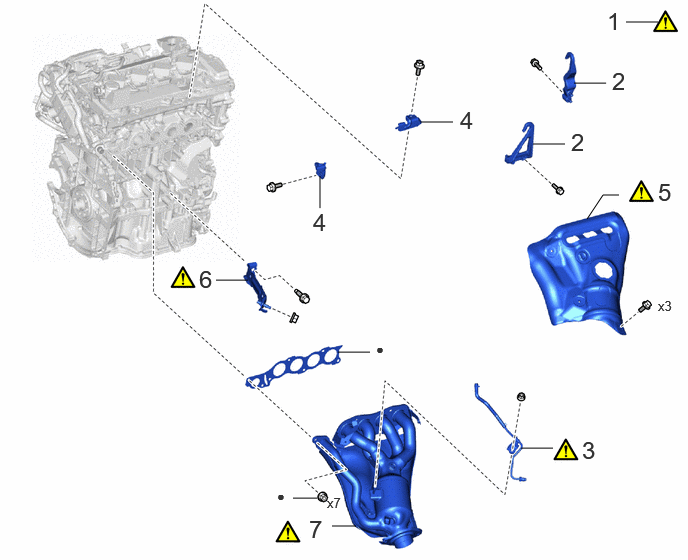

Procedure		Part Name Code
1	ENGINE ASSEMBLY TO ENGINE STAND	-	-	-	-
2	ENGINE HANGERS	-	-	-	-
3	NO. 1 VACUUM PIPE	25733A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0177,)	-	-
4	BRACKET	23211K	-	-	-
5	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	17167	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0080,)	-	-
6	MANIFOLD STAY	17118	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0125,)	-	-
7	EXHAUST MANIFOLD	17141	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0081,)	-	-

●

Non-reusable part

3.76,1.781 4.01,1.781 false 4.75,1.583 4.75,1.833 false 3.167,1 3.5,1 false 1.656,0.417 1.99,0.417 false 1.281,0.219 1.615,0.219 false 0.667,1.844 0.917,1.844 false 0.75,0.833 0.833,0.833 0.833,0.833 0.917,0.656 false 2.927,2.5 2.927,2.75 false 2.333,2.167 2.167,2.417 2.167,2.417 2,2.417 false 1.25,3.167 1.25,3.417 false 4.771,3.948 4.667,3.75 4.667,3.75 4.583,3.75 false 5.604,3.833 5.833,3.583 5.833,3.583 6,3.583 false 6.917,4.75 6.75,4.167 6.75,4.167 6.583,4.167 false 5.25,4.417 5.167,4.5 5.167,4.5 5.083,4.5 false 4.115,4.635 4.365,4.635 false 5.479,4.75 5.646,4.75 false 4.719,5.417 4.885,5.417 false 4.677,1.896 5.229,2.25 0.552,0.354 18 false 8 4.146,1.594 4.698,1.948 0.552,0.354 18 false 9 4.073,1.677 4.333,1.927 0.26,0.25 10 false ● 3.542,0.885 3.802,1.135 0.26,0.25 10 false ● 2.063,0.313 2.323,0.563 0.26,0.25 10 false ● 1.708,0.083 1.969,0.333 0.26,0.25 10 false ● 0.563,0.094 0.823,0.344 0.26,0.25 10 false x2 0.823,0.99 1.083,1.24 0.26,0.25 10 false x2 0.094,2.01 0.354,2.26 0.26,0.25 10 false x2 6.26,4.01 6.594,4.375 0.333,0.365 18 false 10 6.042,3.427 6.823,3.76 0.781,0.333 18 false 11, 17 5.177,4.604 5.51,4.969 0.333,0.365 18 false 12 4.792,4.385 5.125,4.75 0.333,0.365 18 false 20 3.823,4.469 4.156,4.833 0.333,0.365 18 false 18 4.688,4.406 4.948,4.656 0.26,0.25 10 false ● 4.302,5.313 4.563,5.563 0.26,0.25 10 false ● 4.406,5.271 4.74,5.635 0.333,0.365 18 false 13 4.24,3.594 4.573,3.958 0.333,0.365 18 false 19 2.854,2.74 3.188,3.104 0.333,0.365 18 false 22 1.667,2.271 2,2.635 0.333,0.365 18 false 23 2.625,1.302 2.885,1.552 0.26,0.25 10 false x3 1.25,3.417 1.583,3.781 0.333,0.365 18 false 21 3.667,0.844 4,1.208 0.333,0.365 18 false 24 2.219,0.24 2.552,0.604 0.333,0.365 18 false 15 1.823,0.031 2.156,0.396 0.333,0.365 18 false 16 0.406,0.75 0.74,1.115 0.333,0.365 18 false 14 5.208,3.625 5.469,3.875 0.26,0.25 10 false x2 6.594,5.042 6.854,5.292 0.26,0.25 10 false *a 6.51,5.25 6.771,5.5 0.26,0.25 10 false *b 5.344,1.083 5.604,1.333 0.26,0.25 10 false x3 0.979,1.75 1.24,2 0.26,0.25 10 false *1

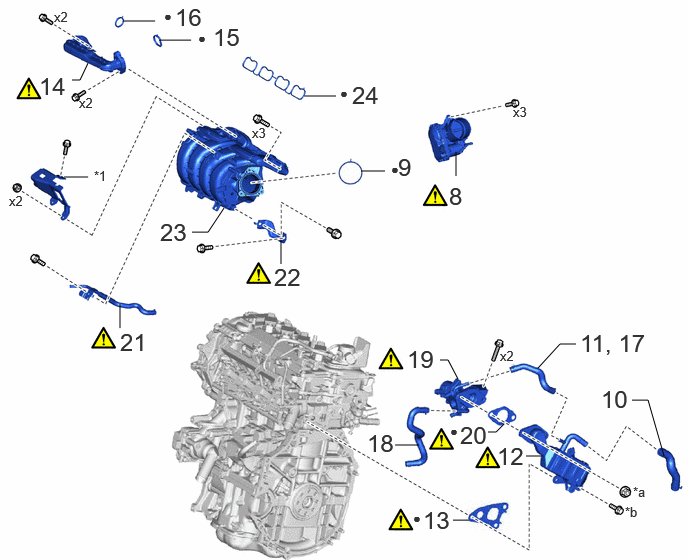

Procedure		Part Name Code
8	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0126,)	-	-
9	THROTTLE BODY GASKET	22271	-	-	-
10	NO. 3 WATER BY-PASS HOSE	16267	-	-	-
11	NO. 4 WATER BY-PASS HOSE	16281	-	-	-
12	EGR COOLER ASSEMBLY	25680	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0127,)	-	-
13	NO. 1 EGR COOLER GASKET	25685	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0190,)	-	-
14	NO. 1 EGR PIPE SUB-ASSEMBLY	25601	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0128,)	-	-
15	EGR VALVE ADAPTER GASKET	25629	-	-	-
16	EGR INLET GASKET	25628	-	-	-
17	NO. 4 WATER BY-PASS HOSE	16281	-	-	-
18	NO. 8 WATER BY-PASS HOSE	16296	-	-	-
19	EGR VALVE ASSEMBLY	25620	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0085,)	-	-
20	EGR VALVE GASKET	25627	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0185,)	-	-
21	NO. 3 WATER BY-PASS PIPE	16279	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0086,)	-	-
22	INTAKE MANIFOLD STAY	17138B	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0170,)	-	-
23	INTAKE MANIFOLD	17111	-	-	-
24	NO. 1 INTAKE MANIFOLD TO HEAD GASKET	17177	-	-	-

*1	NO. 2 FUEL DELIVERY GUARD	-	-
*a	x2 or x3	*b	x3 or x2
●	Non-reusable part	-	-

3.875,0.833 4.042,0.833 false 5.167,0.875 5.417,0.625 5.417,0.625 5.583,0.625 false 4.802,1.302 4.969,1.302 false 5.292,1.583 5.625,1.583 false 5.167,1.833 5.583,1.833 false 5,2.083 5.333,2.083 false 4,1.583 4,1.917 false 1.75,1.333 2.083,1.333 false 1.333,2.25 1.5,2.25 1.5,2.25 1.938,2.438 false 2.823,2.615 3.156,2.615 false 1.969,3 2.302,3 false 2.25,3.417 2.333,3.417 2.333,3.417 2.417,3.219 false 1.281,3.583 1.531,3.583 false 1.083,4.583 1.583,4.583 false 1.302,4.719 1.469,4.719 1.469,4.719 1.688,4.635 false 1.167,4.885 1.333,4.885 1.333,4.885 1.781,4.667 false 1.698,5 1.865,5 1.865,5 2,4.833 false 1.25,5.385 1.5,5.385 false 2.25,4.167 2.167,4.167 2.167,4.167 2.031,4.417 false 2.75,4.25 2.583,4.25 2.583,4.25 2.417,4.833 false 2.75,4.5 2.667,4.5 2.667,4.5 2.5,4.875 false 2.604,4.948 2.604,5.198 false 1.5,2.51 1.667,2.51 1.667,2.51 2.198,2.813 false 3.969,1.917 4.521,2.271 0.552,0.354 18 false 25 3.573,0.656 4.125,1.01 0.552,0.354 18 false 26 5.896,0.49 6.448,0.844 0.552,0.354 18 false 27 1.01,2.104 1.563,2.458 0.552,0.354 18 false 32 1.417,1.177 1.969,1.531 0.552,0.354 18 false 35 1.625,2.896 2.177,3.25 0.552,0.354 18 false 36 1.958,3.271 2.51,3.625 0.552,0.354 18 false 34 1.802,3.323 2.031,3.552 0.229,0.229 10 false ● 0.948,3.458 1.5,3.813 0.552,0.354 18 false 37 0.74,4.448 1.292,4.802 0.552,0.354 18 false 40 0.604,4.479 0.833,4.708 0.229,0.229 10 false ● 1.167,4.615 1.396,4.844 0.229,0.229 10 false ● 0.698,4.802 0.927,5.031 0.229,0.229 10 false ● 0.833,4.75 1.385,5.104 0.552,0.354 18 false 41 1.417,4.875 1.969,5.229 0.552,0.354 18 false 38 2.677,5.167 3.229,5.521 0.552,0.354 18 false 44 2.573,5.198 2.802,5.427 0.229,0.229 10 false ● 0.927,5.25 1.479,5.604 0.552,0.354 18 false 31 2.281,4 2.833,4.354 0.552,0.354 18 false 39 2.771,4.146 3,4.375 0.229,0.229 10 false ● 2.906,4.094 3.458,4.448 0.552,0.354 18 false 43 2.802,4.385 3.031,4.615 0.229,0.229 10 false ● 2.896,4.323 3.448,4.677 0.552,0.354 18 false 42 3.188,2.469 3.74,2.823 0.552,0.354 18 false 33 5.385,1.917 5.938,2.271 0.552,0.354 18 false 30 5.656,1.74 5.885,1.969 0.229,0.229 10 false ● 5.76,1.708 6.313,2.063 0.552,0.354 18 false 29 5.688,1.417 6.24,1.771 0.552,0.354 18 false 28 5.646,1.021 5.875,1.25 0.229,0.229 10 false x2 2.021,2.021 2.25,2.25 0.229,0.229 10 false x2 2.792,2.615 3.021,2.844 0.229,0.229 10 false x2 2.031,2.781 2.26,3.01 0.229,0.229 10 false x4 2.177,3.052 2.406,3.281 0.229,0.229 10 false x4 2.438,3.219 2.667,3.448 0.229,0.229 10 false x4 1.281,3.188 1.51,3.417 0.229,0.229 10 false x4 1.688,4.438 1.917,4.667 0.229,0.229 10 false x4 1.813,4.49 2.042,4.719 0.229,0.229 10 false x4 1.521,4.406 1.75,4.635 0.229,0.229 10 false x4 2.01,4.802 2.24,5.031 0.229,0.229 10 false x4 2.104,4.458 2.333,4.688 0.229,0.229 10 false x4 2.208,4.865 2.438,5.094 0.229,0.229 10 false x4 2.333,4.906 2.563,5.135 0.229,0.229 10 false x4 2.656,4.854 2.885,5.083 0.229,0.229 10 false x4 4.688,1.188 4.917,1.417 0.229,0.229 10 false ● 1.365,2.406 1.594,2.635 0.229,0.229 10 false ●

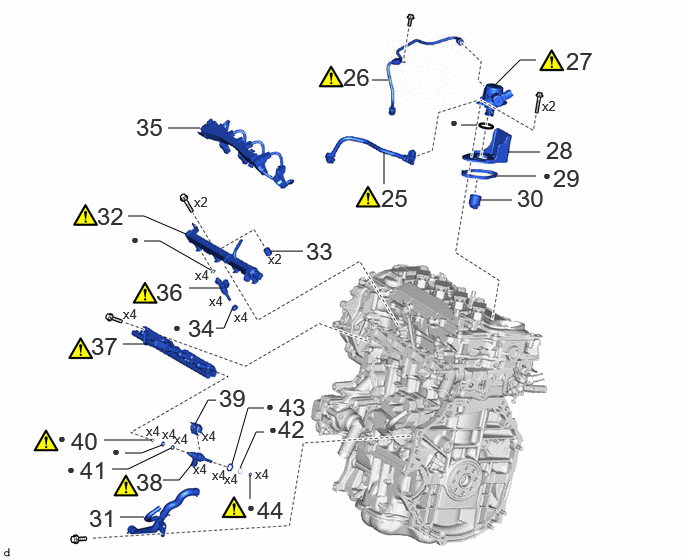

Procedure		Part Name Code
25	FUEL TUBE SUB-ASSEMBLY	23910A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0161,)	-	-
26	NO. 1 FUEL PIPE SUB-ASSEMBLY	23801P	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0160,)	-	-
27	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0131,)	-	-
28	FUEL PUMP FLANGE	23191	-	-	-
29	FUEL PUMP SPACER GASKET	23224D	-	-	-
30	FUEL PUMP LIFTER ASSEMBLY	23470	-	-	-
31	WATER BY-PASS HOSE ASSEMBLY	-	-	-	-
32	FUEL DELIVERY PIPE SUB-ASSEMBLY	23807	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0133,)	-	-
33	FUEL DELIVERY SPACER	23891	-	-	-
34	INJECTOR VIBRATION INSULATOR	23291	-	-	-
35	NO. 5 ENGINE WIRE	82125N	-	-	-
36	PORT FUEL INJECTOR ASSEMBLY	23250F	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0149,)	-	-
37	FUEL DELIVERY PIPE	23814B	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0089,)	-	-
38	DIRECT FUEL INJECTOR ASSEMBLY	23250E	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0150,)	-	-
39	NOZZLE HOLDER CLAMP	23695A	-	-	-
40	NO. 3 FUEL INJECTOR BACK-UP RING	23258	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0192,)	-	-
41	NO. 1 FUEL INJECTOR BACK-UP RING	23256	-	-	-
42	C-RING	-	-	-	-
43	INJECTOR VIBRATION INSULATOR	23291A	-	-	-
44	FUEL INJECTOR SEAL	23255A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0164,)	-	-

●

Non-reusable part

5.833,0.083 6.75,1.75 0.917,1.667 5.667,0.25 5.833,0.25 false 5.167,1.083 5.333,1.083 false 4.073,0.813 4.26,0.813 false 2.583,1.854 2.771,1.854 false 1.552,0.958 1.552,1.177 false 1.042,0.969 0.917,0.75 0.917,0.75 0.75,0.75 false 1,2.667 1,2.917 false 1.531,2.469 1.531,2.719 false 5.646,3.5 5.646,3.75 false 5.833,4.229 5.833,4.479 false 6.375,3.365 6.375,3.531 false 6.417,4.333 6.417,4.583 false 0.542,1.177 0.542,1.427 false 0.792,4.313 1.042,4.313 false 1.51,5.448 1.844,5.448 false 6.302,1.646 6.552,1.646 false 2.563,1.479 2.896,1.479 false 5.094,0.813 5.427,0.813 false 0.542,1.458 0.802,1.667 0.26,0.208 10 false ★ 0.417,1.438 0.677,1.646 0.26,0.208 10 false ● 5.354,0.104 5.688,0.375 0.333,0.271 18 false 46 5.542,0.969 5.875,1.24 0.333,0.271 18 false 48 3.042,1.688 3.375,1.958 0.333,0.271 18 false 49 0.896,2.948 1.229,3.219 0.333,0.271 18 false 52 0.448,0.604 0.781,0.875 0.333,0.271 18 false 50 1.531,1.198 1.865,1.469 0.333,0.271 18 false 51 1.448,2.74 1.781,3.01 0.333,0.271 18 false 53 1.344,2.76 1.604,2.969 0.26,0.208 10 false ● 1.438,4.146 1.771,4.417 0.333,0.271 18 false 47 2.208,5.323 2.542,5.594 0.333,0.271 18 false 54 6.302,3.552 6.677,3.854 0.375,0.302 18 false 56 6.302,4.635 6.677,4.958 0.375,0.323 18 false 55 5.615,3.74 5.875,3.948 0.26,0.208 10 false ● 5.792,4.5 6.052,4.708 0.26,0.208 10 false ● 6.927,4.271 7.135,4.458 0.208,0.188 10 false x2 6.948,3.021 7.156,3.208 0.208,0.188 10 false x3 6.615,1.552 6.875,1.76 0.26,0.208 10 false ● 4.521,0.552 4.729,0.74 0.208,0.188 10 false x4 4.438,0.135 4.646,0.323 0.208,0.188 10 false x4 0.583,1.146 0.792,1.333 0.208,0.188 10 false x2 0.302,2.667 0.51,2.854 0.208,0.188 10 false x3 3.75,0.646 4.083,0.917 0.333,0.271 18 false 45 2.948,1.365 3.292,1.573 0.344,0.208 10 false ● ★ 5.458,0.688 5.802,0.896 0.344,0.208 10 false ● ★

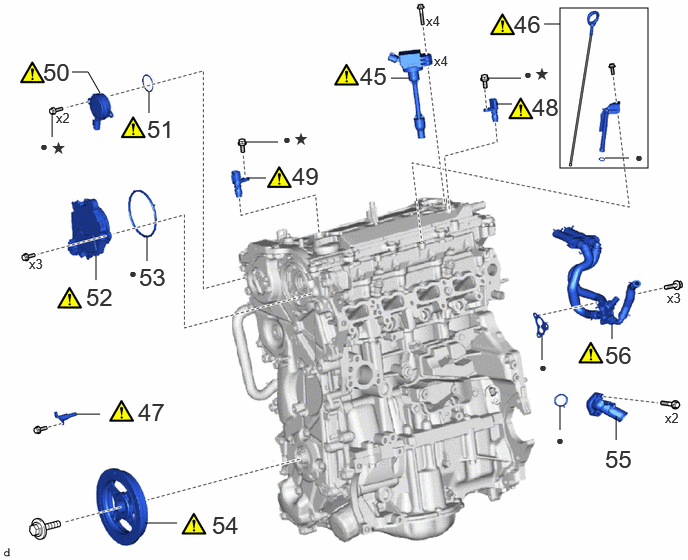

Procedure		Part Name Code
45	IGNITION COIL ASSEMBLY	19500	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0090,)	-	-
46	ENGINE OIL LEVEL DIPSTICK GUIDE	11452D	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0091,)	-	-
47	OIL PRESSURE CONTROL VALVE ASSEMBLY	15250	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0095,)	-	-
48	CAMSHAFT POSITION SENSOR (for Intake Side)	11102A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0097,)	-	-
49	CAMSHAFT POSITION SENSOR (for Exhaust Side)	11102A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0098,)	-	-
50	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	15370	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0070,)	-	-
51	O-RING	-	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0195,)	-	-
52	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY	13090D	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0071,)	-	-
53	CAM TIMING CONTROL MOTOR O-RING	13090E	-	-	-
54	CRANKSHAFT PULLEY ASSEMBLY	13470	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0074,)	-	-
55	WATER OUTLET SUB-ASSEMBLY	16304	-	-	-
56	WATER BY-PASS OUTLET	16351	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0077,)	-	-

●

Non-reusable part

★

Precoated part

3.083,2.25 3.167,2.25 3.167,2.25 3.25,2.198 false 3.813,0.469 4.229,0.469 false 4.625,0.948 5.042,0.948 false 4.49,1.958 4.823,1.958 false 2.51,2.573 2.844,2.573 false 1,4.333 1.333,4.333 false 3.115,0.115 3.448,0.115 false 3.563,0.146 3.875,0.344 0.313,0.198 10 false x4 3.813,0.469 4.125,0.667 0.313,0.198 10 false x4 2.271,1.063 2.583,1.26 0.313,0.198 10 false x12 3.375,2.063 3.688,2.26 0.313,0.198 10 false x6 2.969,2.156 3.281,2.354 0.313,0.198 10 false ● 2.365,2.49 2.677,2.688 0.313,0.198 10 false ● 4.885,1.854 5.198,2.052 0.313,0.198 10 false ● 5.521,0.75 5.917,1.083 0.396,0.333 18 false 57 4.688,0.333 5.083,0.667 0.396,0.333 18 false 58 0.646,4.177 1.042,4.51 0.396,0.333 18 false 59 0.833,4.844 1.146,5.042 0.313,0.198 10 false x3 2.823,0.01 3.135,0.208 0.313,0.198 10 false ● ★ 4.563,0.375 4.875,0.573 0.313,0.198 10 false ●

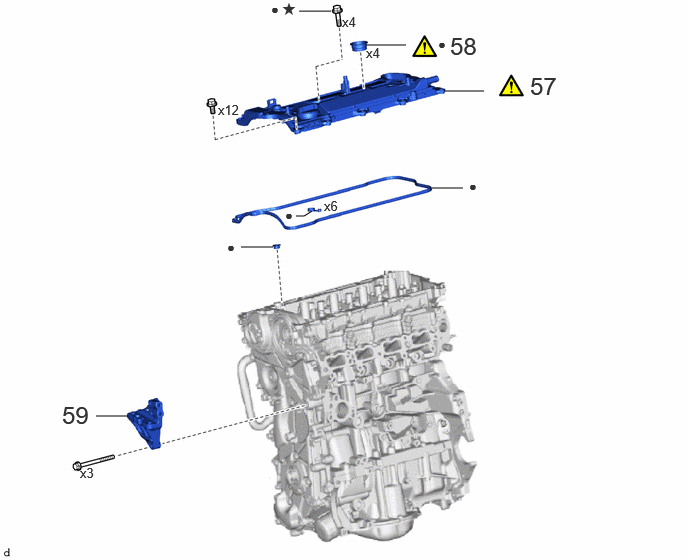

Procedure		Part Name Code
57	CYLINDER HEAD COVER SUB-ASSEMBLY	11201	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0139,)	-	-
58	SPARK PLUG TUBE GASKET	11193	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0140,)	-	-
59	ENGINE MOUNTING BRACKET RH	12315A	-	-	-

●

Non-reusable part

★

Precoated part

3.5,0.021 4.5,0.688 1,0.667 2.729,3.448 2.594,3.448 2.594,3.448 2.406,3.271 false 2.552,2.25 2.219,2.25 false 1.5,1.417 1.583,1.417 1.583,1.417 1.75,1.792 false 2.75,0.375 2.917,0.375 2.917,0.375 3,0.625 false 2.667,2.833 2.75,2.917 2.75,2.917 2.833,2.917 false 3.25,2.667 3.333,2.75 3.333,2.75 3.417,2.75 false 3.906,2.083 3.74,2.083 false 4.917,3 4.75,3 4.75,3 4.615,2.698 false 3.583,4.833 3.25,4.833 false 2.51,5.333 2.302,5.333 false 4.708,0.219 4.5,0.219 false 6.823,0.219 6.573,0.219 false 2.01,2.948 1.677,2.948 false 2,3.219 1.667,3.219 false 3.521,3.396 3.521,3.177 false 3.771,3.323 3.771,3.104 false 3.938,4.708 4.49,5.063 0.552,0.354 18 false 60 2,5.229 2.552,5.583 0.552,0.354 18 false 61 2.885,2.823 3.438,3.177 0.552,0.354 10 false *1 3.031,3.354 3.583,3.708 0.552,0.354 18 false 63 3.469,2.573 4.021,2.927 0.552,0.354 18 false 65 3.948,1.958 4.5,2.313 0.552,0.354 18 false 68 5.219,2.927 5.771,3.281 0.552,0.354 18 false 70 6.24,0.094 6.792,0.448 0.552,0.354 18 false 62 5,0.094 5.552,0.448 0.552,0.354 18 false 69 2.396,0.26 2.948,0.615 0.552,0.354 18 false 64 1.146,1.281 1.698,1.635 0.552,0.354 18 false 66 1.896,2.094 2.448,2.448 0.552,0.354 18 false 67 3.885,1.125 4.135,1.323 0.25,0.198 10 false x9 3.604,0.135 3.854,0.333 0.25,0.198 10 false x3 4.063,2.813 4.313,3.01 0.25,0.198 10 false x11 3.417,1.865 3.667,2.063 0.25,0.198 10 false x2 2.448,5.625 2.698,5.823 0.25,0.198 10 false x20 1.5,2.854 2.052,3.208 0.552,0.354 10 false *2 1.5,3.135 2.052,3.49 0.552,0.354 10 false *3 3.458,3.427 4.01,3.781 0.552,0.354 10 false *4 3.708,3.365 4.26,3.719 0.552,0.354 10 false *5

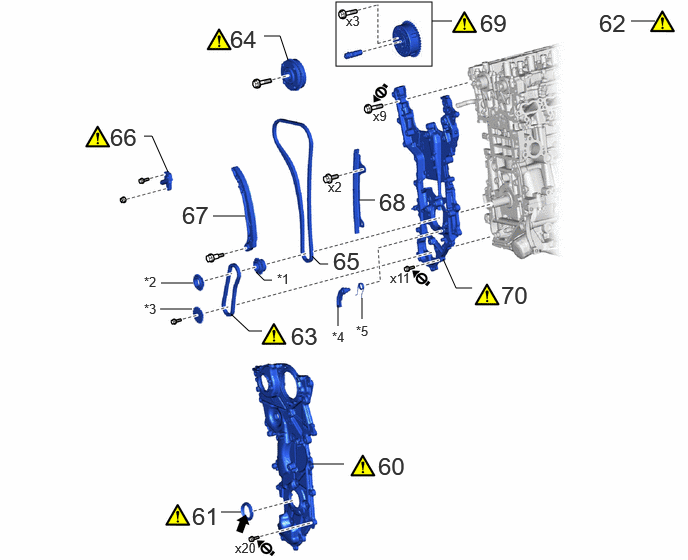

Procedure		Part Name Code
60	NO. 2 TIMING CHAIN COVER ASSEMBLY	11302B	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0143,)	-	-
61	TIMING CHAIN COVER OIL SEAL	11301C	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0099,)	-	-
62	NO. 1 CYLINDER TO TDC (COMPRESSION)	-	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0100,)	-	-
63	OIL PUMP DRIVE CHAIN SUB-ASSEMBLY	13507A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0101,)	-	-
64	CAMSHAFT TIMING GEAR ASSEMBLY	13050	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0109,)	-	-
65	CHAIN SUB-ASSEMBLY	13506	-	-	-
66	NO. 1 CHAIN TENSIONER ASSEMBLY	13540	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0102,)	-	-
67	CHAIN TENSIONER SLIPPER	13559	-	-	-
68	NO. 1 CHAIN VIBRATION DAMPER	13561	-	-	-
69	CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY	13070A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0108,)	-	-
70	TIMING CHAIN COVER ASSEMBLY	11310	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0110,)	-	-

*1	CRANKSHAFT TIMING SPROCKET	*2	OIL PUMP DRIVE SPROCKET
*3	OIL PUMP DRIVE SHAFT SPROCKET	*4	CHAIN TENSIONER PLATE
*5	CHAIN DAMPER SPRING	-	-
	MP grease		Do not apply lubricants to the threaded parts

4.906,2.677 5.24,2.677 false 4.802,3.083 5.156,3.083 false 4.729,3.292 5.083,3.375 5.083,3.375 5.25,3.375 false 5.115,3.833 5.448,3.833 false 5.01,4.635 5.344,4.635 false 4.5,1.917 4.833,1.917 false 4.104,1.635 4.438,1.635 false 6.521,0.219 6.854,0.219 false 3.552,0.385 3.719,0.385 false 1.885,1 3.802,1 false 3.552,1 3.552,1.146 false 3.167,1 3.167,1.25 false 2.75,1 2.75,1.365 false 2.198,1 2.198,1.396 false 4.146,2.313 4.385,2.177 4.385,2.177 4.552,2.177 false 3.729,0.073 4.042,0.271 0.313,0.198 10 false x2 4.135,0.625 4.448,0.823 0.313,0.198 10 false x9 4.51,0.74 4.823,0.938 0.313,0.198 10 false x14 3.729,2.479 4.042,2.677 0.313,0.198 10 false x3 4.208,2.281 4.521,2.479 0.313,0.198 10 false x10 2.479,3.583 2.792,3.781 0.313,0.198 10 false x6 2.458,3.396 2.771,3.594 0.313,0.198 10 false x6 2.135,3.719 2.448,3.917 0.313,0.198 10 false x4 5.396,4.521 5.708,4.719 0.313,0.198 10 false ● 4.708,3.354 5.021,3.552 0.313,0.198 10 false x16 4.792,3.115 5.104,3.313 0.313,0.198 10 false x16 3.208,0.26 3.583,0.583 0.375,0.323 18 false 71 1.521,0.917 1.854,1.25 0.333,0.333 18 false 73 5.771,0.083 6.521,0.417 0.75,0.333 18 false 80, 81 4.5,1.448 4.875,1.771 0.375,0.323 18 false 75 4.875,1.771 5.25,2.094 0.375,0.323 18 false 74 5.583,2.51 5.958,2.833 0.375,0.323 18 false 72 5.563,2.885 5.938,3.208 0.375,0.323 18 false 76 5.625,3.281 6,3.604 0.375,0.323 18 false 77 5.719,3.708 6.094,4.031 0.375,0.323 18 false 78 5.573,4.458 5.948,4.781 0.375,0.323 18 false 79 4.615,2.083 4.927,2.281 0.313,0.198 10 false ●

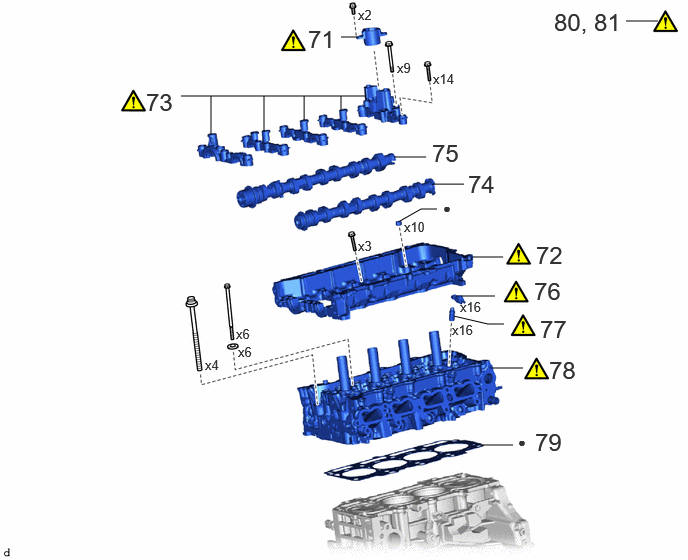

Procedure		Part Name Code
71	FUEL PUMP LIFTER GUIDE	23477	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0111,)	-	-
72	CAMSHAFT HOUSING SUB-ASSEMBLY	11103	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0112,)	-	-
73	CAMSHAFT BEARING CAP	-	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0144,)	-	-
74	INTAKE CAMSHAFT SUB-ASSEMBLY	13501A	-	-	-
75	EXHAUST CAMSHAFT SUB-ASSEMBLY	13502B	-	-	-
76	NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY	13801	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0118,)	-	-
77	VALVE LASH ADJUSTER ASSEMBLY	13750	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0119,)	-	-
78	CYLINDER HEAD SUB-ASSEMBLY	11101	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0007,)	-	-

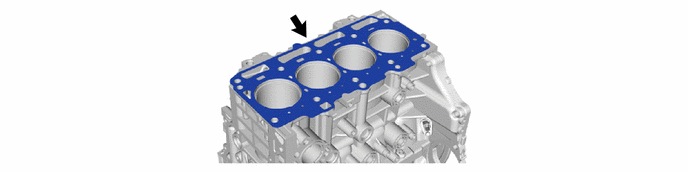

79	CYLINDER HEAD GASKET	11115	-	-	-
80	INSPECT CYLINDER HEAD SET BOLT	11101A	(202307,999999,_51,_144958,_0604259,RM100000002BTSR_01_0058,)	-	-
81	INSPECT CYLINDER HEAD SUB-ASSEMBLY	11101	-	-	-

●

Non-reusable part

PROCEDURE

Hide Display 1.INSTALL ENGINE ASSEMBLY TO ENGINE STAND

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY,

Hide Display 2.REMOVE ENGINE HANGERS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0245,

Hide Display 25733A 3.SEPARATE NO. 1 VACUUM PIPE

Click here(

202307,999999,_51,_144997,_0604323,RM100000002C1ON_01_0182,)

Hide Display 23211K 4.REMOVE BRACKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>REMOVAL202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0127,

Hide Display 17167 5.REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

Click here(

202307,999999,_51,_144997,_0604323,RM100000002C1ON_01_0158,)

Hide Display 17118 6.REMOVE MANIFOLD STAY

Click here(

202307,999999,_51,_144997,_0604323,RM100000002C1ON_01_0061,)

Hide Display 17141 7.REMOVE EXHAUST MANIFOLD

Click here(

202307,999999,_51,_144997,_0604323,RM100000002C1ON_01_0065,)

Hide Display 22030 8.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

Click here(

202307,999999,_51,_144956,_0604219,RM100000002BTIE_01_0026,)

Hide Display 22271 9.REMOVE THROTTLE BODY GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202307,999999,_51,_144956,_0604219,RM100000002BTIE_01_0027,

Hide Display 16267 10.DISCONNECT NO. 3 WATER BY-PASS HOSE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR COOLER>REMOVAL202307,999999,_51,_144996,_0604306,RM100000002BTUL_01_0052,

Hide Display 16281 11.DISCONNECT NO. 4 WATER BY-PASS HOSE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR COOLER>REMOVAL202307,999999,_51,_144996,_0604306,RM100000002BTUL_01_0051,

Hide Display 25680 12.REMOVE EGR COOLER ASSEMBLY

Click here(

202307,999999,_51,_144996,_0604306,RM100000002BTUL_01_0050,)

Hide Display 25685 13.REMOVE NO. 1 EGR COOLER GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR COOLER>REMOVAL202307,999999,_51,_144996,_0604306,RM100000002BTUL_01_0048,

Hide Display 25601 14.REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

Click here(

202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0044,)

Hide Display 25629 15.REMOVE EGR VALVE ADAPTER GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR VALVE>REMOVAL202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0043,

Hide Display 25628 16.REMOVE EGR INLET GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR VALVE>REMOVAL202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0042,

Hide Display 16281 17.DISCONNECT NO. 4 WATER BY-PASS HOSE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR VALVE>REMOVAL202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0041,

Hide Display 16296 18.DISCONNECT NO. 8 WATER BY-PASS HOSE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>EGR VALVE>REMOVAL202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0040,

Hide Display 25620 19.REMOVE EGR VALVE ASSEMBLY

Click here(

202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0039,)

Hide Display 25627 20.REMOVE EGR VALVE GASKET

Click here(

202307,999999,_51,_144996,_0604306,RM100000002BTUL_01_0049,)

Hide Display 16279 21.REMOVE NO. 3 WATER BY-PASS PIPE

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0074,)

Hide Display 17138B 22.REMOVE INTAKE MANIFOLD STAY

Click here(

202307,999999,_51,_144997,_0604322,RM100000002BTVQ_01_0178,)

Hide Display 17111 23.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL202307,999999,_51,_144997,_0604322,RM100000002BTVQ_01_0179,

Hide Display 17177 24.REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL202307,999999,_51,_144997,_0604322,RM100000002BTVQ_01_0185,

Hide Display 23910A 25.DISCONNECT FUEL TUBE SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0116,)

Hide Display 23801P 26.REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0115,)

Hide Display 23100X 27.REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)

Click here(

202307,999999,_51,_144959,_0604359,RM100000002BU3P_01_0041,)

Hide Display 23191 28.REMOVE FUEL PUMP FLANGE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL PUMP (for High Pressure)>REMOVAL202307,999999,_51,_144959,_0604359,RM100000002BU3P_01_0039,

Hide Display 23224D 29.REMOVE FUEL PUMP SPACER GASKET

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL PUMP (for High Pressure)>REMOVAL202307,999999,_51,_144959,_0604359,RM100000002BU3P_01_0037,

Hide Display 23470 30.REMOVE FUEL PUMP LIFTER ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL PUMP (for High Pressure)>REMOVAL202307,999999,_51,_144959,_0604359,RM100000002BU3P_01_0036,

Hide Display 31.REMOVE WATER BY-PASS HOSE ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>REMOVAL202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0072,

Hide Display 23807 32.REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

Click here(

202307,999999,_51,_144959,_0604266,RM100000002BTTA_01_0083,)

Hide Display 23891 33.REMOVE FUEL DELIVERY SPACER

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Port Injection)>REMOVAL202307,999999,_51,_144959,_0604266,RM100000002BTTA_01_0082,

Hide Display 23291 34.REMOVE INJECTOR VIBRATION INSULATOR

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Port Injection)>REMOVAL202307,999999,_51,_144959,_0604266,RM100000002BTTA_01_0081,

Hide Display 82125N 35.REMOVE NO. 5 ENGINE WIRE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Port Injection)>REMOVAL202307,999999,_51,_144959,_0604266,RM100000002BTTA_01_0080,

Hide Display 23250F 36.REMOVE PORT FUEL INJECTOR ASSEMBLY

Click here(

202307,999999,_51,_144959,_0604266,RM100000002BTTA_01_0079,)

Hide Display 23814B 37.REMOVE FUEL DELIVERY PIPE

Click here(

202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0034,)

Hide Display 23250E 38.REMOVE DIRECT FUEL INJECTOR ASSEMBLY

Click here(

202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0033,)

Hide Display 23695A 39.REMOVE NOZZLE HOLDER CLAMP

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Direct Injection)>REMOVAL202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0032,

Hide Display 23258 40.REMOVE NO. 3 FUEL INJECTOR BACK-UP RING

Click here(

202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0031,)

Hide Display 23256 41.REMOVE NO. 1 FUEL INJECTOR BACK-UP RING

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Direct Injection)>REMOVAL202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0030,

Hide Display 42.REMOVE C-RING

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Direct Injection)>REMOVAL202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0039,

Hide Display 23291A 43.REMOVE INJECTOR VIBRATION INSULATOR

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL INJECTOR (for Direct Injection)>REMOVAL202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0038,

Hide Display 23255A 44.REMOVE FUEL INJECTOR SEAL

Click here(

202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0036,)

Hide Display 19500 45.REMOVE IGNITION COIL ASSEMBLY

Click here(

202307,999999,_51,_144956,_0604223,RM100000002BTIR_06_0002,)

Hide Display 11452D 46.REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSD_01_0001,)

Hide Display 15250 47.REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

Click here(

202307,999999,_51,_144998,_0604333,RM100000002BTWG_01_0006,)

Hide Display 11102A 48.REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

Click here(

202307,999999,_51,_144956,_0604222,RM100000002BTIP_02_0010,)

Hide Display 11102A 49.REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

Click here(

202307,999999,_51,_144956,_0604222,RM100000002BTIP_02_0011,)

Hide Display 15370 50.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here(

202307,999999,_51,_144956,_0604217,RM100000002BTI6_01_0009,)

Hide Display 51.REMOVE O-RING

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL SOLENOID>REMOVAL202307,999999,_51,_144956,_0604217,RM100000002BTI6_01_0010,

Hide Display 13090D 52.REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

Click here(

202307,999999,_51,_144956,_0604218,RM100000002BTIB_01_0029,)

Hide Display 13090E 53.REMOVE CAM TIMING CONTROL MOTOR O-RING

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>CAMSHAFT TIMING CONTROL MOTOR>REMOVAL202307,999999,_51,_144956,_0604218,RM100000002BTIB_01_0030,

Hide Display 13470 54.REMOVE CRANKSHAFT PULLEY ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0014,)

Hide Display 16304 55.REMOVE WATER OUTLET SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0144,

Hide Display 16351 56.REMOVE WATER BY-PASS OUTLET

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0121,)

Hide Display 11201 57.REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0048,)

Hide Display 11193 58.REMOVE SPARK PLUG TUBE GASKET

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0049,)

Hide Display 12315A 59.REMOVE ENGINE MOUNTING BRACKET RH

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0050,

Hide Display 11320B 60.REMOVE NO. 2 TIMING CHAIN COVER ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0047,)

Hide Display 11301C 61.REMOVE TIMING CHAIN COVER OIL SEAL

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0033,)

Hide Display 62.SET NO. 1 CYLINDER TO TDC (COMPRESSION)

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0111,)

Hide Display 13507A 63.REMOVE OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0150,)

Hide Display 13050 64.REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0164,)

Hide Display 13506 65.REMOVE CHAIN SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0165,

Hide Display 13540 66.REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0166,)

Hide Display 13559 67.REMOVE CHAIN TENSIONER SLIPPER

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0167,)

Hide Display 13561 68.REMOVE NO. 1 CHAIN VIBRATION DAMPER

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0168,

Hide Display 13070A 69.REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0169,)

Hide Display 11310 70.REMOVE TIMING CHAIN COVER ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0137,)

Hide Display 23477 71.REMOVE FUEL PUMP LIFTER GUIDE

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0139,)

Hide Display 11103 72.REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0059,)

Hide Display 73.REMOVE CAMSHAFT BEARING CAP

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0060,)

Hide Display 13501A 74.REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0062,

Hide Display 13502B 75.REMOVE EXHAUST CAMSHAFT SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0110,

Hide Display 13801 76.REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0065,)

Hide Display 13750 77.REMOVE VALVE LASH ADJUSTER ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0066,)

Hide Display 11101 78.REMOVE CYLINDER HEAD SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSB_01_0140,)

Hide Display 11115 79.REMOVE CYLINDER HEAD GASKET

Hide Display 11101A 80.INSPECT CYLINDER HEAD SET BOLT

Click here(

202307,999999,_51,_144958,_0604254,RM100000002BTSA_01_0003,)

Hide Display 11101 81.INSPECT CYLINDER HEAD SUB-ASSEMBLY

Click here(

202307,999999,_51,_144958,_0604255,RM100000002BTSF_01_0009,)
