HYBRID / BATTERY CONTROL SERVICE PLUG GRIP REMOVAL

CAUTION / NOTICE / HINT

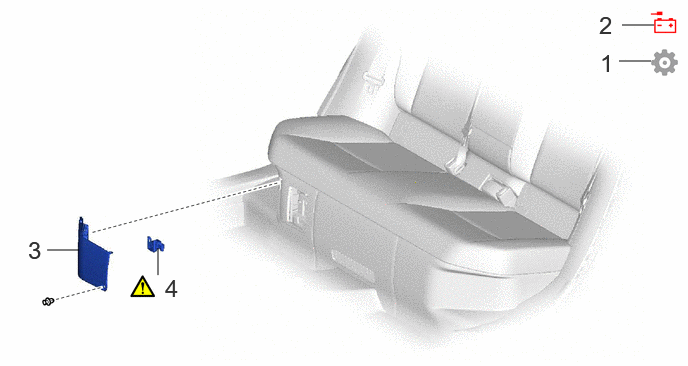

COMPONENTS (REMOVAL)

1.646,2.583 1.646,2.865 false 0.823,2.604 0.49,2.604 false 6.813,0.26 6.479,0.26 false 6.781,0.635 6.448,0.635 false 0.292,2.458 0.552,2.729 0.26,0.271 18 false 3 1.719,2.854 1.979,3.125 0.26,0.271 18 false 4 6.24,0.115 6.5,0.385 0.26,0.271 18 false 2 6.25,0.51 6.51,0.781 0.26,0.271 18 false 1

Procedure		Part Name Code
1	CHECK FOR DTC	-	-	-	(202307,999999,_51,_144957,_0604242,RM100000002BTR7_01_0040,)
2	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	BATTERY SERVICE HOLE COVER	-	-	-	-
4	SERVICE PLUG GRIP	G3834	(202307,999999,_51,_144957,_0604242,RM100000002BTR7_01_0008,)	-	-

CAUTION / NOTICE / HINT

CAUTION:: ·

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the repair manual.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION202307,999999,_51,_144957,_0604232,RM100000002BTK4,

·

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven.

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.CHECK FOR DTC

0.479,0.073 0.76,0.427 0.281,0.354 18 false i

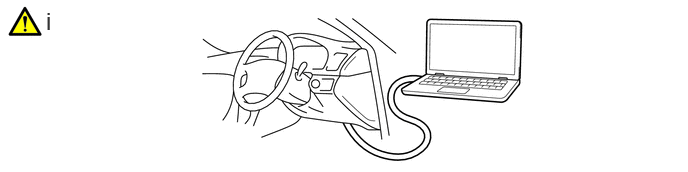

Check for DTCs.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>UTILITY202307,999999,_51,_144957,_0604232,RM100000002BTK8,

CAUTION:: ·

Confirm that DTC P0AA649 (Hybrid / EV Battery Voltage System Isolation Internal Electronic Failure), P1C7C49 (Hybrid / EV Battery Voltage System Isolation (A/C Area) Internal Electronic Failure), P1C7D49 (Hybrid / EV Battery Voltage System Isolation (Hybrid/EV Battery Area) Internal Electronic Failure), P1C7E49 (Hybrid / EV Battery Voltage System Isolation (Transaxle Area) Internal Electronic Failure) or P1C7F49 (Hybrid / EV Battery Voltage System Isolation (Direct Current Area) Internal Electronic Failure) are not output before removing or installing the HV battery. If this DTC is output, perform troubleshooting for this DTC first.

·

To reduce the risk of electric shock, do not perform troubleshooting before checking for DTCs.

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

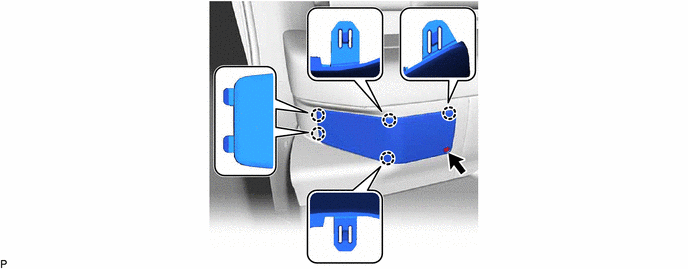

Hide Display 3.REMOVE BATTERY SERVICE HOLE COVER

Hide Display G3834 4.REMOVE SERVICE PLUG GRIP

CAUTION:: ·

Be sure to wear insulated gloves.

·

Do not inspect or service the high voltage system with the service plug grip installed.

·

To reduce the risk of electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.

·

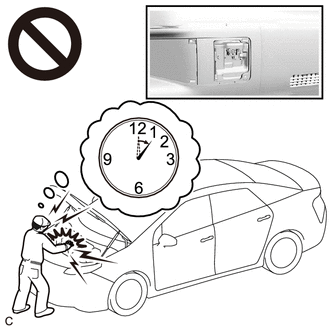

To reduce the risk of electric shock, make sure to wait at least 10 minutes after removing the service plug grip to fully discharge the high voltage capacitor inside the inverter with converter assembly.

·

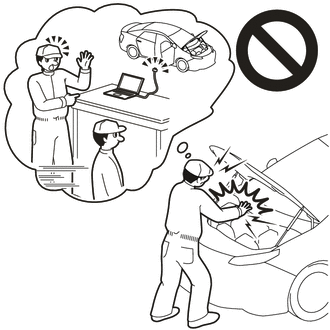

Keep the removed service plug grip in your pocket to prevent other technicians from accidentally installing it while you are servicing the vehicle.

NOTICE:: ·

After removing the service plug grip, turning the power switch on (READY) may cause a malfunction. Do not turn the power switch on (READY) unless instructed by the repair manual.

·

Do not touch the terminals of the service plug grip.

·

If the service plug grip has been struck or dropped, replace it.

HINT:: Waiting for at least 10 minutes is required to discharge the high voltage capacitor inside the inverter with converter assembly.

0.167,0.083 0.448,0.438 0.281,0.354 18 false i

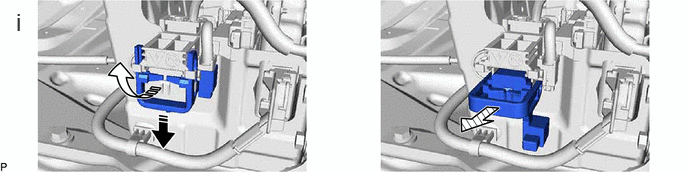

	Remove in this Direction (1)		Remove in this Direction (2)
	Remove in this Direction (3)	-	-

While wearing insulated gloves, rotate the handle of the service plug grip and remove the service plug grip as indicated by the arrows, in the order shown in the illustration.
