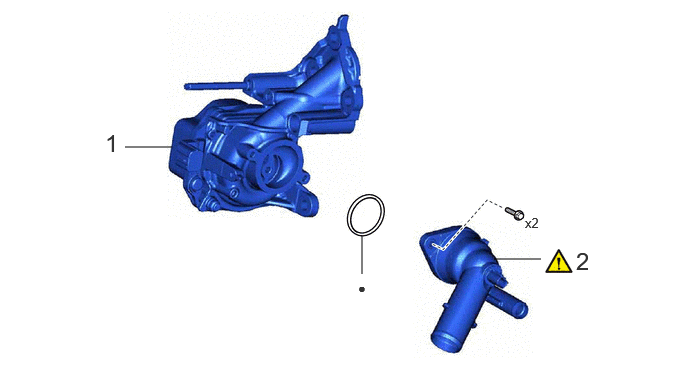

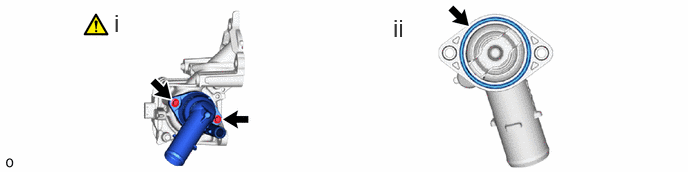

M20F-FXS, M20G-FXS COOLING  THERMOSTAT  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during water inlet with thermostat sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly · Gas leak from exhaust system is repaired	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
