RM38T0EC _51 Engine / Hybrid System _144716 M20F-FXS, M20G-FXS COOLING _0602998 WATER PUMP A

M20F-FXS, M20G-FXS COOLING  WATER PUMP  REMOVAL


CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

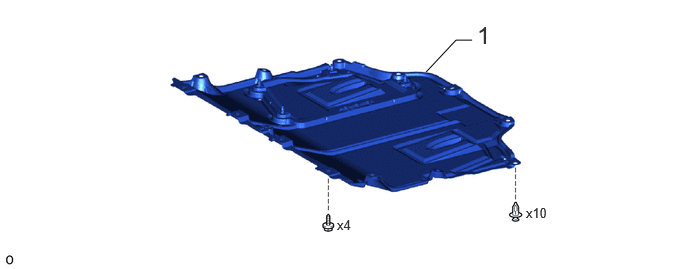

A521217N03
4.438,0.75 4.75,0.417 4.75,0.417 4.917,0.417 false 4.969,0.219 5.24,0.635 0.271,0.417 18 false 1 3.51,2.26 3.781,2.5 0.271,0.24 10 false x4 5.479,2.135 5.75,2.375 0.271,0.24 10 false x10

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -

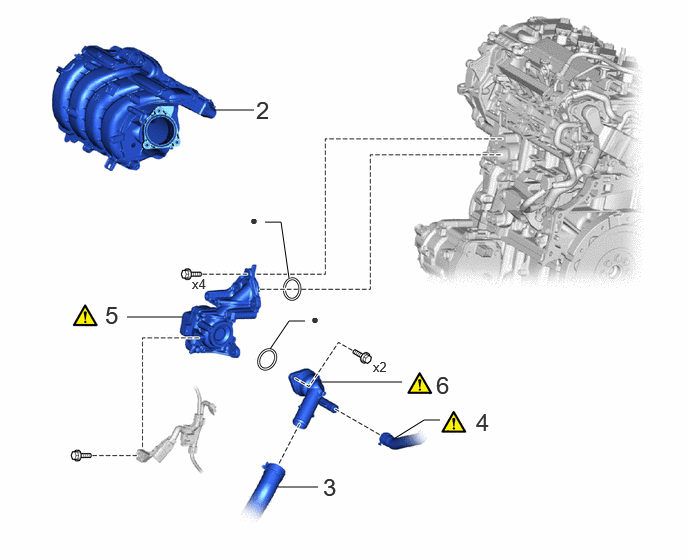

A546621N01
3.354,3.979 4.188,3.979 false 4.115,4.563 4.417,4.375 4.417,4.375 4.583,4.375 false 1.323,3.302 1.906,3.302 false 2.896,5.073 3.313,5.073 false 2.229,1.146 2.646,1.146 false 2.813,3.635 3.01,3.344 3.01,3.344 3.177,3.344 false 3.01,2.896 2.927,2.313 2.927,2.313 2.76,2.313 true 2.667,1 2.948,1.354 0.281,0.354 18 false 2 1.094,3.135 1.375,3.49 0.281,0.354 18 false 5 4.542,3.865 4.823,4.219 0.281,0.354 18 false 6 4.958,4.25 5.24,4.604 0.281,0.354 18 false 4 3.365,4.927 3.646,5.281 0.281,0.354 18 false 3 2,2.875 2.313,3.073 0.313,0.198 10 false x4 3.885,3.74 4.198,3.938 0.313,0.198 10 false x2 2.604,2.208 2.917,2.406 0.313,0.198 10 false 3.24,3.24 3.552,3.438 0.313,0.198 10 false

Procedure Part Name Code
Z101186

Z101188

Z101187

2 INTAKE MANIFOLD 17111 - - -
3 NO. 2 RADIATOR HOSE 16572D - - -
4 NO. 7 WATER BY-PASS HOSE - (Click here) - -
5 ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) 16032 (Click here) - -
6 WATER INLET SUB-ASSEMBLY WITH THERMOSTAT 16031 (Click here) - -

Non-reusable part - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of throttle body with motor assembly

·

Cleaning the deposits from the throttle body with motor assembly

·

Gas leak from exhaust system is repaired


Inspection After Repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

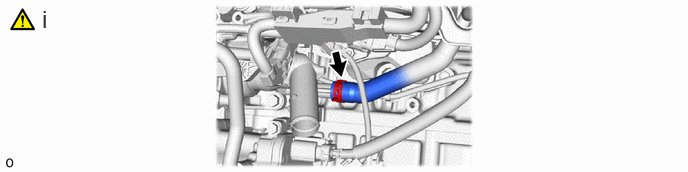

Hide 4.DISCONNECT NO. 7 WATER BY-PASS HOSE

a.
A546625N01
0.438,0.052 0.719,0.406 0.281,0.354 18 false i

i.

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly

NOTICE:
·

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.

·

Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

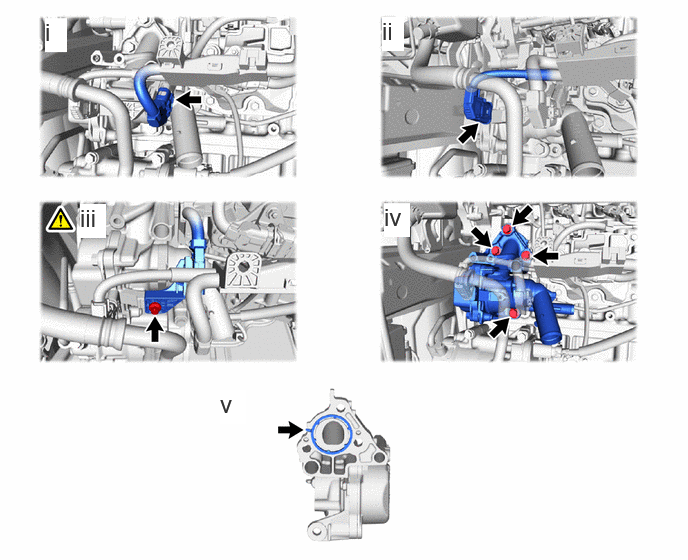

Hide 16032 5.REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

a.
A546623N01
0.469,0.188 0.698,0.542 0.229,0.354 18 true i 3.979,0.177 4.208,0.531 0.229,0.354 18 true ii 0.833,2.125 1.104,2.479 0.271,0.354 18 true iii 4,2.115 4.271,2.469 0.271,0.354 18 true iv 2.292,4.063 2.563,4.417 0.271,0.354 18 true v

i.

Disconnect the sensor wire connector.


ii.

Disconnect the engine water pump assembly (water inlet housing) connector.


iii.

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).


iv.

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.


v.

Remove the gasket from the engine water pump assembly (water inlet housing).



Hide 16031 6.REMOVE WATER INLET SUB-ASSEMBLY(WITH THERMOSTAT)
