EXTERIOR PANELS / TRIM  REAR DOOR WINDOW FRAME MOULDING  REMOVAL


CAUTION / NOTICE / HINT

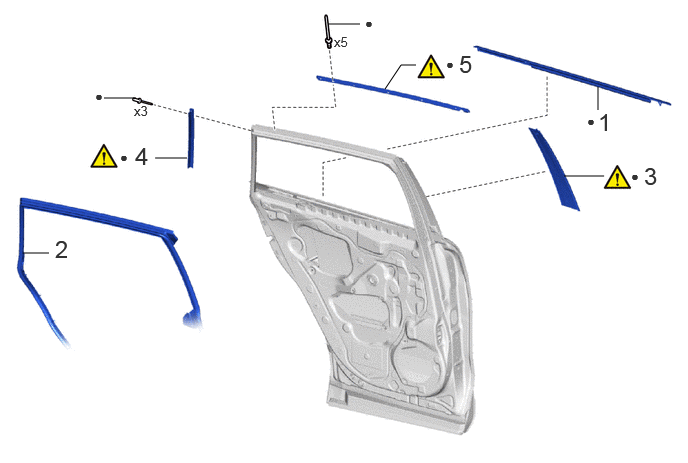

COMPONENTS (REMOVAL)
B577684N01
0.24,2.635 0.51,2.635 false 1.615,1.646 1.948,1.646 false 5.875,1.833 6.292,1.833 false 4.333,0.677 4.177,0.677 4.177,0.677 4.01,0.927 false 6.229,0.906 6.229,1.146 false 1.083,1.021 1.417,1.021 false 3.417,0.25 3.75,0.25 false 6.115,1.177 6.219,1.385 0.104,0.208 10 false ● 6.573,1.75 6.677,1.958 0.104,0.208 10 false ● 4.646,0.583 4.75,0.792 0.104,0.208 10 false ● 1.25,1.552 1.344,1.75 0.094,0.198 10 false ● 1.396,1.073 1.594,1.281 0.198,0.208 10 false x3 3.479,0.354 3.677,0.563 0.198,0.208 10 false x5 0.573,2.448 0.76,2.75 0.188,0.302 18 false 2 1.406,1.479 1.594,1.781 0.188,0.302 18 false 4 4.781,0.521 4.969,0.823 0.188,0.302 18 false 5 6.229,1.125 6.417,1.427 0.188,0.302 18 false 1 6.708,1.688 6.896,1.99 0.188,0.302 18 false 3 0.99,0.917 1.083,1.115 0.094,0.198 10 false ● 3.802,0.156 3.896,0.354 0.094,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR DOOR BELT MOULDING ASSEMBLY 75740 - - -
2 REAR DOOR WEATHERSTRIP 67872 - - -
3 REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE) 75762B (Click here) - -
4 REAR DOOR WINDOW FRAME MOULDING (REAR PILLAR SIDE) 75766B (Click here) - -
5 REAR DOOR UPPER WINDOW FRAME MOULDING 75764A (Click here) - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

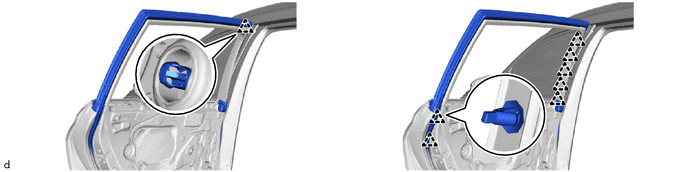

Hide 67872 2.SEPARATE REAR DOOR WEATHERSTRIP

a.
B583073

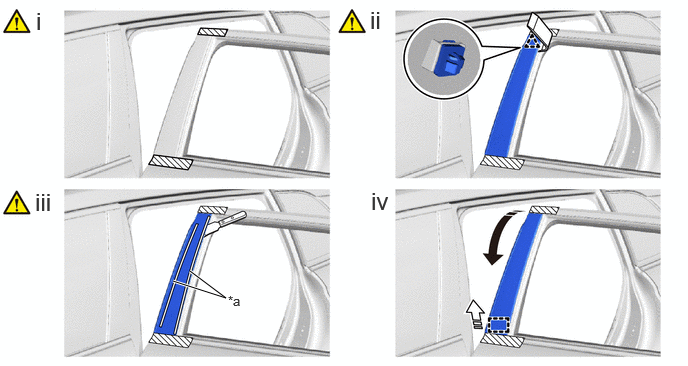

Hide 75762B 3.REMOVE REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

a.
B583074C01
1.802,2.927 2.354,3.104 2.354,3.104 1.979,2.823 true 2.375,3.052 2.688,3.208 0.313,0.156 10 false *a 0.375,0.073 0.656,0.448 0.281,0.375 18 false i 3.854,0.063 4.135,0.438 0.281,0.375 18 false ii 0.365,1.958 0.646,2.333 0.281,0.375 18 false iii 3.865,1.948 4.146,2.323 0.281,0.375 18 false iv
*a Double-sided Tape - -
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


i.

Apply protective tape around the rear door window frame moulding (center pillar side) as shown in the illustration.


ii.

Using a moulding remover D, disengage the clip.


iii.

Using a scraper, separate the double-sided tape from the rear door window frame moulding (center pillar side).

NOTICE:

Be careful not to damage the rear door panel.



iv.

Disengage the guide to remove the rear door window frame moulding (center pillar side) as shown in the illustration.



Hide 75766B 4.REMOVE REAR DOOR WINDOW FRAME MOULDING (REAR PILLAR SIDE)

a.
B583075C01
1.208,1.104 0.99,0.781 false 1.24,1.042 1.552,1.198 0.313,0.156 10 false *a 0.813,1.219 1.125,1.375 0.313,0.156 10 false A 0.438,0.042 0.906,0.375 0.469,0.333 18 false i, ii 6.198,0.031 6.667,0.365 0.469,0.333 18 false iii 3.135,2.323 3.604,2.656 0.469,0.333 18 false iv, v
*a Tape - -


i.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


ii.

Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement Area Measurement
A 5.0 mm (0.197 in.) - -


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



iii.

Apply protective tape around the rear door window frame moulding (rear pillar side) as shown in the illustration.


iv.

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 3 rivets.

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




v.

Disengage the guide to remove the rear door window frame moulding (rear pillar side) from the rear door frame.

HINT:

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.




Hide 75764A 5.REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING

a.
B583076C01
1.219,0.979 0.99,0.719 false 1.271,0.896 1.583,1.052 0.313,0.156 10 false *a 0.771,1.177 1.083,1.333 0.313,0.156 10 false A 0.552,0.042 0.99,0.365 0.438,0.323 18 false i, ii 3.99,0.031 4.427,0.354 0.438,0.323 18 false iii 3.01,2.125 3.552,2.448 0.542,0.323 18 false iv, v
*a Tape - -


i.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


ii.

Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement Area Measurement
A 5.0 mm (0.197 in.) - -


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



iii.

Apply protective tape around the rear door upper window frame moulding as shown in the illustration.


iv.

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 5 rivets.

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




v.

Disengage the guides to remove the rear door upper window frame moulding from the rear door frame.

HINT:

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
