EXTERIOR PANELS / TRIM REAR DOOR BELT MOULDING REMOVAL

CAUTION / NOTICE / HINT

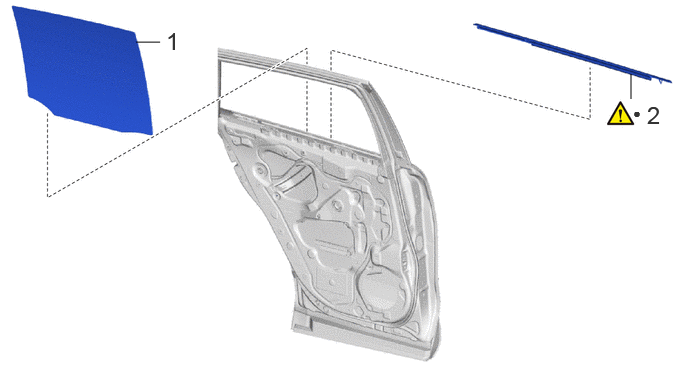

COMPONENTS (REMOVAL)

1.417,0.438 1.667,0.438 false 6.573,0.771 6.573,1.031 false 1.729,0.281 2.01,0.635 0.281,0.354 18 false 1 6.74,1.052 7.021,1.406 0.281,0.354 18 false 2 6.594,1.094 6.688,1.292 0.094,0.198 10 false ●

Procedure		Part Name Code
1	REAR DOOR GLASS SUB-ASSEMBLY	68104	-	-	-
2	REAR DOOR BELT MOULDING ASSEMBLY	75740	(202307,999999,_59,_114126,_0505931,RM100000002BK2F_01_0256,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 68104 1.REMOVE REAR DOOR GLASS SUB-ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>REMOVAL202307,999999,_58,_115226,_0510792,RM100000002CO91,

Hide Display 75740 2.REMOVE REAR DOOR BELT MOULDING ASSEMBLY

0.354,0.01 0.51,0.313 0.156,0.302 18 false i 3.677,0 3.875,0.302 0.198,0.302 18 false ii

Remove in this Direction

Apply protective tape around the rear door belt moulding assembly.

ii.

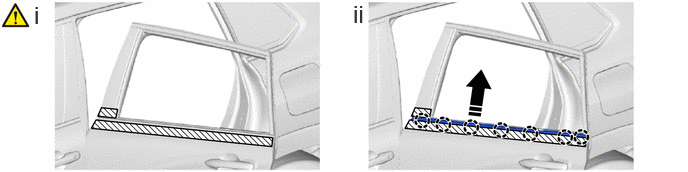

Disengage the claws to remove the rear door belt moulding assembly as shown in the illustration.
