HEATING / AIR CONDITIONING ION GENERATOR REMOVAL

CAUTION / NOTICE / HINT

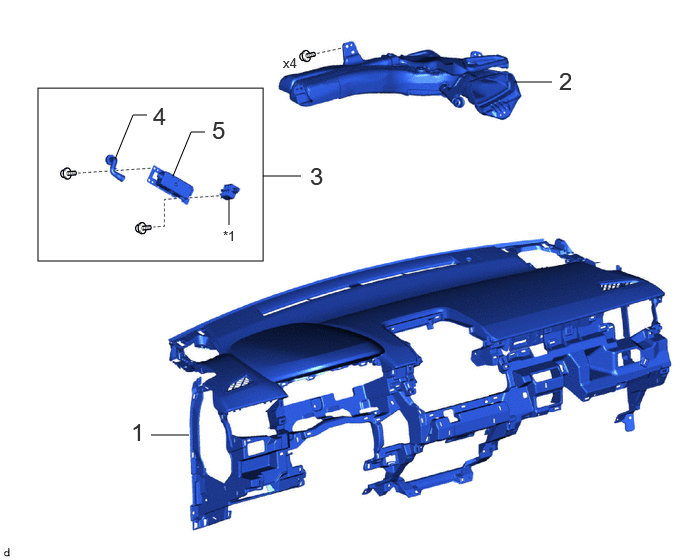

COMPONENTS (REMOVAL)

0.396,0.917 2.74,2.719 2.344,1.802 5.354,0.854 5.75,0.854 false 1.573,4.531 1.969,4.531 false 2.385,2.052 2.385,2.344 false 1.198,1.656 1.385,1.198 1.385,1.198 1.531,1.198 false 1.802,1.833 1.99,1.375 1.99,1.375 2.135,1.375 false 2.74,1.833 3.135,1.833 false 1.365,4.354 1.646,4.708 0.281,0.354 18 false 1 5.823,0.698 6.104,1.052 0.281,0.354 18 false 2 3.229,1.688 3.51,2.042 0.281,0.354 18 false 3 1.594,1.063 1.875,1.417 0.281,0.354 18 false 4 2.208,1.208 2.49,1.563 0.281,0.354 18 false 5 2.323,2.375 2.635,2.573 0.313,0.198 10 false *1 2.948,0.573 3.26,0.771 0.313,0.198 10 false x4

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-
2	NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY	55085	-	-	-
3	ION GENERATOR SUB-ASSEMBLY WITH NO. 1 ION GENERATOR BRACKET	-	-	-	-
4	NO. 6 HEATER TO REGISTER DUCT	55848B	-	-	-
5	ION GENERATOR SUB-ASSEMBLY	88051A	-	-	-

NO. 1 ION GENERATOR BRACKET

CAUTION / NOTICE / HINT

CAUTION:: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD,

Hide Display 55085 2.REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>DISASSEMBLY202307,999999,_58,_112291,_0501085,RM100000002BHCE_01_0043,

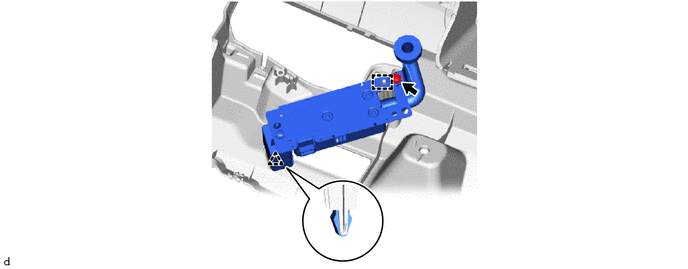

Hide Display 3.REMOVE ION GENERATOR SUB-ASSEMBLY WITH NO. 1 ION GENERATOR BRACKET

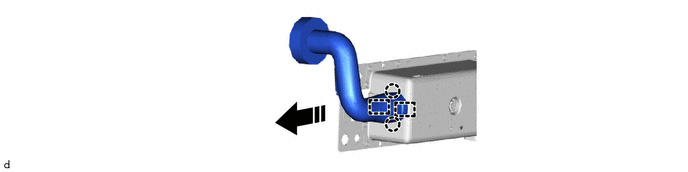

Hide Display 55848B 4.REMOVE NO. 6 HEATER TO REGISTER DUCT

0,0 0,0 false

Remove in this Direction

Hide Display 88051A 5.REMOVE ION GENERATOR SUB-ASSEMBLY
