AIR CONDITIONING AMPLIFIER
A
HEATING / AIR CONDITIONING AIR CONDITIONING AMPLIFIER INSTALLATION
CAUTION / NOTICE / HINT

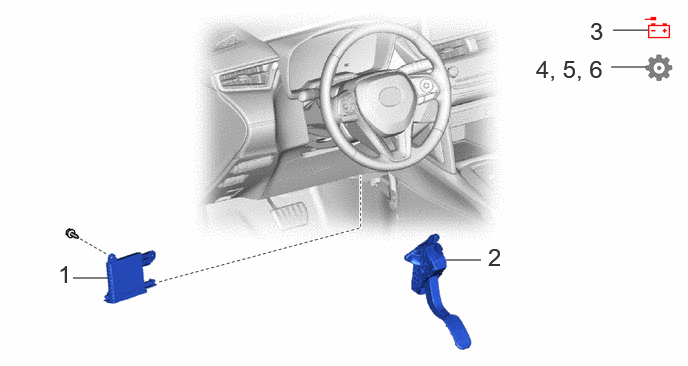

COMPONENTS (INSTALLATION)
4.646,2.708 5.01,2.708
false
0.76,2.896 1.125,2.896
false
6.385,0.313 6.75,0.313
false
6.365,0.698 6.729,0.698
false
5.083,2.531 5.365,2.885
0.281,0.354
18
false
2
0.604,2.708 0.885,3.063
0.281,0.354
18
false
1
6.146,0.177 6.427,0.531
0.281,0.354
18
false
3
5.583,0.573 6.542,0.969
0.958,0.396
18
false
4, 5, 6
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | 88650N | - | - | - |
| 2 | ACCELERATOR PEDAL SENSOR ASSEMBLY | 78110K | - | - | - |
| 3 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 4 | INITIALIZATION SERVO MOTOR | - | - | - | ( 202307,999999,_58,_104612,_0500021,RM100000002BK25_01_0024,)
|
| 5 | PERFORM REGISTRATION | - | - | - | (202307,999999,_58,_104612,_0500021,RM100000002BK25_01_0028,)
|
| 6 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | (202307,999999,_58,_104612,_0500021,RM100000002BK25_01_0026,)
|
PROCEDURE
88650N
1.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
78110K
2.INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY
·
3.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
·
4. INITIALIZATION SERVO MOTOR
·
for Gasoline Model with Automatic Air Conditioning System:
·
for Gasoline Model with Manual Air Conditioning System for Electrical Control Type:
5.PERFORM REGISTRATION (for Gasoline Model)
6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
