RM38T0EC _56 Audio / Visual / Telematics _111967 NAVIGATION / MULTI INFO DISPLAY _0499991 NAVIGATION ANTENNA A

NAVIGATION / MULTI INFO DISPLAY NAVIGATION ANTENNA REMOVAL

CAUTION / NOTICE / HINT

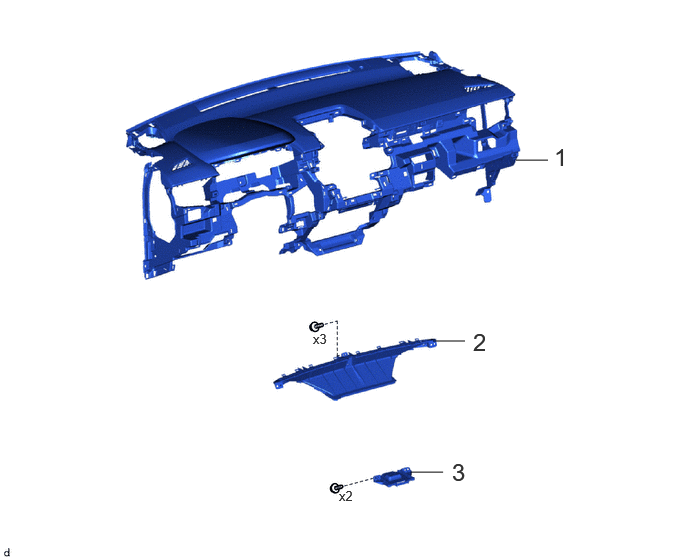

COMPONENTS (REMOVAL)

5.375,1.667 5.708,1.667 false 4.51,3.552 4.844,3.552 false 4.281,4.917 4.615,4.917 false 5.771,1.49 6.094,1.906 0.323,0.417 18 false 1 4.927,3.417 5.25,3.833 0.323,0.417 18 false 2 4.708,4.771 5.031,5.188 0.323,0.417 18 false 3 3.531,5.083 3.844,5.281 0.313,0.198 10 false x2 3.26,3.448 3.573,3.646 0.313,0.198 10 false x3

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD ASSEMBLY	-	-	-	-
2	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
3	NAVIGATION ANTENNA ASSEMBLY WITH BRACKET	-	-	-	-

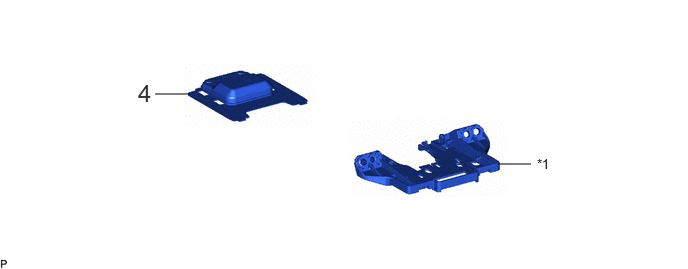

1.615,0.979 1.948,0.979 false 5.198,1.708 5.531,1.708 false 1.438,0.823 1.719,1.177 0.281,0.354 18 false 4 5.594,1.625 5.927,1.865 0.333,0.24 10 false *1

Procedure		Part Name Code
4	NAVIGATION ANTENNA ASSEMBLY	86860	-	-	-

NAVIGATION ANTENNA BRACKET

CAUTION / NOTICE / HINT

CAUTION:: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD,

Hide Display 55950G 2.REMOVE DEFROSTER NOZZLE ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>DISASSEMBLY202307,999999,_58,_112291,_0501085,RM100000002BHCE_01_0050,

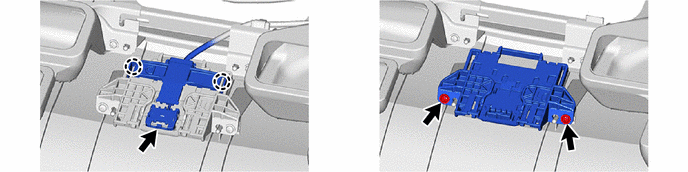

Hide Display 3.REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

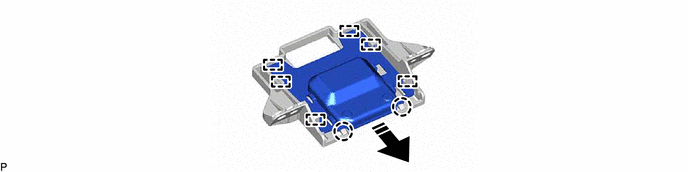

Hide Display 86860 4.REMOVE NAVIGATION ANTENNA ASSEMBLY

0,0 0,0 false

Remove in this Direction
