RM38T0EC _56 Audio / Visual / Telematics _111966 AUDIO / VIDEO _0499967 RADIO ANTENNA CORD A

AUDIO / VIDEO  RADIO ANTENNA CORD  REMOVAL


CAUTION / NOTICE / HINT

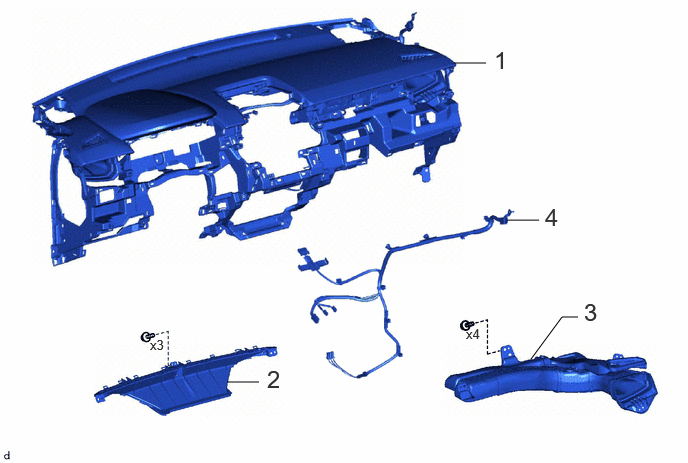

COMPONENTS (REMOVAL)
E454908N03
4.729,0.656 5.063,0.656 false 5.281,2.292 5.615,2.292 false 2.365,3.979 2.698,3.979 false 5.531,3.74 5.854,3.302 5.854,3.302 6.021,3.302 false 1.563,3.51 1.875,3.708 0.313,0.198 10 false x3 4.854,3.396 5.167,3.594 0.313,0.198 10 false x4 5.146,0.479 5.427,0.833 0.281,0.354 18 false 1 2.781,3.802 3.063,4.156 0.281,0.354 18 false 2 5.677,2.115 5.958,2.469 0.281,0.354 18 false 4 6.083,3.104 6.365,3.458 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 INSTRUMENT PANEL SAFETY PAD ASSEMBLY - - - -
2 DEFROSTER NOZZLE ASSEMBLY 55950G - - -
3 NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY 55085 - - -
4 ANTENNA CORD SUB-ASSEMBLY 86101 - - -

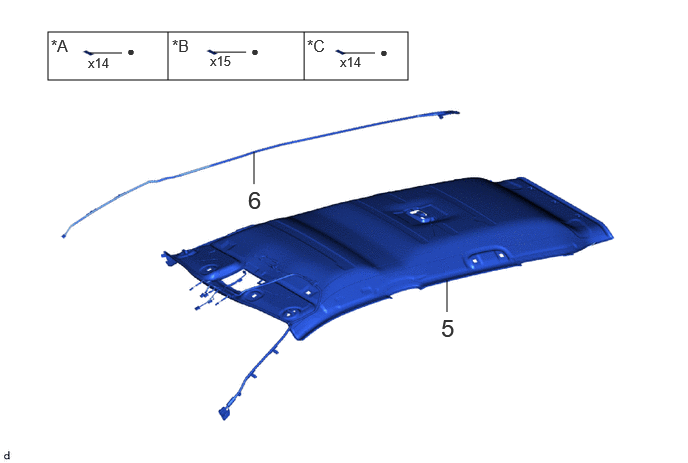

E473603N01
0.5,0.333 4.25,0.833 3.75,0.5 1.75,0.833 1.75,0.333 false 3.167,0.833 3.167,0.333 false 0.938,0.552 1.271,0.552 false 2.646,1.583 2.646,1.917 false 2.229,0.542 2.563,0.542 false 3.573,0.552 3.906,0.552 false 4.656,2.917 4.656,3.25 false 0.531,0.375 0.906,0.615 0.375,0.24 12 false *A 1.792,0.375 2.167,0.615 0.375,0.24 12 false *B 3.198,0.375 3.573,0.615 0.375,0.24 12 false *C 1.323,0.448 1.479,0.646 0.156,0.198 10 false ● 2.615,0.448 2.771,0.646 0.156,0.198 10 false ● 3.958,0.458 4.115,0.656 0.156,0.198 10 false ● 4.594,3.271 4.875,3.625 0.281,0.354 18 false 5 2.583,1.938 2.865,2.292 0.281,0.354 18 false 6 0.917,0.573 1.375,0.771 0.458,0.198 10 false x14 2.188,0.552 2.646,0.75 0.458,0.198 10 false x15 3.542,0.563 4,0.76 0.458,0.198 10 false x14

Procedure Part Name Code
Z101186

Z101188

Z101187

5 ROOF HEADLINING ASSEMBLY 63310 - - -
6 NO. 2 ANTENNA CORD SUB-ASSEMBLY 86101J - - -

*A for Normal Roof *B for Moon Roof
*C for Panoramic Moon Roof - -
● Non-reusable part - -

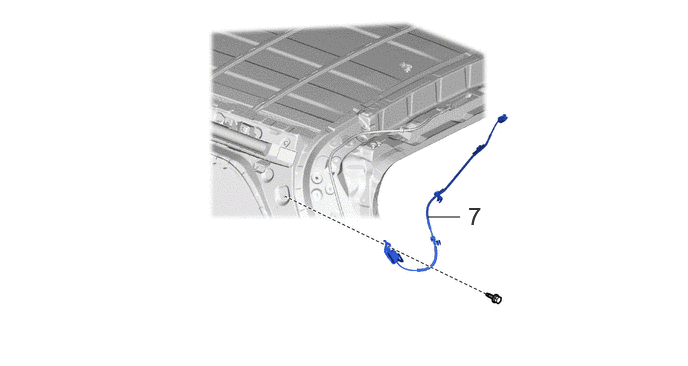

E446133N07
4.458,2.26 4.792,2.26 false 4.875,2.104 5.156,2.458 0.281,0.354 18 false 7

Procedure Part Name Code
Z101186

Z101188

Z101187

7 NO. 3 ANTENNA CORD SUB-ASSEMBLY 86101D - - -

CAUTION / NOTICE / HINT

CAUTION:
B475753

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

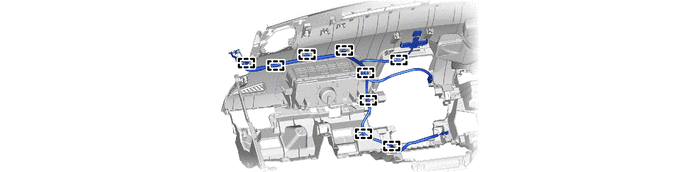

Hide 86101 4.REMOVE ANTENNA CORD SUB-ASSEMBLY

a.
E446114


Hide 86101J 6.REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

a.

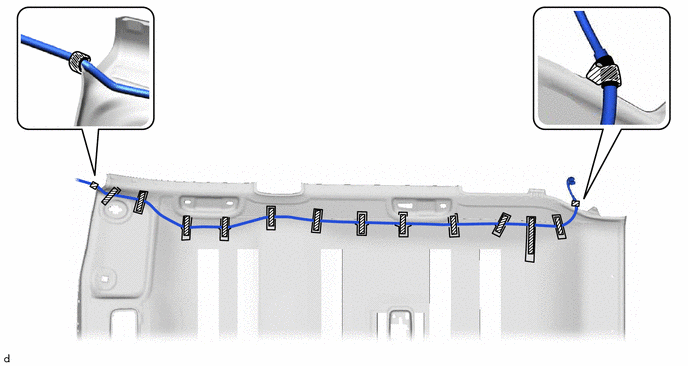

for Normal Roof:

E473604C01
0,0 0,0 false
V100155

Adhesive Tape - -



b.

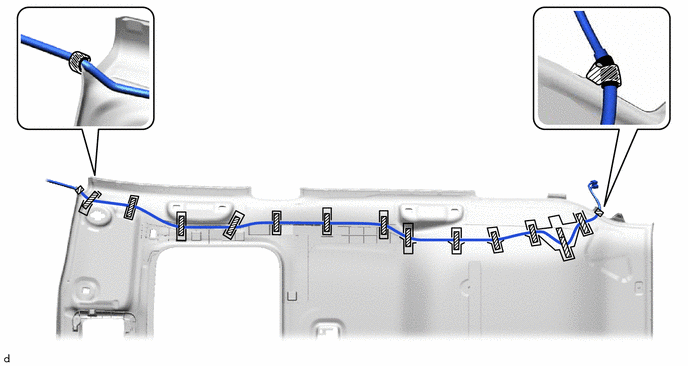

for Moon Roof:

E473605C01
0,0 0,0 false
V100155

Adhesive Tape - -



c.

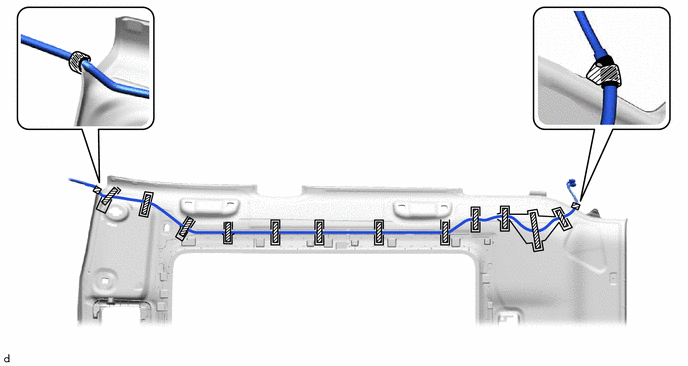

for Panoramic Moon Roof:

E473606C01
0,0 0,0 false
V100155

Adhesive Tape - -

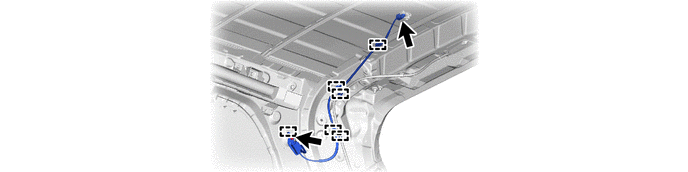

Hide 86101D 7.REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY

a.
E446138
