RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0601796 AIR CONDITIONING SYSTEM(for HEV Model) C

HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for HEV Model)  B140287  Lost Communication with Front Air Outlet Damper Control Servo Motor LIN Missing Message


DESCRIPTION

The air conditioning harness assembly connects the air conditioning amplifier assembly and the No. 1 air conditioning radiator damper servo sub-assembly.

The No. 1 air conditioning radiator damper servo sub-assembly sends damper position information to the air conditioning amplifier assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory
B140287 Lost Communication with Front Air Outlet Damper Control Servo Motor LIN Missing Message Diagnosis Condition:

Ignition switch ON


Malfunction Status:

Error or lost communication with No. 1 air conditioning radiator damper servo sub-assembly


Detection Time:

Continuously for 10 seconds or more


No. 1 air conditioning radiator damper servo sub-assembly Memorized

DTC Detection Condition Combination Table
Vehicle Condition
Pattern 1 Pattern 2
Diagnosis Condition Ignition switch ON ○ ○
Malfunction Error communication with No. 1 air conditioning radiator damper servo sub-assembly ○ -
Lost communication with No. 1 air conditioning radiator damper servo sub-assembly - ○
Detection Time Continuously for 10 seconds or more Continuously for 10 seconds or more
Trip Count 1 trip 1 trip

HINT:

If the conditions of either of these patterns are detected, a DTC will be stored


WIRING DIAGRAM

w/ Rear Air Duct
E521188E13
1.865,1.208 2.177,1.406 0.313,0.198 10 false IC 0.458,2.552 2.365,3.125 1.906,0.573 10 false No. 1 Air Conditioning Radiator Damper Servo Sub-assembly 3.167,2.573 4.708,3.177 1.542,0.604 10 false Air Conditioning Harness Assembly 5.396,2.563 6.969,3.25 1.573,0.688 10 false Air Conditioning Amplifier Assembly 0.76,3.333 3.083,3.677 2.323,0.344 10 false : LIN Communication Line 6.229,0.5 6.542,0.698 0.313,0.198 10 false +B 6.625,1.177 6.938,1.375 0.313,0.198 10 false IC 5.427,0.552 6.198,0.75 0.771,0.198 10 false B BUS 5.427,1.083 5.885,1.281 0.458,0.198 10 false BUS 5.417,1.604 6.188,1.802 0.771,0.198 10 false BUS G 0.677,2.094 1.875,2.375 1.198,0.281 10 false Front Mode

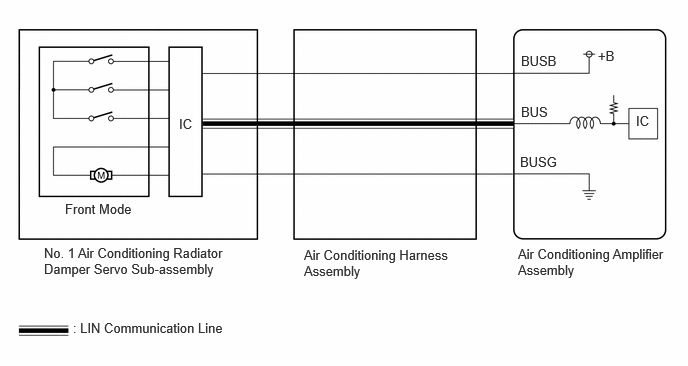

w/o Rear Air Duct
E521188E18
1.865,1.208 2.177,1.406 0.313,0.198 10 false IC 0.458,2.552 2.365,3.125 1.906,0.573 10 false No. 1 Air Conditioning Radiator Damper Servo Sub-assembly 3.167,2.573 4.708,3.177 1.542,0.604 10 false Air Conditioning Harness Assembly 5.396,2.563 6.969,3.25 1.573,0.688 10 false Air Conditioning Amplifier Assembly 0.76,3.333 3.083,3.677 2.323,0.344 10 false : LIN Communication Line 6.229,0.5 6.542,0.698 0.313,0.198 10 false +B 6.625,1.177 6.938,1.375 0.313,0.198 10 false IC 5.427,0.552 6.198,0.75 0.771,0.198 10 false BUSB 5.427,1.083 5.885,1.281 0.458,0.198 10 false BUS 5.417,1.604 6.188,1.802 0.771,0.198 10 false BUSG 0.677,2.094 1.875,2.375 1.198,0.281 10 false Front Mode

PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Air Conditioner > Trouble Codes
50001 450

Result:
Result Proceed to
B142A88 is output A
B142A88 is not output B



A

GO TO DTC B142A88

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING SYSTEM (for HEV Model)>B142A88


B

REPLACE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT>DISASSEMBLY
