HEATING / AIR CONDITIONING AIR CONDITIONING SYSTEM(for HEV Model) B13AA87 Lost Communication with Front Control Rear Air Outlet Damper Control Servo Motor LIN Missing Message
DESCRIPTION
The air conditioning harness assembly connects the air conditioning amplifier assembly and No. 2 air conditioning radiator damper servo sub-assembly.
The No. 2 air conditioning radiator damper servo sub-assembly sends damper position information to the air conditioning amplifier assembly.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Memory |
|---|---|---|---|---|
| B13AA87 | Lost Communication with Front Control Rear Air Outlet Damper Control Servo Motor LIN Missing Message | Diagnosis Condition:
Ignition switch ON Malfunction: Error or open in communication line between air conditioning amplifier assembly and No. 2 air conditioning radiator damper servo sub-assembly Detection Time: Continuously for 10 seconds or more |
No. 2 air conditioning radiator damper servo sub-assembly | Memorized |
| Vehicle Condition | |||
|---|---|---|---|
| Pattern 1 | Pattern 2 | ||
| Diagnosis Condition | Ignition switch ON | ○ | ○ |
| Malfunction | Error in communication line between air conditioning amplifier assembly and No. 2 air conditioning radiator damper servo sub-assembly | ○ | - |
| Open in communication line between air conditioning amplifier assembly and No. 2 air conditioning radiator damper servo sub-assembly | - | ○ | |
| Detection Time | Continuously for 10 seconds or more | Continuously for 10 seconds or more | |
| Trip Count | 1 trip | 1 trip | |
- HINT:
-
If the conditions of either of these patterns are detected, a DTC will be stored.

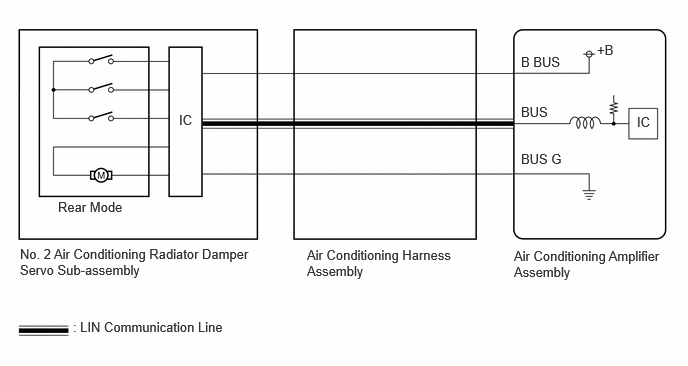

WIRING DIAGRAM
0.208,2.563 2.646,3.01
2.438,0.448
10
false
No. 2 Air Conditioning Radiator Damper Servo Sub-assembly
5.354,2.583 6.938,2.948
1.583,0.365
10
false
Air Conditioning Amplifier Assembly
3.198,2.573 4.771,3.01
1.573,0.438
10
false
Air Conditioning Harness Assembly
0.76,3.323 3.021,3.563
2.26,0.24
10
false
: LIN Communication Line
1.865,1.167 2.104,1.344
0.24,0.177
10
false
IC
6.635,1.188 6.875,1.365
0.24,0.177
10
false
IC
6.219,0.438 6.458,0.615
0.24,0.177
10
false
+B
5.427,0.563 6.073,0.76
0.646,0.198
10
false
B BUS
5.427,1.083 6.073,1.281
0.646,0.198
10
false
BUS
5.427,1.573 6.073,1.771
0.646,0.198
10
false
BUS G
0.604,2.073 1.531,2.375
0.927,0.302
10
false
Rear Mode
PROCEDURE
1.CHECK FOR DTC
a.
Check for DTCs.
- Body Electrical > Air Conditioner > Trouble Codes
- 50001 450
- Result:
Result Proceed to B142A88 is output A B142A88 is not output B
A
GO TO DTC B142A88
B
REPLACE NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
