METER / GAUGE / DISPLAY COMBINATION METER INSTALLATION
CAUTION / NOTICE / HINT
- NOTICE:
- ·
After replacing the combination meter assembly, make sure to perform update ECU security key.
·After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
CAUTION / NOTICE / HINT

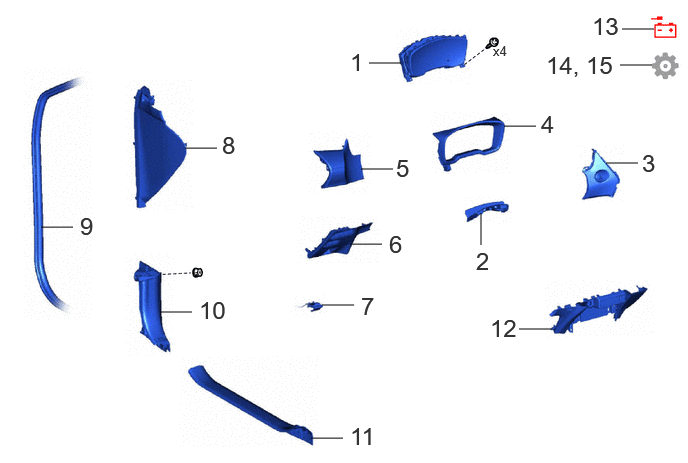

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| 2 | INSTRUMENT CLUSTER FINISH PANEL RETAINER | 55416C | - | - | - |
| 3 | CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL | 55413D | - | - | - |
| 4 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C | - | - | - |
| 5 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | 55403F | - | - | - |
| 6 | LOWER INSTRUMENT PANEL FINISH PANEL | 55432B | - | - | - |
| 7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 8 | NO. 1 INSTRUMENT SIDE PANEL | 55317E | - | - | - |
| 9 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | 62312B | - | - | - |
| 10 | COWL SIDE TRIM SUB-ASSEMBLY LH | 62112A | - | - | - |
| 11 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
| 12 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434F | - | - | - |
| 13 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 14 | UPDATE ECU SECURITY KEY | - | - | - | ( 202307,999999,_58,_112289,_0501082,RM100000002BH9N_01_0125,)
|
| 15 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - | (202307,999999,_58,_112289,_0501082,RM100000002BH9N_01_0121,)
|
PROCEDURE
83100
1.INSTALL COMBINATION METER ASSEMBLY
55416C
2.INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER
55413D
3.INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
55410C
4.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
55403F
5.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
55432B
6.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
53601
7.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
55317E
8.INSTALL NO. 1 INSTRUMENT SIDE PANEL
62312B
9.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
62112A
10.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
67914B
11.INSTALL FRONT DOOR SCUFF PLATE LH
55434F
12.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
13.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for M20A-FKS, M20C-FKS, M20E-FKS:
for M20F-FXS, M20G-FXS:
14.UPDATE ECU SECURITY KEY
15. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
