NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(Production Date from 2023/04)  B15DB87  Telematics Transceiver Missing Message


DESCRIPTION

When the radio and display receiver assembly cannot detect the telematics transceiver, this DTC will be stored.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B15DB87 Telematics Transceiver Missing Message When 90 seconds has elapsed after turning the ignition switch to ON and the telematics transceiver cannot be detected, the telematics transceiver is judged to be disconnected after comparison with the past USB connected devices information.
(2 trip detection logic)
·

Telematics transceiver

·

Radio and display receiver assembly

·

Harness or connector


Navigation System A

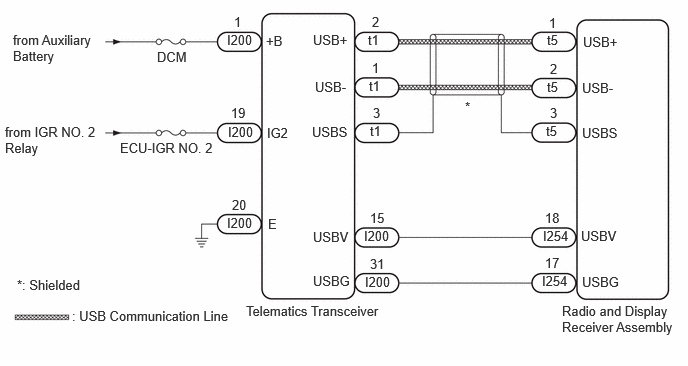

WIRING DIAGRAM

E499350E09
5.854,3.156 7.052,3.688 1.198,0.531 10 false Radio and Display Receiver Assembly 2.563,3.156 4.208,3.531 1.646,0.375 10 false Telematics Transceiver 0.75,3.208 2.635,3.51 1.885,0.302 10 false : USB Communication Line 0.135,0.333 1.021,0.854 0.885,0.521 10 false from Auxiliary Battery 0.052,1.292 1.031,1.896 0.979,0.604 10 false from IGR NO. 2 Relay 1.25,1.458 2.333,1.75 1.083,0.292 10 false ECU-IGR NO. 2 1.635,0.51 2.667,0.708 1.031,0.198 10 false DCM 3.833,0.333 4.188,0.594 0.354,0.26 10 false t1 3.792,2.375 4.417,2.646 0.625,0.271 10 false I200 2.771,0.344 3.313,0.667 0.542,0.323 10 false +B 2.781,1.302 3.323,1.625 0.542,0.323 10 false IG2 2.792,2.25 3.125,2.573 0.333,0.323 10 false E 3.26,0.333 3.813,0.625 0.552,0.292 10 false USB+ 3.281,0.823 3.833,1.115 0.552,0.292 10 false USB- 3.25,1.292 3.802,1.583 0.552,0.292 10 false USBS 6.052,2.375 6.604,2.667 0.552,0.292 10 false USBV 3.26,2.844 3.813,3.135 0.552,0.292 10 false USBG 6.063,2.854 6.615,3.146 0.552,0.292 10 false USBG 6.073,0.354 6.625,0.646 0.552,0.292 10 false USB+ 6.063,0.833 6.615,1.125 0.552,0.292 10 false USB- 6.063,1.302 6.615,1.594 0.552,0.292 10 false USBS 4.844,1.031 5.198,1.271 0.354,0.24 10 false * 3.26,2.385 3.813,2.677 0.552,0.292 10 false USBV 2.438,0.146 2.854,0.479 0.417,0.333 10 false 1 2.406,1.094 2.823,1.427 0.417,0.333 10 false 19 2.417,2.052 2.833,2.385 0.417,0.333 10 false 20 3.875,0.625 4.292,0.958 0.417,0.333 10 false 1 3.875,0.146 4.292,0.479 0.417,0.333 10 false 2 3.885,1.094 4.302,1.427 0.417,0.333 10 false 3 3.854,2.188 4.167,2.417 0.313,0.229 10 false 15 3.854,2.667 4.271,3 0.417,0.333 10 false 31 5.677,2.188 6.031,2.375 0.354,0.188 10 false 18 5.677,2.656 5.958,2.833 0.281,0.177 10 false 17 5.719,0.156 6.135,0.49 0.417,0.333 10 false 1 5.729,0.635 6.146,0.969 0.417,0.333 10 false 2 5.729,1.094 6.146,1.427 0.417,0.333 10 false 3 3.802,2.854 4.333,3.052 0.531,0.198 10 false I200 2.365,2.24 3,2.5 0.635,0.26 10 false I200 2.375,1.292 2.875,1.49 0.5,0.198 10 false I200 2.365,0.333 2.854,0.542 0.49,0.208 10 false I200 3.844,0.813 4.198,1.073 0.354,0.26 10 false t1 3.854,1.281 4.208,1.542 0.354,0.26 10 false t1 5.698,0.823 6.052,1.083 0.354,0.26 10 false t5 5.646,2.844 6.104,3.042 0.458,0.198 10 false I254 5.656,2.375 6.115,2.573 0.458,0.198 10 false I254 0.177,2.885 1.208,3.125 1.031,0.24 10 false *: Shielded 5.698,0.333 6.052,0.594 0.354,0.26 10 false t5 5.688,1.281 6.042,1.542 0.354,0.26 10 false t5

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (Production Date from 2023/04)>PRECAUTION



HINT:
·

The Telematics System performs communication between devices via USB communication. If a malfunction such as a short in a communication line, short to +B or short to ground occurs in the USB circuit, communication will stop and the Telematics System will not operate correctly.

·

This DTC may be stored due to environmental reasons such as electrical noise or interference.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - POWER SOURCE AND BODY GROUND)

Pre-procedure1

a.

Disconnect the I200 telematics transceiver connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I200-20 (E) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I200-1 (+B) - I200-20 (E) IG OFF 11 to 14 V
I200-19 (IG2) - I200-20 (E) IG ON 11 to 14 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

Pre-procedure1

a.

Disconnect the I254 radio and display receiver assembly connector.


b.

Disconnect the I200 telematics transceiver connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I254-18 (USBV) - I200-15 (USBV) Always Below 1 Ω
I254-17 (USBG) - I200-31 (USBG) Always Below 1 Ω
I254-18 (USBV) - Body ground Always 10 kΩ or higher
I254-17 (USBG) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Pre-procedure1

d.

None



OK

3.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY (USBV, USBG)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY (USBV, USBG)

Pre-procedure1

a.

With the radio and display receiver assembly connectors connected, disconnect the I200 telematics transceiver connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I200-31 (USBG) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I200-15 (USBV) - I200-31 (USBG) IG ON 3 V or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


4.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

Pre-procedure1

a.

Disconnect the t5 radio and display receiver assembly connector.


b.

Disconnect the t1 telematics transceiver connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
t1-2 (USB+) - t5-1 (USB+) Always Below 1 Ω
t1-1 (USB-) - t5-2 (USB-) Always Below 1 Ω
t1-3 (USBS) - t5-3 (USBS) Always Below 1 Ω
t1-2 (USB+) - Body ground Always 10 kΩ or higher
t1-1 (USB-) - Body ground Always 10 kΩ or higher
t1-3 (USBS) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

5.INSPECT TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

6.CLEAR DTC
6.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs
50002 496

Result:
Proceed to
NEXT



NEXT

7.CHECK FOR DTC
7.CHECK FOR DTC

Pre-procedure1

a.

Turn the ignition switch off.


b.

Turn the ignition switch to ON and wait for 90 seconds.


c.

Turn the ignition switch off.


d.

Turn the ignition switch to ON and wait for 90 seconds.


Procedure1

e.

Recheck for DTCs and check that no DTCs are output.

Body Electrical > Navigation System > Trouble Codes
50001 496
Result:
Result Proceed to
DTCs are not output A
DTCs are output B



Post-procedure1

f.

None



A

END (TELEMATICS TRANSCEIVER IS DEFECTIVE)

B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
