TELEMATICS TELEMATICS TRANSCEIVER REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

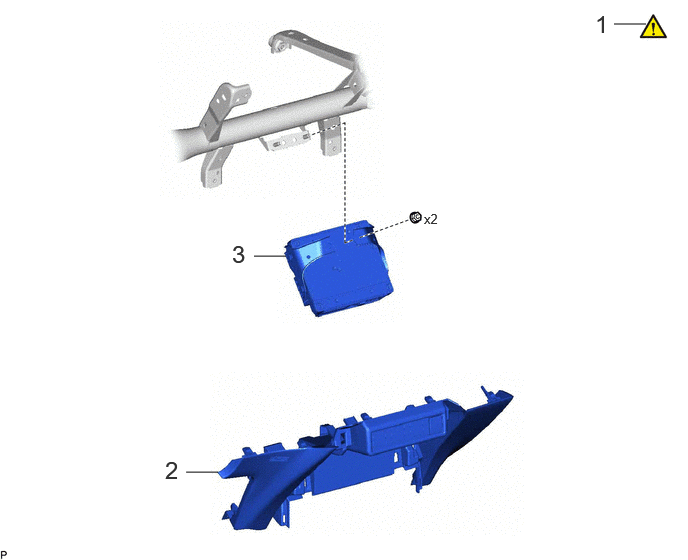

6.396,0.25 6.729,0.25 false 2.646,2.667 2.979,2.667 false 1.938,4.917 2.271,4.917 false 6.198,0.104 6.479,0.458 0.281,0.354 18 false 1 1.719,4.75 2,5.104 0.281,0.354 18 false 2 2.417,2.5 2.698,2.854 0.281,0.354 18 false 3 4.417,2.198 4.729,2.396 0.313,0.198 10 false x2

Procedure		Part Name Code
1	PRECAUTION	-	(202201,999999,_56,_115231,_0510825,RM1000000020B6F_01_0132,)	-	-
2	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434F	-	-	-

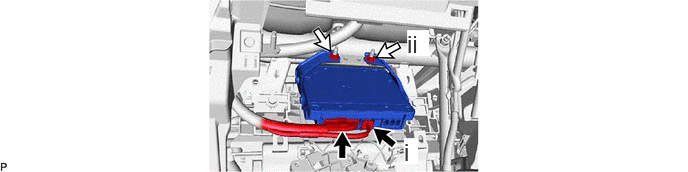

3	TELEMATICS TRANSCEIVER WITH BRACKET	-	-	-	-

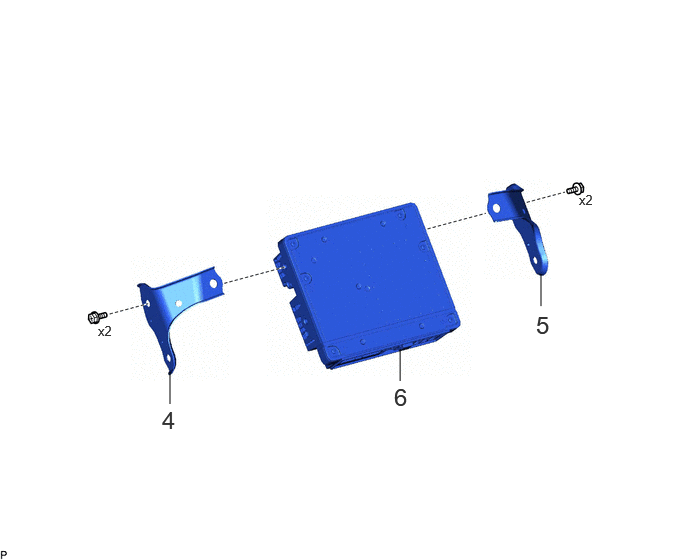

1.771,3.875 1.771,4.208 false 4.167,3.635 4.167,3.969 false 5.635,2.854 5.635,3.188 false 1.021,3.365 1.26,3.594 0.24,0.229 10 false x2 6.031,2 6.271,2.229 0.24,0.229 10 false x2 1.688,4.229 1.969,4.583 0.281,0.354 18 false 4 5.583,3.24 5.865,3.594 0.281,0.354 18 false 5 4.104,3.99 4.385,4.344 0.281,0.354 18 false 6

Procedure		Part Name Code

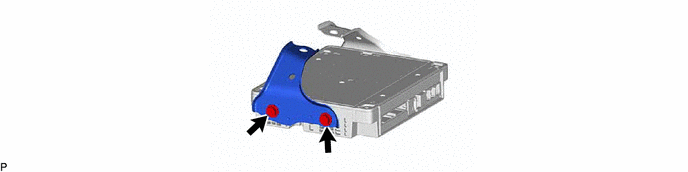

4	NO. 2 TELEPHONE BRACKET	86719B	-	-	-

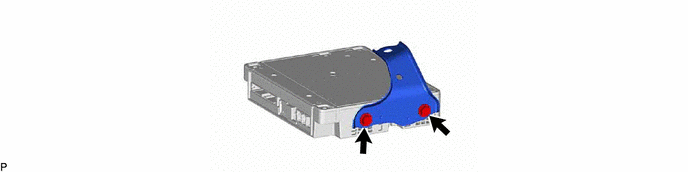

5	NO. 1 TELEPHONE BRACKET	86719A	-	-	-
6	TELEMATICS TRANSCEIVER	86741A	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during telematics transceiver removal/installation are shown below.
