When the sliding roof ECU (sliding roof drive gear assembly) detects a motor malfunction and the sliding roof operation is stopped, DTC B234149 is stored.
When the sliding roof ECU (sliding roof drive gear assembly) detects a gear position malfunction and the sliding roof operation is stopped, DTC B234407 is stored.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B234149 | Sliding Roof Motor Internal Electronic Failure | Sensor (motor) failure (When the sliding roof ECU (sliding roof drive gear assembly) enters fail-safe mode due to a problem with the motor) | ·
Sliding roof ECU (sliding roof drive gear assembly) ·
Map light assembly ·
No. 2 roof wire ·
Wire harness or connector |
| B234407 | Sliding Roof Position Mechanical Failure | Position failure (When the sliding roof ECU (sliding roof drive gear assembly) enters fail-safe mode due to a problem with the gear position) | ·
Sliding roof ECU (sliding roof drive gear assembly) ·
Map light assembly ·
No. 2 roof wire ·
Wire harness or connector |
If the sliding roof ECU (sliding roof drive gear assembly) is removed and reinstalled or replaced, the sliding roof ECU (sliding roof drive gear assembly) must be initialized.
The panoramic moon roof system uses the LIN communication system. First, confirm that there are no malfunctions in the LIN communication system. Refer to How to Proceed with Troubleshooting.
Check the panoramic moon roof auto operation.
Auto operation operates normally.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Clear the DTCs.
| Proceed to |
|---|
| NEXT |
NEXT
Check for DTCs.
| Result | Proceed to |
|---|---|
| B234149 and B234407 are not output | A |
| B234149 or B234407 is output | B |
A
B
Check that the sliding roof ECU (sliding roof drive gear assembly) can be initialized.
Sliding roof ECU (sliding roof drive gear assembly) can be initialized.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Clear the DTCs.
| Proceed to |
|---|
| NEXT |
NEXT
Check for DTCs.
| Result | Proceed to |
|---|---|
| B234149 and B234407 are not output | A |
| B234149 or B234407 is output | B |
A
B
Perform the Active Test according to the display on the GTS.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Sliding Roof Open | Sliding roof open activate | OFF/ON | - |
| Sliding Roof Close | Sliding roof close activate | OFF/ON | - |
| Tester Display |
|---|
| Sliding Roof Open |
| Tester Display |
|---|
| Sliding Roof Close |
Slide roof is operated using GTS.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Read the Data List according to the display on the GTS.
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Roof OPEN Switch | Sliding roof open switch | OFF or ON | OFF: Sliding roof open switch not pressed
ON: Sliding roof open switch pressed |
- |
| Roof CLOSE Switch | Sliding roof close switch | OFF or ON | OFF: Sliding roof close switch not pressed
ON: Sliding roof close switch pressed |
- |
| VENT Switch | Sliding roof tilt switch | OFF or ON | OFF: Sliding roof tilt switch not pressed
ON: Sliding roof tilt switch pressed |
- |
| Tester Display |
|---|
| Roof OPEN Switch |
| Roof CLOSE Switch |
| VENT Switch |
The GTS display changes according to switch operation as shown in the table.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| Proceed to |
|---|
| OK |
| NG |
OK
NG

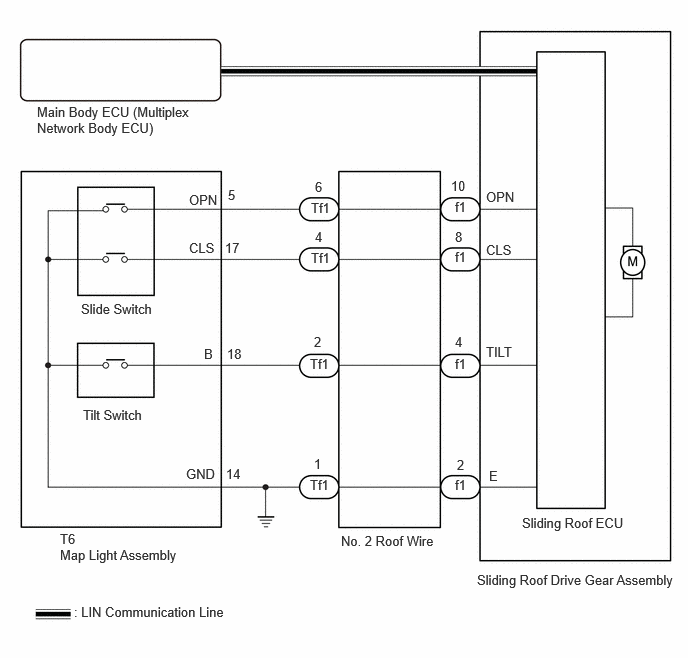

Disconnect the f1 sliding roof ECU (sliding roof drive gear assembly) connector.
Disconnect the Tf1 No. 2 roof wire connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| f1-10 (OPN) - Tf1-6 | Always | Below 1 Ω |
| f1-8 (CLS) - Tf1-4 | Always | Below 1 Ω |
| f1-4 (TILT) - Tf1-2 | Always | Below 1 Ω |
| f1-2 (E) - Tf1-1 | Always | Below 1 Ω |
| f1-10 (OPN) or Tf1-6 - Body ground | Always | 10 kΩ or higher |
| f1-8 (CLS) or Tf1-4 - Body ground | Always | 10 kΩ or higher |
| f1-4 (TILT) or Tf1-2 - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the T6 map light assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| T6-5 (OPN) - Tf1-6 | Always | Below 1 Ω |
| T6-17 (CLS) - Tf1-4 | Always | Below 1 Ω |
| T6-18 (B) - Tf1-2 | Always | Below 1 Ω |
| T6-14 (GND) - Body ground | Always | Below 1 Ω |
| Tf1-1 (GND) - Body ground | Always | Below 1 Ω |
| T6-5 (OPN) or f1-10 (OPN) - Body ground | Always | 10 kΩ or higher |
| T6-17 (CLS) or Tf1-4 - Body ground | Always | 10 kΩ or higher |
| T6-18 (B) or Tf1-2 - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
